MODERNER KTQ-200 adjustable Applicator 0~5mm/20cm

SE
Wet film thickness 0~5000μm, Spreader width 200mm, accuracy +/- 10μm, aluminum alloy material, is an adjustable Film thickness Film Applicator.
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Moderner KTQ-200 Micrometer Film ApplicatorSPEC

Moderner KTQ-200 Micrometer Film ApplicatorDetails

Moderner KTQ-200 Micrometer Film ApplicatorPacking list

SKU
NB004311
type
adjustable
WFT
0~5000μm
application width
200mm
Accuracy
±10μm
material
aluminum alloy
Dimension
214*76*100mm
Net Weight
500g
KTQ-200
Micrometer Film Applicator
Wet film thickness 0~5000μm, Spreader width 200mm, accuracy +/- 10μm, aluminum alloy material, is an adjustable Film thickness Film Applicator.
MODERNER KTQ-200 adjustable Applicator 0~5mm/20cm Picture

Introduction

MODERNER KTQ-II adjustable Film Applicator is a Film Applicator that can adjust the thickness of the coating film. There are two differentiators above the adjustable Film Applicator. By adjusting the two differentiators of the Film Applicator, it can move up and down. Adjust the scraper below to control the gap, which is the thickness of the final coating. The scraper gap is in units of 10 microns, and the coating film ranges from 0 to 3500 and 0 to 5000. Different adjustable Film Applicators have different dimensions and weights.

Specifications

modelCoating width
KTQ-5050mm
KTQ-100100mm
KTQ-150150mm
KTQ-200200mm
Other parameters
Film thickness range0~5000μm
precision10μm

operation method

1) Before using the adjustable Film Applicator, you should check whether it is adjusted to the "0" position. If it is not at the "0" position, you should adjust the adjustable Film Applicator to "0" on the parallel plate. When adjusting to "0", rotate The two differentiators above make the bottom of the scraper and the bottom of the two side plates on the same plane. At this time, the counts of the two differentiators should be the same, and the "0" scale at the upper end of the differentiator is aligned with the scale line at the lower end.

2) Rotate the differentiator to adjust the scraper to the required gap, that is, the required coating thickness. Then hold the two sides of the board and scrape on the sample board to prepare the required coating.

3) After using the Film Applicator, wash and dry the Film Applicator with an appropriate solvent.

4) Adjust the scraper so that the spring is in a relaxed state to reduce the fatigue of the spring. Store the adjustable Film Applicator in a wooden box to protect it from moisture.

Pictures

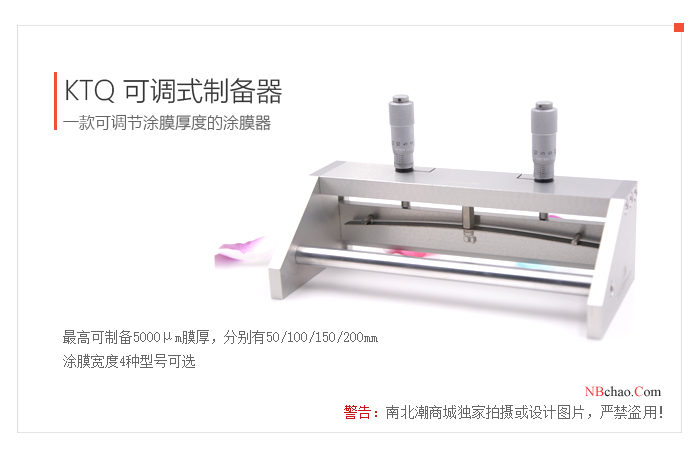

Image of MODERNER KTQ-200 Micrometer Applicator

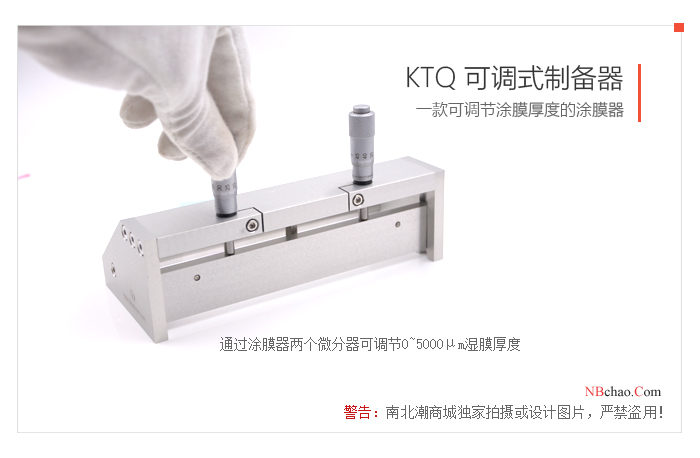

MODERNER KTQ-200 adjustable preparer differentiator detail drawing

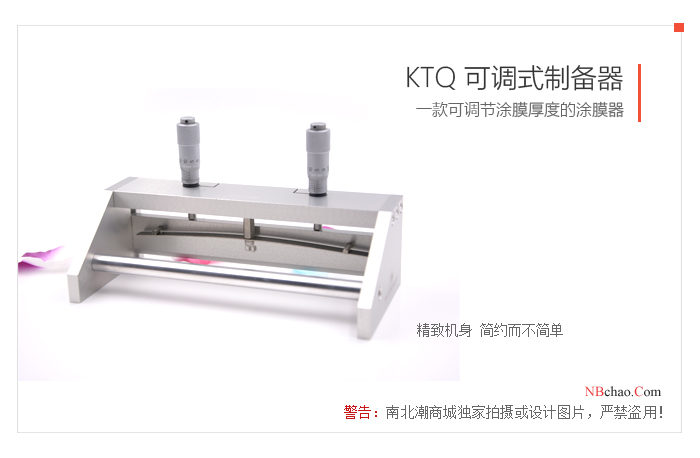

Front View of MODERNER KTQ-200 Adjustable Preparer

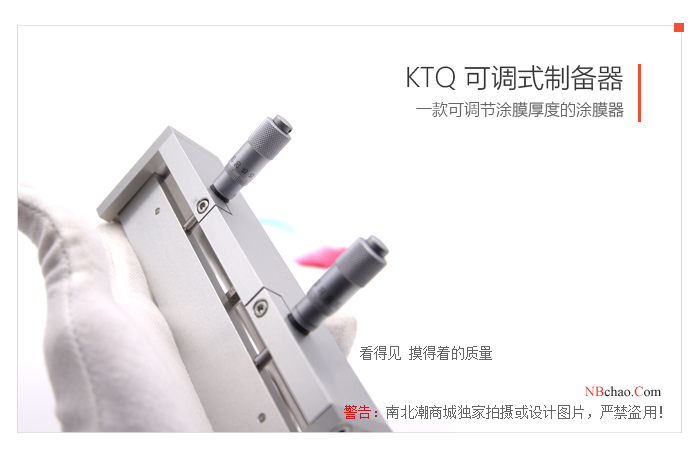

MODERNER KTQ-200 Micrometer Applicator details


FAQ
QHow long is the shelf life of the film applicator?
A 1 year.
QIf you want to Spreader a sticky liquid on the substrate, similar to glue, should you choose a stick or a doctor blade?
A Viscosity is relatively high, flowability is not very good, it is recommended to choose adjustable coating applicator
QCan you customize the scraper?
A OK
QAdjustable Applicator is stainless steel
A This one is aluminum alloy.
QWe now want to Spreader a sticky liquid like glue on the substrate, right? Should you choose a stick or a doctor blade? PTFE Plastic film
A Viscosity is relatively high, flowability is not very good, it is recommended to choose adjustable coating applicator
QThe wet film thickness is 150-200um, and the viscosity is relatively large. Is this suitable?
A Hello, it's OK.
QIs the Micrometer Film Applicator made of stainless steel?
A Hello, the modern KTQ adjustable Applicator is made of aluminum.
QHow many mm is the adjustable Applicator?
A Hello, one turn is half a mm, and two turns are 1mm.
QCan this adjustable Film Applicator be used to scrape PVDF film? Calcium alginate colloid.
A Hello, it's OK.
QWhat is the adjustable film thickness range of KTQ-200 Applicator?
A Hello, it is 0~ 5000μm.
