MODERNER KTQ-150 adjustable Applicator KTQ Film Applicator 0~5mm/15cm

SE
Adjustable, Film thickness 0~5000μm, Spreader width 150mm, Spreader accuracy +/- 10μm, aluminum alloy material.
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Moderner KTQ-150 Micrometer Film ApplicatorSPEC

Moderner KTQ-150 Micrometer Film ApplicatorDetails

Moderner KTQ-150 Micrometer Film ApplicatorPacking list

SKU
NB004312
type
adjustable
WFT
0~5000μm
application width
150mm
Accuracy
±10μm
material
aluminum alloy
Dimension
164*76*100mm
Net Weight
450g
KTQ-150
Micrometer Film Applicator
Adjustable, Film thickness 0~5000μm, Spreader width 150mm, Spreader accuracy +/- 10μm, aluminum alloy material.
MODERNER KTQ-150 adjustable Applicator KTQ Film Applicator 0~5mm/15cm Picture

Introduction

MODERNER KTQ-II adjustable Film Applicator is a Film Applicator that can adjust the thickness of the coating film. There are two differentiators above the adjustable Film Applicator. By adjusting the two differentiators of the Film Applicator, it can move up and down. Adjust the scraper below to control the gap, which is the thickness of the final coating. The scraper gap is in units of 10 microns, and the coating film ranges from 0 to 3500 and 0 to 5000. Different adjustable Film Applicators have different dimensions and weights.

Specifications

modelCoating width
KTQ-5050mm
KTQ-100100mm
KTQ-150150mm
KTQ-200200mm
Other parameters
Film thickness range0~5000μm
precision10μm

operation method

1) Before using the adjustable Film Applicator, you should check whether it is adjusted to the "0" position. If it is not at the "0" position, you should adjust the adjustable Film Applicator to "0" on the parallel plate. When adjusting to "0", rotate The two differentiators above make the bottom of the scraper and the bottom of the two side plates on the same plane. At this time, the counts of the two differentiators should be the same, and the "0" scale at the upper end of the differentiator is aligned with the scale line at the lower end.

2) Rotate the differentiator to adjust the scraper to the required gap, that is, the required coating thickness. Then hold the two sides of the board and scrape on the sample board to prepare the required coating.

3) After using the Film Applicator, wash and dry the Film Applicator with an appropriate solvent.

4) Adjust the scraper so that the spring is in a relaxed state to reduce the fatigue of the spring. Store the adjustable Film Applicator in a wooden box to protect it from moisture.

Pictures

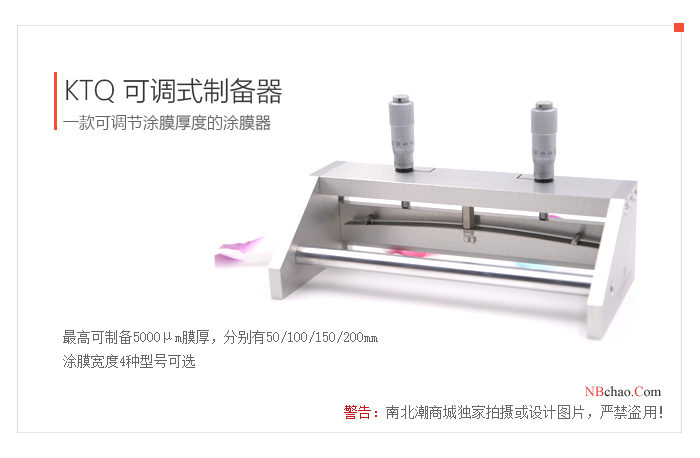

MODERNER KTQ-150 Adjustable Preparer Appearance

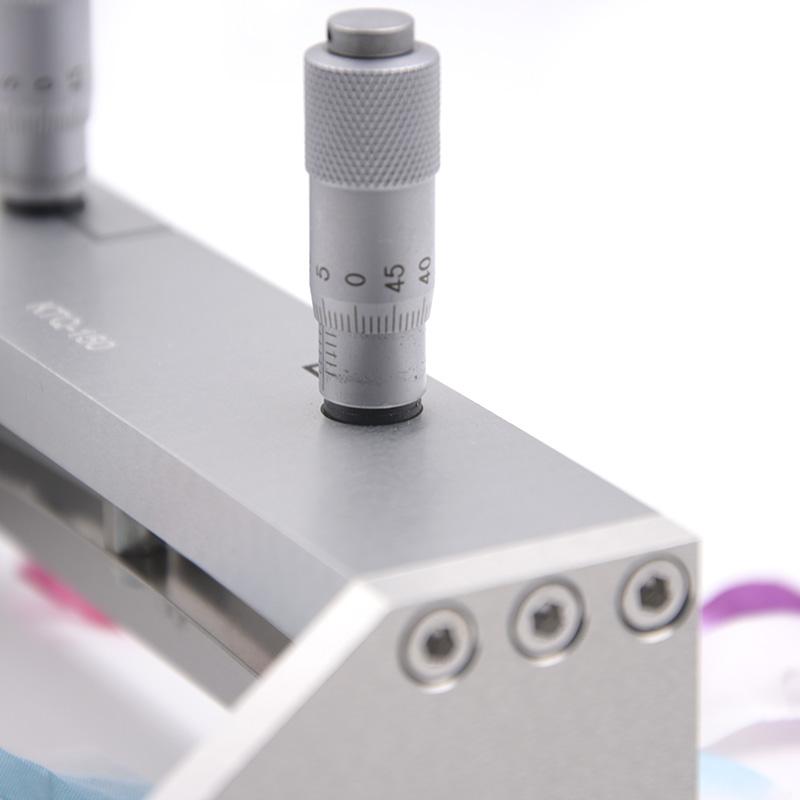

MODERNER KTQ-150 adjustable preparer differentiator detail drawing

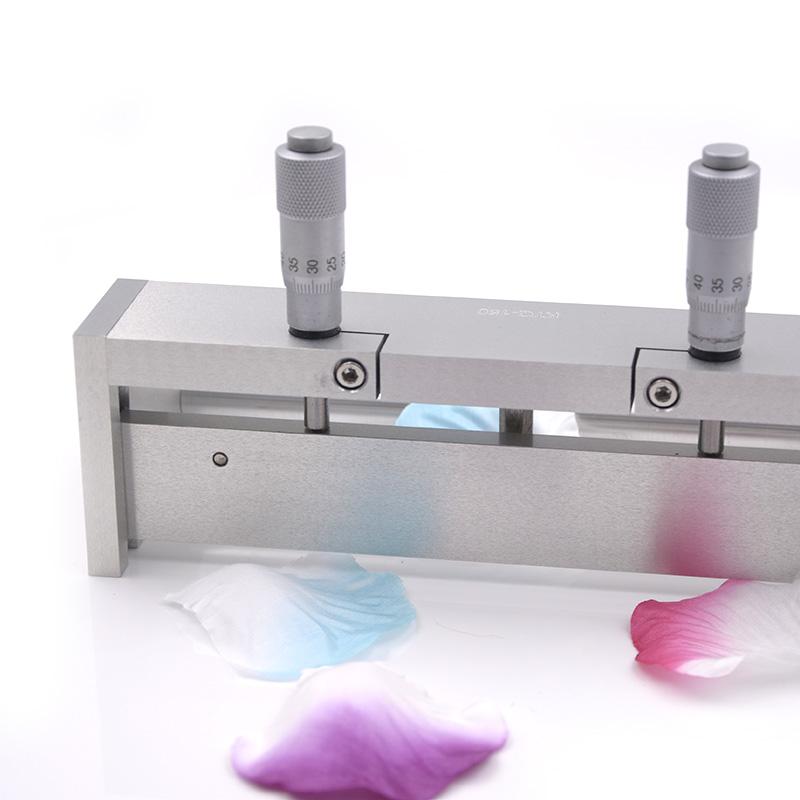

MODERNER KTQ-150 Adjustable Preparer Front View

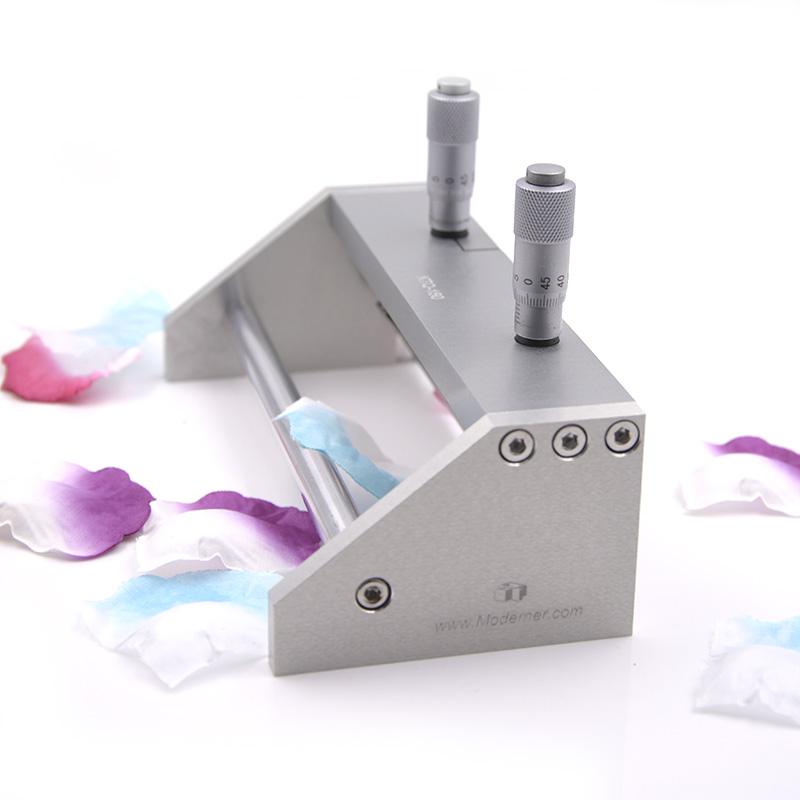

MODERNER KTQ-150 Micrometer Applicator details


FAQ
QHow many microns is this one turning around?
A This one has a range of 5 microns. One lap from 0 to 0 is 500um.
QCan perovskite solar cells be scratched?
A Yes. If the film is thinner and the accuracy is higher, you can use a wire rod.
QAsk the coating applicator, how many microns are suitable for scraping latex paint.
A How thick the film is expected to be, latex paint can be considered adjustable
QHow many mm is the adjustable Applicator?
A Hello, one turn is half a mm, and two turns are 1mm.
QDoes the MODERNER Micrometer Film Applicator meet the GB1727 standard?
A The KTQ-150 Micrometer Film Applicator can refer to
QCan this differential film be coated with a film thickness of 10 um or less?
A No, the scale interval of the differentiator is 10 μm, and the ultra-thin Spreader recommends using a wire rod.
QTo make perovskite solar cells, you need to make a film of a certain thickness. Is this instrument okay?
A Yes, this series of Micrometer Film Applicators can prepare films from 0 to 5000 μm, which are suitable within this range.
QHello, what is the material of the film just now, stainless steel or aluminum alloy?
A Hello, this adjustable Film Applicator is made of aluminum alloy!
QHow does this Micrometer Film Applicator control the coated Film thickness?
A Hello, it is mainly to adjust the two differentiators on the film device, so that the gap of the following Spreader scraper can be adjusted up and down. This gap is the final decision of the film thickness of the coating, but the coating thickness range is between 0 and 5000 microns.
