Brand：TaiSiTe
Model：TDZ-L2215L (with program mode)

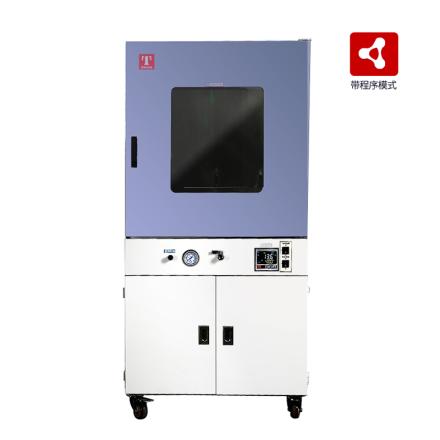

Name：Vertical Electric Vacuum Oven
Specifications
| Heating mode | Sheathed heating |
| Temperature range | RT+10~250°C |
| Use vacuum range | ＜133PA |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±1℃ |
| Chamber material | Good 304 stainless steel |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Intracavity Shelf Heater |
| Viewing Window | Bulletproof Tempered Glass |
| Vacuum meter | Pointer |
| Rated power | 6 kw |
| thermostat | Temperature Control mode |
| Automatic vacuum degree representation | without |
| Vacuum instrument | Pointer |
| Timer | 0~9999Min (with Timer waiting) |
| Run function | Fixed value operation, Timer operation, automatic stop, power-off memory, Sensors deviation correction, self-tuning, internal parameter locking |
| Program Mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable |
| Temperature sensor | pt100 |
| Interior size | 560*600*640mm |
| Dimensions | 720x840x1650mm |
| Volume | 215 L |
| Load per shelf | 15kg |
| Shelf (std.) | 3pcs |
| Vacuum pump pumping speed | 4M3/h（L/S） |
| suction port | F16mm |
| vacuum pump | Standard |
| Power | AC380/50Hz 6.0 A |
| Net Weight | 175kg |
| Safety Devices | Over-temperature alarm, overcurrent and overload protection, fast fuse, grounding protection |
| Gross Weight | 145Kg |
Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
After-sales instructions
None
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/43128/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
