Brand：TaiSiTe
Model：TDZZ-L2215L (with program mode)

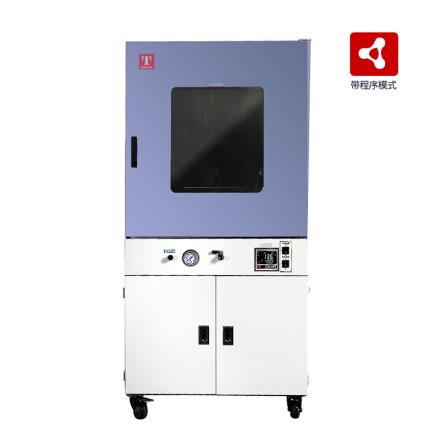

Name：Vertical Electric Vacuum Oven
Specifications
| Heating mode | Sheathed heating |
| Temperature range | RT+10~250°C |
| Use vacuum range | 100p～101Kpa |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±1℃ |
| Chamber material | Good 304 stainless steel |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Heating tube |
| Viewing Window | Bulletproof Tempered Glass |
| Vacuum meter | digital display |
| Rated power | 3.6kw |
| thermostat | Color liquid crystal PID operation |
| Timer | 0~9999Min (with Timer waiting) |
| Run function | Fixed value operation, Timer operation, automatic stop, power-off memory, Sensors deviation correction, self-tuning, internal parameter locking |
| Program Mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable |
| Temperature sensor | pt100 |
| Interior size | 560*600*640mm |
| Dimensions | 720x840x1650mm |
| Volume | 215 L |
| Load per shelf | 15kg |
| Shelf (std.) | 4pcs |
| Vacuum interface | Quick connect KF25 interface (stainless steel bellows) |
| vacuum pump | Standard |
| Power | AC380/50Hz 6.0 A |
| Safety Devices | Over-temperature alarm, overcurrent and overload protection, fast fuse, grounding protection |
| Vacuum Meter | 5-Segment 5-cycle programming, automatic control and hold |
Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
After-sales instructions
None
