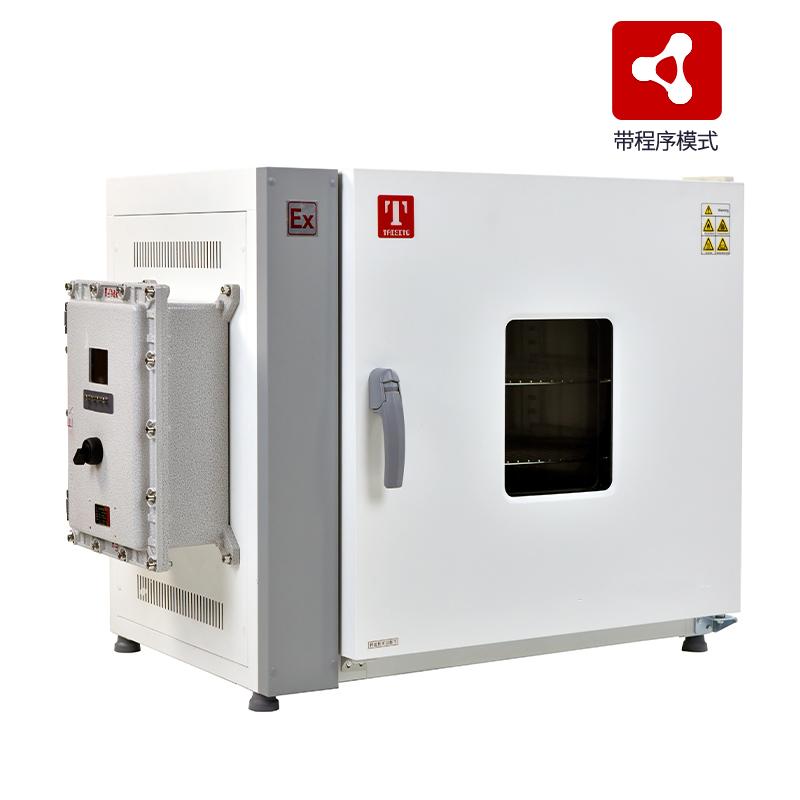

TAISITE TEX-71WG-25L Programmable explosion-proof Forced Air Drying Oven 71L explosion-proof EX d e mb IIB T4 Gb
TEX-71WG-25L (with program mode)
TaiSiTe TEX-71WG-25L (with program mode) Explosion-proof Forced Air Drying OvenSPEC
TaiSiTe TEX-71WG-25L (with program mode) Explosion-proof Forced Air Drying OvenDetails
TaiSiTe TEX-71WG-25L (with program mode) Explosion-proof Forced Air Drying OvenPacking list
- SKU
- NB043131
- Explosion-proof level
- EX d e mb IIB T4 Gb
- Door opening method
- Single door
- Temperature range
- RT+10~250°C
- Temperature Resolution
- 0.1℃
- Temperature Fluctuation
- ±1℃
- Temperature Uniformity
- ±2.5%
- Fan
- Explosion-proof fan
- Enclosure Material
- Cold rolled steel plate, surface resistance painting
- Thermal insulation material
- aluminum silicate fiber
- Heating mode
- Explosion-proof stainless steel heating tube (explosion-proof qualification)
- Rated power
- 1.6 kw
- Exhaust port
- Inner diameter 30mm, top mounted
- Control box
- Explosion-proof qualification box centralized explosion-proof design
- Temperature representation
- LCD display (flameproof button)
- Timer
- 0~9999Min (with Timer waiting)
- Run function
- Fixed value operation, Timer operation, automatic stop
- Program Mode
- Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable
- Temperature sensor
- 2 pt100 (explosion-proof qualification), 1 control and 1 prevention
- blower
- Explosion-proof special motor (with explosion-proof qualification)
- switch
- Explosion-proof switch (with explosion-proof qualification)
- External connection
- Adopt explosion-proof torsion pipe (explosion-proof qualification)
- Power cord
- Explosion-proof flexible connection, explosion-proof connection plug.
- Additional features
- Deviation correction, menu button lock, power outage compensation, power outage memory
- Safety Devices
- Over-rise protection, leakage current protection, Independent Overtemperature Protection protector (built in the explosion-proof control box, the highest temperature limit).
- Alarm function
- Over-temperature alarm
- Interior size
- 450*350*450mm
- Volume
- 71L
- Load per shelf
- 15kg
- Shelf (std.)
- 2pcs
- Power
- AC220/50-60Hz,7.3A
- Optional accessories
- Shelf, RS485 interface, printer, recorder, external communication, remote control, programmed temperature Controller, unlimited SMS alarm, U disk data storage.
First, product features
This product adopts explosion-proof type, pouring and other composite explosion-proof technology treatment, equipment and electrical appliances adopt overall explosion-proof technology, explosion-proof control box, centralized protection, to prevent the leakage of high temperature and static electricity, sparks and other unsafe factors.
The inner liner is made of stainless steel, which is clean and not easy to pollute.
The box is made of cold-rolled steel plate and coated with surface resistance.
It is heated by explosion-proof 304 stainless steel heating tube.
Explosion-proof fan, explosion-proof sensor, explosion-proof structure design.
Color LCD controller, accurate temperature control.
The outer door is equipped with tempered glass, which is convenient to check the experimental status at any time.
Convenient operation, fixed value operation, timed operation, automatic stop.
Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.
Explosion-proof heaters, explosion-proof electrical appliances, explosion-proof circuits, pouring and encapsulation of key components, electrostatic isolation protection.
Explosion-proof and anti-static treatment of heating parts.
Explosion-proof pouring protection treatment of line connection part.
Explosion-proof flexible connecting pipes are used for exposed connecting wires to isolate electrostatic sparks and temperature leakage to ensure safety.
Safety protection: electric heater short circuit protection, power disconnection protection, over-temperature protection alarm.
Enforce the standard
（This performance index can be determined at the ambient temperature of the outside of the device at +5~+35°C):
Testing Standards:Temperature measurement points can be placed according to JJF1101-2003 "Specification for Temperature and Humidity Calibration of Environmental Test Equipment" or the national industry standard JB/T5520-91 <Technical Conditions for Drying Ovens).
Explosion-proof standards:
GB3836.1-2020 "Explosive Rings Part 1: General Requirements for Equipment",
GB3836.2-2020 "Explosive atmospheres – Part 2: Equipment protected by flameproof enclosure "d"
GB3836.3-2020 "Explosive atmospheres – Part 3: Equipment protected by increased type "e"
GB3836.9-2020 "Explosion-proof Electrical Equipment for Explosive Atmospheres Pouring Encapsulated Electrical Equipment "m"" stipulates that it will be made into an explosion-proof structure.
Temperature safe
Over-lift alarm, menu lock.
