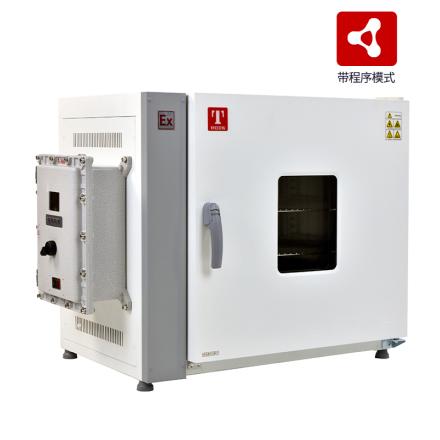

TaiSiTe TEX-136WG-25L (with program mode) Explosion-proof Forced Air Drying Oven Specifications
Search
Brand：TaiSiTe
Model：TEX-136WG-25L (with program mode)
Name：Explosion-proof Forced Air Drying Oven
Specifications
| Explosion-proof level | EX d e mb IIB T4 Gb |
| Door opening method | Single door |
| Temperature range | RT+10~250°C |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Uniformity | ±2.5% |
| Fan | Explosion-proof fan |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Explosion-proof stainless steel heating tube (explosion-proof qualification) |
| Rated power | 2.0 kw |
| Exhaust port | Inner diameter 30mm, top mounted |
| Control box | Explosion-proof qualification box centralized explosion-proof design |
| Temperature representation | LCD display (flameproof button) |
| Timer | 0~9999Min (with Timer waiting) |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable |
| Temperature sensor | 2 pt100 (explosion-proof qualification), 1 control and 1 prevention |
| blower | Explosion-proof special motor (with explosion-proof qualification) |
| switch | Explosion-proof switch (with explosion-proof qualification) |
| External connection | Adopt explosion-proof torsion pipe (explosion-proof qualification) |
| Power cord | Explosion-proof flexible connection, explosion-proof connection plug. |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory |
| Safety Devices | Over-rise protection, leakage current protection, Independent Overtemperature Protection protector (built in the explosion-proof control box, the highest temperature limit). |
| Alarm function | Over-temperature alarm |
| Interior size | 550*450*550mm |
| Volume | 136L |
| Load per shelf | 15kg |
| Shelf (std.) | 2pcs |
| Power | AC220/50-60Hz,9.1A |
| Optional accessories | Shelf, RS485 interface, printer, recorder, external communication, remote control, programmed temperature Controller, unlimited SMS alarm, U disk data storage. |
Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
