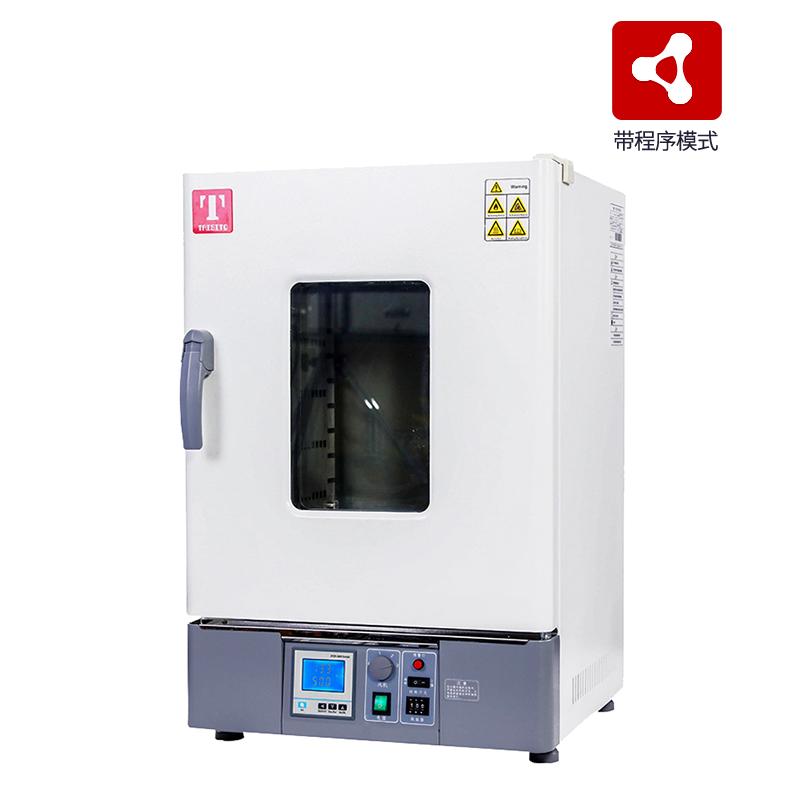

TAISITE GP-125BE drying/fostering dual-use box, program-controlled type 125L
With program temperature control function, Interior size 500 * 450 * 550mm, vertical double air duct air jacket, volume 125L, support drying, baking, wax, heat treatment and bacterial fostering.
Model：
GP-125BE (with program mode)
TaiSiTe GP-125BE (with program mode) Drying/fostering dual-use boxSPEC
TaiSiTe GP-125BE (with program mode) Drying/fostering dual-use boxDetails
TaiSiTe GP-125BE (with program mode) Drying/fostering dual-use boxPacking list
- SKU
- NB043147
- Temperature range
- Foster: RT + 5~ 80 ℃; drying: 80~250 ℃
- Temperature Fluctuation
- A.±0.5℃；B.±1℃
- Temperature Resolution
- 0.1℃
- Temperature Uniformity
- Foster +/- 1.0 ℃; drying +/- 2.5%
- Volume
- 125L
- Interior size
- 500*450*550mm
- Chamber material
- stainless steel plate
- Shelf (std.)
- 2pcs
- Shelves (max)
- 13pcs
- Load per shelf
- 15kg
- Timer
- 0~9999Min (with Timer waiting)
- Power
- AC220V/10.5A 50/60Hz
- Input Power
- Foster: 0.6Kw; drying: 2.3Kw
- Dimensions
- 636*580*930mm
- Net Weight
- 60kg
- Enclosure Material
- Cold rolled steel plate, surface resistance painting
- Thermal insulation material
- aluminum silicate fiber
- Heating mode
- Stainless steel heating tube
- Exhaust port
- Inner diameter 28mm * 1, top
- thermostat
- Liquid crystal dual row PID
- Temperature setting
- Tap the four-button settings
- Temperature representation
- Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display
- Run function
- Fixed value operation, Timer operation, automatic stop
- Program Mode
- Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable
- Additional features
- Deviation correction, menu button lock, power outage compensation, power outage memory, speed regulating fan, overlift preventer
- Temperature sensor
- pt100
- Packing size
- 760*700*1060mm
- Shelf spacing
- 35mm
- Gross Weight
- 66Kg
- Safety Devices
- Overlift alarm, overlift preventer
- Convection mode
- Double duct forced convection
- Shelf (std.)
- 2pcs
- Shelf (std.)
- 4pcs
GP-125BE (with program mode)
Drying/fostering dual-use box
With program temperature control function, Interior size 500 * 450 * 550mm, vertical double air duct air jacket, volume 125L, support drying, baking, wax, heat treatment and bacterial fostering.
Benefits:
Drying, baking, wax melting, heat treatment and bacterial culture are all in one box
High precision, high efficiency, safety, wide range.
Convenient operation, fixed value operation, timed operation, automatic stop. PID thermostat, accurate temperature control.
Dedicated function keys enable temperature setting.
Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.
Vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.
Speed-controlled fans enable the use of lightweight, fine, powdery samples.
The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50°C, and the operation is long-lasting for a long time.
LCD multi-data full-screen operation display, power failure memory, power failure compensation
Overlift preventer
Detail design advantages
Figure 1: Heating curve: time unit: minutes, temperature unit: °C
Figure 2,Multi-functionalAble to control the panel
Figure 1 Figure 2
Parameter comparison
| Model | heater | Content volume | Number of partition layers |
| GP-30B/BE | Stainless steel heating tubes | 30L | 6 floors |
| GP-45B/BE | Stainless steel heating tubes | 45L | 7 floors |
| GP-65B/BE | Stainless steel heating tubes | 65L | 9 floors |
| GP-125B/BE | Stainless steel heating tubes | 125L | 13 floors |
| GP-230B/BE | Nichrome heating wire | 230L | 17 floors |
| Other parameters | |||
| manner | Dual air ducts force convection | ||
| Operating temperature range | Incubation RT+5~80°C and drying 80~250°C | ||
| Temperature resolution | 0.1℃ | ||
| Temperature fluctuations | Incubation ± 0.5 °C dry ± 1 °C | ||
| Temperature distribution accuracy | Incubation± 1.0 °C dry ± 2.5% | ||
| Built-in | Stainless steel plate | ||
| Exterior | Cold-rolled steel plate, surface resistance * quality coating | ||
| Insulating materials | Aluminum silicate fiber | ||
| Exhaust outlets | Inner diameter 28mm*1, top | ||
| Temperature control method | Type B: Digital tube double-row PID;BE type: LCD double-row PID | ||
| Temperature setting method | Tap the four buttons to set it | ||
| Temperature representation | Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display | ||
| BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display | |||
| timer | 0~9999 minutes (with timed waiting function) | ||
| Run the function | Fixed-value operation, timed operation, automatic stop | ||
| Program mode | Matching | ||
| Additional features | Deviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer) | ||
| sensor | pt100 | ||
| Safety devices | Overlift Alarm (BE Type Overlift Arrester) | ||
| clapboard | 2 pcs | ||
| Partition shelves | 4 pcs | ||
| Configurations can be added | (GPBE type) partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage | ||
