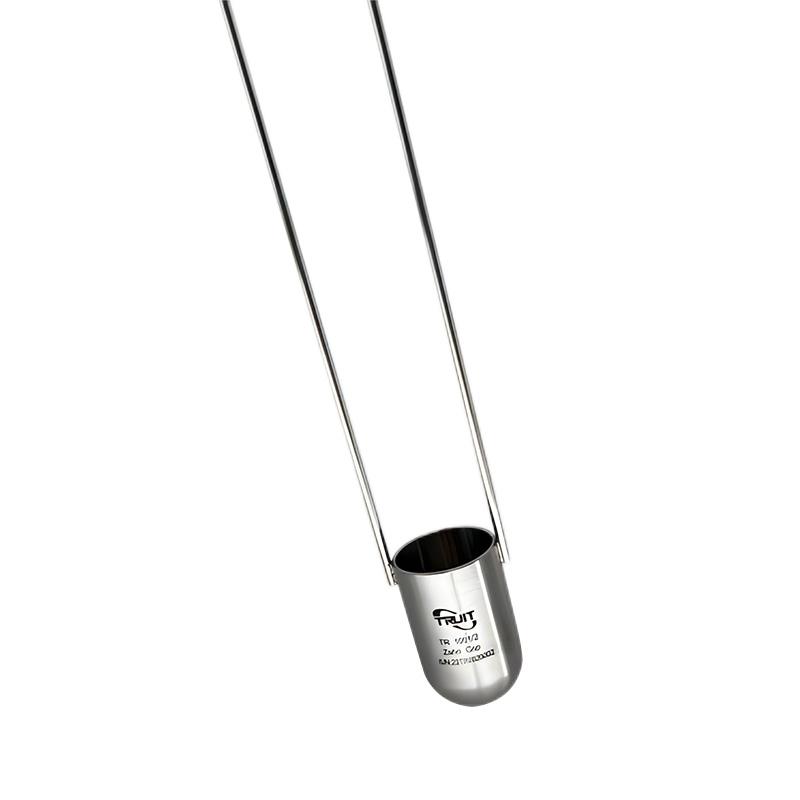

CHINA TR 1001/2 Zahn Cup No. 2 Portable Viscosity Cup 2mm
SEThe diameter of the flow hole is Φ2.74, the outflow time is 20~80s, and the viscosity range is 20~250cSt.
$111.00/piece
PromotionLoading...
Coupon
Model：
TR 1001 / 2
Similar products
-
MODERNER CNDB-2 Zahn Viscosity Cup (zahn cup) 2.7mm Zahn cup -
JINGKELIAN ZND-1 No. 2, Zain Viscometer 20~250 cps Viscosity 2.74mm Diameter$ 130.00SE -
IPRE SR600 anchor pattern instrument shot peening sand blasting Roughness Gauge 0~2000a large range$ 273.00SE -
TQC VF2227 Zahn Cup No. 2 Zahn Viscosity Cup /2.7mm$ 434.00SE
TRUIT TR 1001 / 2 Zain CupSPEC
TRUIT TR 1001 / 2 Zain CupDetails
TRUIT TR 1001 / 2 Zain CupPacking list
- SKU
- NB043155
- Flow hole diameter
- 2.74mm
- outflow time
- 20~80s
- Viscosity range
- 20~250cSt
TR 1001 / 2
Zain Cup
The diameter of the flow hole is Φ2.74, the outflow time is 20~80s, and the viscosity range is 20~250cSt.
Zahn Viscosity Cups are also called Zahn cups. The Zahn cups produced by TRUIT are designed in accordance with the ASTM D 4212 standard. It is used to quickly determine the viscosity of Newtonian or near-Newtonian liquids, and can be used anywhere such as production sites or laboratories. Widely used in ink, coating, varnish and printing related industries. TR 1001 series has a variety of aperture specifications to choose from.
Models
| order number | Aperture (mm) | Viscosity range (cst) | Outflow time (sec) | application |
| TR 1001/1 | φ2.00 | 5～60 | 35～80 | thinner product |
| TR 1001/2 | φ2.74 | 20～250 | 20～80 | Thin Viscosity Products |
| TR 1001/3 | φ3.76 | 100～800 | 20～80 | Medium Viscosity Products |
| TR 1001/4 | φ4.26 | 200～1200 | 20～80 | thicker product |
| TR 1001/5 | φ5.28 | 400～1800 | 20～80 | High Viscosity Products |
FAQ
QCan your viscosity cups be calibrated to ASTM D4212?
A
The Zain Cup meets the ASTM D4212 standard, and the measurement is based on the JJG743-2018 specification.
QWe often need to measure high viscosity coatings, is Zahn Cup suitable?
A
Zahn Cup is mainly suitable for viscosity measurement of Newtonian or near-Newtonian fluids, not for physical viscosity measurement of high viscosity and pastes. If you need to measure high viscosity coatings, you may want to consider a Miscellaneous type viscosity measurement device or method.
QWhat factors affect the outflow time of Zahn Cup measurement?
A
The outflow time of a Zahn Cup measurement is influenced by factors such as liquid viscosity, liquid temperature, and the temperature of the measurement environment. Higher viscosity and lower temperatures usually result in longer outflow times.
Q For products with higher viscosity, is the TR 1001/2 Zahn Cup suitable?
A
Model TR 1001/2 Zahn Cup is suitable for dilute viscosity products with a viscosity range of 20 to 250cSt. For higher viscosity products, it may be necessary to choose a model with a larger aperture or Miscellaneous viscosity measurement method.
