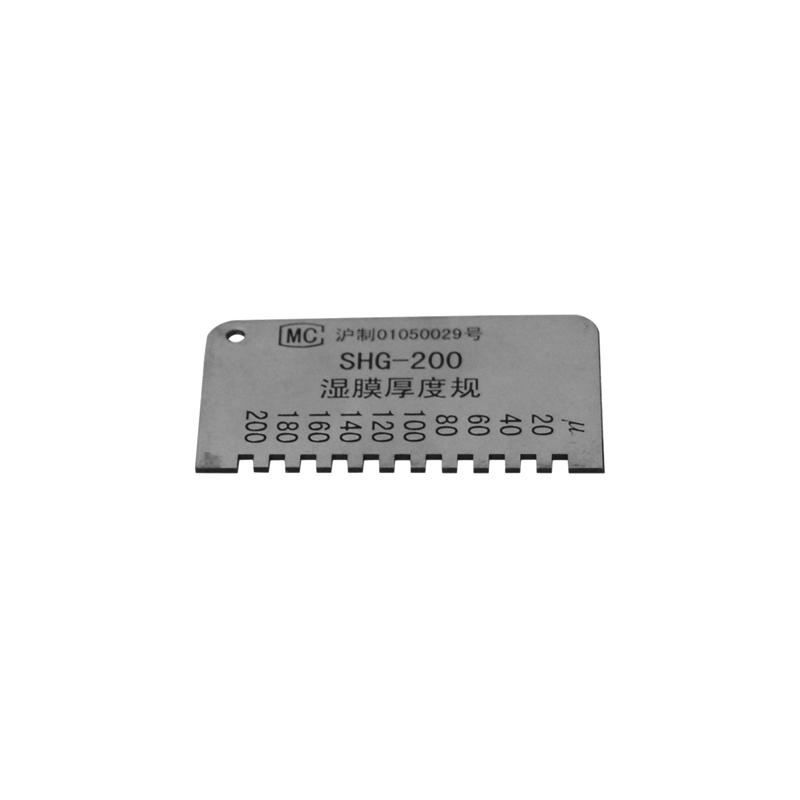

MODERNER SHG-200 WFT gauge 0~200μm range 20μm scale
SHG-200
-
MODERNER YQH-200 Wet Film Thickness Wheel 0~200μm Graduation 10μm -
TRUIT TR 5501/200 Single-sided wet-film thickness caliper 20~200μm$ 99.00SE -
TRUIT TR 5501/150 Single-sided wet-film Thickness Gauge 15~ 150μm$ 99.00SE -
Pushen SHG 20-200 SHG comb WFT gauge 20-200μm$ 105.00SE -
SHG-200 stainless steel wet-film comb YONGLIDA WFT 20~200μm$ 114.00SE
Moderner SHG-200 Wet Film Thickness GaugeSPEC
Moderner SHG-200 Wet Film Thickness GaugeDetails
Moderner SHG-200 Wet Film Thickness GaugePacking list
- SKU
- NB004316
- Range
- 0~200μm
- Graduation
- 20μm
- Appearance size
- 65*36*1.5mm
Introduction
The SHG wet Film Thickness Gauge is a thickness measurement tool during the construction of various coatings such as paints and varnishes. Values ââare expressed in micrometers (μm). SHG Thickness Gauges are available in a variety of ranges to meet the needs of different industries.
Specifications
| model | Thickness Gauge range (μm) | Difference per tooth (μm) |
| SHG-100 | 0~100 | 10 |
| SHG-200 | 0~200 | 20 |
| SHG-275 | 50~275 | 25 |
| SHG-700 | 250~700 | 50 |
| SHG-750 | 300~750 | 50 |
Instructions
Measurement methods:
Immediately after the application of various coatings, place the toothed measuring surface of the wet Film Thickness Gauge firmly and vertically on the flat workpiece coating surface, and then remove it. Observe the tooth end with the largest value in contact with the wet film surface. The tooth scale value is the wet film thickness value. Measure twice in the same way at different positions to obtain representative results within a certain range.
Maintenance:
After use, clean the wet Film Thickness Gauge, wipe it dry, and place it in a box cover. If the tooth end is damaged or worn, it should be corrected or updated in time.
