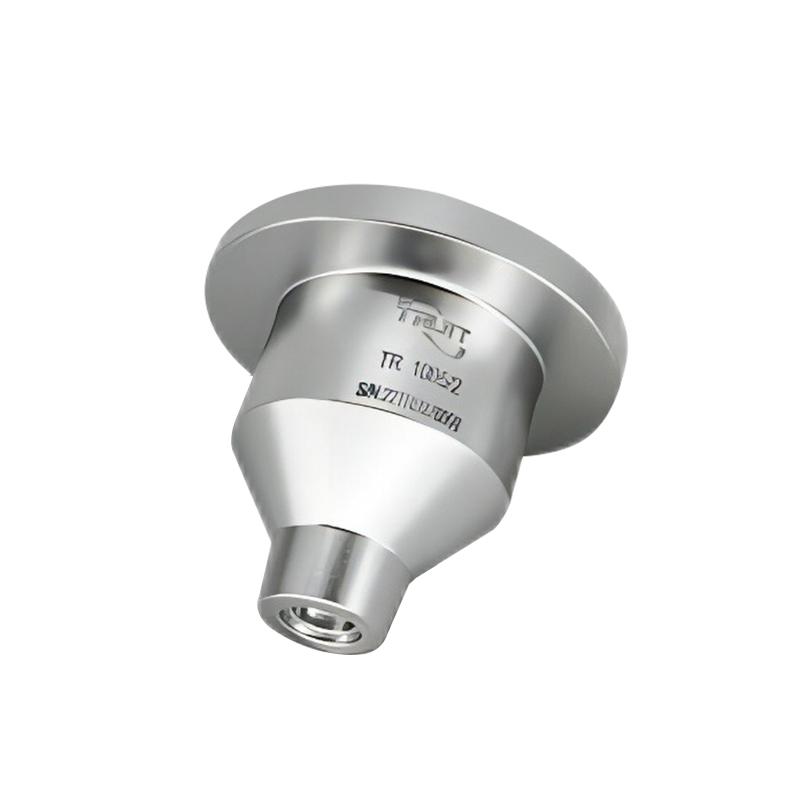

TRUIT TR 1005/4 DIN Viscosity Cup outflow aperture 4mm
SE
TR 1005 / 4
TRUIT TR 1005 / 4 DIN CupSPEC
TRUIT TR 1005 / 4 DIN CupDetails
TRUIT TR 1005 / 4 DIN CupPacking list
- SKU
- NB043169
- Flow hole diameter
- F4.0mm
- outflow time
- 25 to 150 seconds
- Viscosity range
- 112～685cst
- Volume
- 100ml
- Cup material
- High quality aluminum alloy (anodic oxidation)
- Nozzle material
- High quality stainless steel
Introduction
The DIN cup is designed in accordance with the DIN 53211 standard. It is used to measure the viscosity of ink, paint, paint and other Newtonian or near-Newtonian liquids. It is evaluated by measuring the time required for a certain volume of sample in the cup to flow out of the small hole at the bottom. The viscosity of the material is usually suitable for testing thin liquids with relatively low viscosity. The DIN Viscosity Cup is made of high-quality aluminum alloy cup body and stainless steel spout, with a volume of 100ml.
TR1005 series is a table-top DIN cup, which is mainly used for viscosity testing of samples in the laboratory. There are a variety of aperture specifications to choose from, and the outflow time of applicable samples is in the range of 25~150s.
Features
Cup material: high-quality aluminum alloy (anodized)
Nozzle material: high quality stainless steel
Volume: 100ml
Series
| order number | Outflow aperture (mm) | Measuring range (cst) |
| TR 1005/2 | φ2.0 | 15～30 |
| TR 1005/4 | φ4.0 | 112～685 |
| TR 1005/6 | φ6.0 | 550～1500 |
| TR 1005/8 | φ8.0 | 1200～3000 |
| TR 1006/2 (handle type) | φ2.0 | 15～30 |
| TR 1006/4 (handle type) | φ4.0 | 112～685 |
| TR 1006/6 (handle type) | φ6.0 | 550～1500 |
| TR 1006/8 (handle type) | φ8.0 | 1200～3000 |
