TRUIT TR 5006/2 adhesion cross-cut plate cross-cut number 11

Using 304 stainless steel, cross-cut length 35mm, cross-cut number 11, cross-cut spacing 2mm, with 600 type tape and nylon brush.

$145.00/set

PromotionLoading...

Coupon

Model：

TR 5006 / 2

Certificate

TRUIT

Manufacturer authorization

Contact

Details SPEC Con CAT

TRUIT TR 5006 / 2 Cross-cut boardSPEC

TRUIT TR 5006 / 2 Cross-cut boardDetails

TRUIT TR 5006 / 2 Cross-cut boardPacking list

SKU: NB043294

Number of teeth: 11

Tooth spacing: 2mm

Instrument material: 304 stainless steel

Application standard: GB/T 4893.4 、ISO 2409、ASTM D3359和BS 3962-6

Cross-cut length: 35mm

TR 5006 / 2

Cross-cut board

Using 304 stainless steel, cross-cut length 35mm, cross-cut number 11, cross-cut spacing 2mm, with 600 type tape and nylon brush.

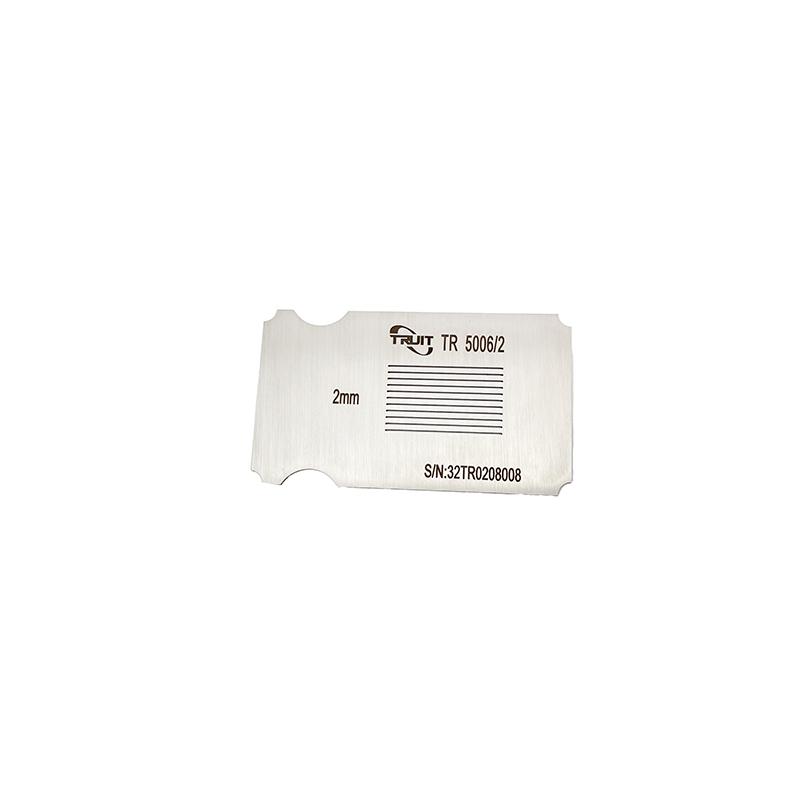

TRUIT TR 5006/2 adhesion cross-cut plate cross-cut number 11 Picture

Introduction

The cross-cut board is a simple testing instrument for testing the adhesion of the paint film. It is suitable for the adhesion fastness of the paint film on the painted surface to the substrate or the fastness of the combination of the primer and the top paint.

The grid length of TR 5006/2 is 35mm, the number of grids is 11, and the grid spacing is 2mm. It is equipped with 600 type adhesive tape and nylon brush.

Standards

Comply with GB/T 4893.4, ISO 2409, ASTM D3359 and BS 3962-6 standards

Features

Various specifications are available
304 stainless steel
High pitch dimension accuracy

Models Parameters

model	name	Scratch length (mm)	Number of grids (bar)	Pitch (mm)
TR 5006/1	cross-cut board	35	11	1
TR 5006/2	cross-cut board	35	11	2
TR 5006/3	cross-cut board	35	6	3
TR 5006/A	multi-purpose cross grid	23~35	7, 11	1, 1.5, 2, 3
