TRUIT TR 5006/3 cross-cut plate cross-cut number 6

Using 304 stainless steel, cross-cut length 35mm, cross-cut number 6, cross-cut spacing 3mm, with 600 type tape and nylon brush.

$145.00/set

PromotionLoading...

Coupon

Model：

TR 5006 / 3

Certificate

TRUIT

Manufacturer authorization

Contact

Details SPEC Con CAT

TRUIT TR 5006 / 3 Cross-cut boardSPEC

TRUIT TR 5006 / 3 Cross-cut boardDetails

TRUIT TR 5006 / 3 Cross-cut boardPacking list

SKU: NB043295

Number of teeth: 6

Tooth spacing: 3mm

Instrument material: 304 stainless steel

Application standard: GB/T 4893.4 、ISO 2409、ASTM D3359和BS 3962-6

Cross-cut length: 35mm

TR 5006 / 3

Cross-cut board

Using 304 stainless steel, cross-cut length 35mm, cross-cut number 6, cross-cut spacing 3mm, with 600 type tape and nylon brush.

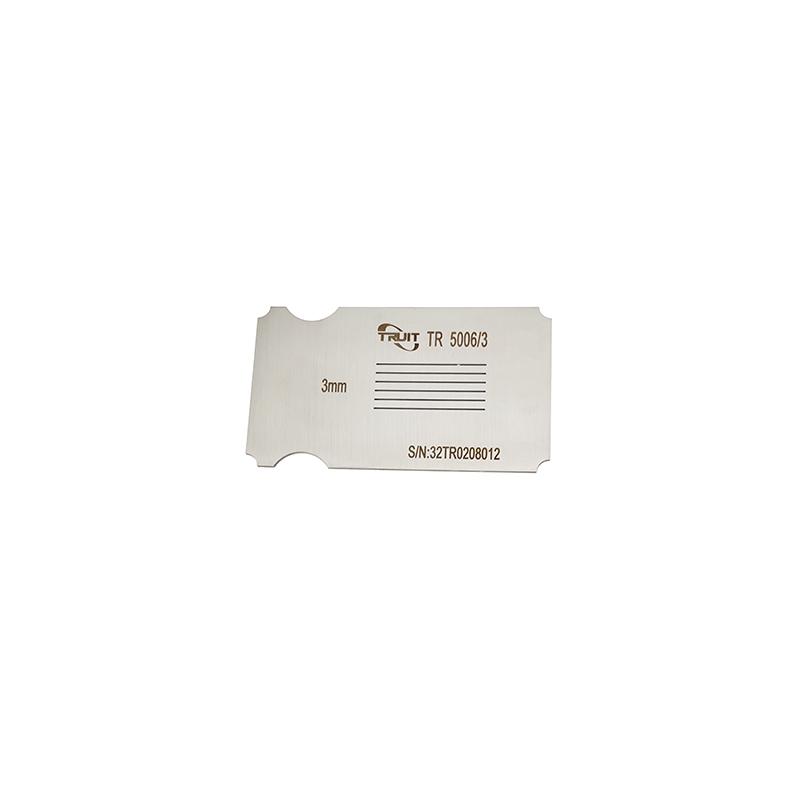

TRUIT TR 5006/3 cross-cut plate cross-cut number 6 Picture

Introduction

The cross-cut board is a simple testing instrument for testing the adhesion of the paint film. It is suitable for the adhesion fastness of the paint film on the painted surface to the substrate or the fastness of the combination of the primer and the top paint.

The grid length of TR 5006/3 is 35mm, the number of grids is 6, and the spacing of grids is 3mm. It is equipped with 600 type adhesive tape and nylon brush.

Standards

Comply with GB/T 4893.4, ISO 2409, ASTM D3359 and BS 3962-6 standards

Features

Various specifications are available
304 stainless steel
High pitch dimension accuracy

Models Parameters

model	name	Scratch length (mm)	Number of grids (bar)	Pitch (mm)
TR 5006/1	cross-cut board	35	11	1
TR 5006/2	cross-cut board	35	11	2
TR 5006/3	cross-cut board	35	6	3
TR 5006/A	multi-purpose cross grid	23~35	7, 11	1, 1.5, 2, 3

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
