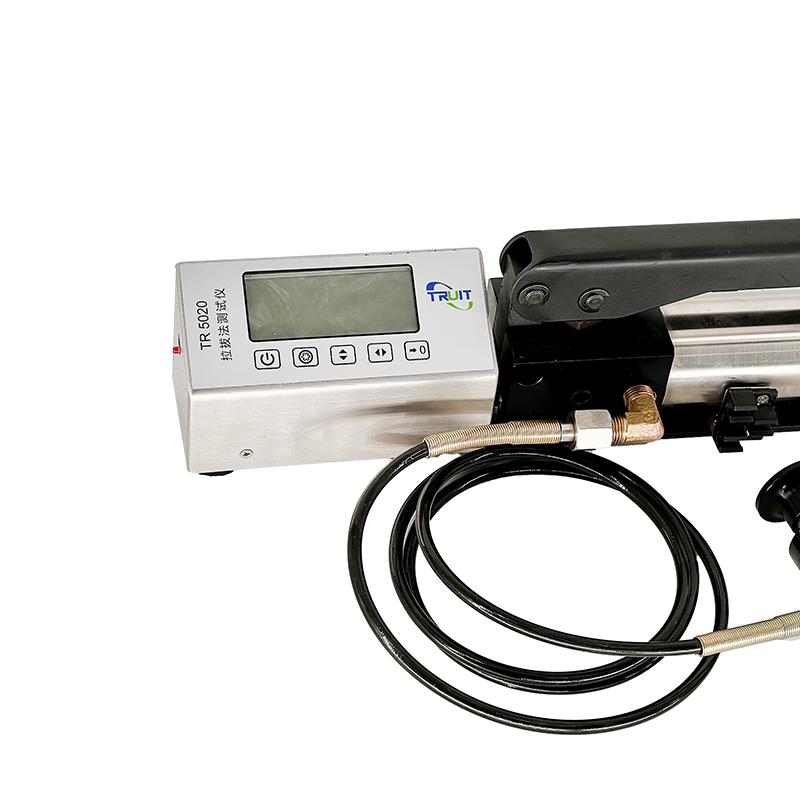

TRUIT TR 5020 Adhesion Tester film adhesion test 20mm

TR 5020

Drawing method Tester

Meet the standard, standard 20mm kit, using LCD screen, suitable for testing adhesion on metallic coatings, range 0.7-20 MPa, using rechargeable lithium battery.

Introduction

The pull-out adhesion Tester is a portable adhesion Tester that uses the hydraulic pull-out force of the adhesIon Meter to peel the coating per unit area from the coating substrate. Testing instrument for measuring the adhesion of metal coatings. The instrument is equipped with a 20 mm cap as standard. This size is suitable for a wide range of testing requirements and can effectively measure the adhesion of different surfaces with a range of 0.7-20 MPa. The pull-off adhesion Tester is waterproof and dustproof, and can operate reliably in harsh Operating Environments, protect the instrument from interference from water and dust, and improve the accuracy and stability of the test.

In addition, the instrument is also equipped with a high-quality hose with a length of 1.5 meters, which allows Testers to carry out measurements conveniently, even in narrow areas. It is suitable for use in laboratories and workshops, and displays the readings in Psi and MPa units through the LCD.

Standards

Designed in accordance with GB/T 5210, ISO 4624, ISO 16276-1, ASTM D4541, ASTM D7234 and other standards.

Packing list：Host X1, data cable X1, kit X1 (set), sleeve cutter X1, 3M Adhesive X1 (set), certificate X1, manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
