JFL QXD 0-50 double-channel Grindometer 5μm Graduation

The QXD 0~50μm Grindometer produced by JFL has 2 grooves, the maximum fineness range is 50μm, and the sub-scale is 5μm. The QXD 0-50 scraper Hardness Gauge is made of cemented carbide steel, which is resistant to abrasion and is used for coating pigment fineness detection.
Model：
Certificate
Contact
Details SPEC VIDEO CAT
Similar products

JFL QXD 0-50 Grindometer (double-channel)SPEC

JFL QXD 0-50 Grindometer (double-channel)Details

JFL QXD 0-50 Grindometer (double-channel)Packing list

SKU
NB004330
Scraper type
double-channel
Number of grooves
2
range
0~50μm
Scale unit
μm
scraper material
Carbide steel
Scraper size
155*50*13mm
Groove size
13*120mm
Drawdown blade size
68*40*6.5mm
Applicable standards
GB/T 1724-93、GB/T 13217.3-91
Net Weight
0.9kg
Graduation
5μm
QXD 0-50
Grindometer (double-channel)

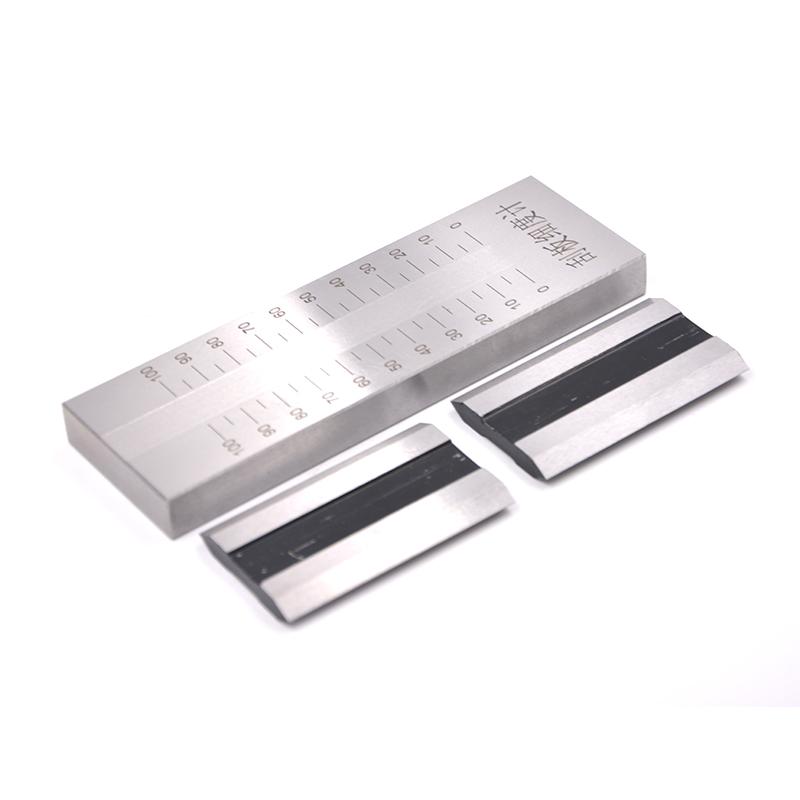

JFL QXD 0-50 double-channel Grindometer 5μm Graduation Picture

Introduction

Jinfulun QXD 0-25/50/100/150 Fineness Meter is a QXD double-slot fineness scraper meter for detecting particle fineness . It uses hard alloy steel with good wear resistance and hardness, which is not easy to wear. The QXD Fineness Meter is produced in strict accordance with the requirements of the "Scraper Fineness Meter" of the Ministry of Chemical Industry's special measuring instrument calibration regulations, and meets the standards of GB/T1724-93, GB/T13217.3-91.

The measuring ranges of the QXD 0-25/50/100/150 double-slot fineness scraper gauge are 0-25μm, 0-50μm, 0-100μm, and 0-150μm respectively.

Applications

QXD 0-25/50/100/150 double-slot fineness scraper meter is used to measure the fineness of pigments and impurities in paints and paint slurries. It is used to measure the fineness of dispersed products during production, storage and application. Test and control product quality.

product material

QXD 0-25/50/100/150 double groove fineness scraper gauge is made of carbide steel.

Product actual pictures

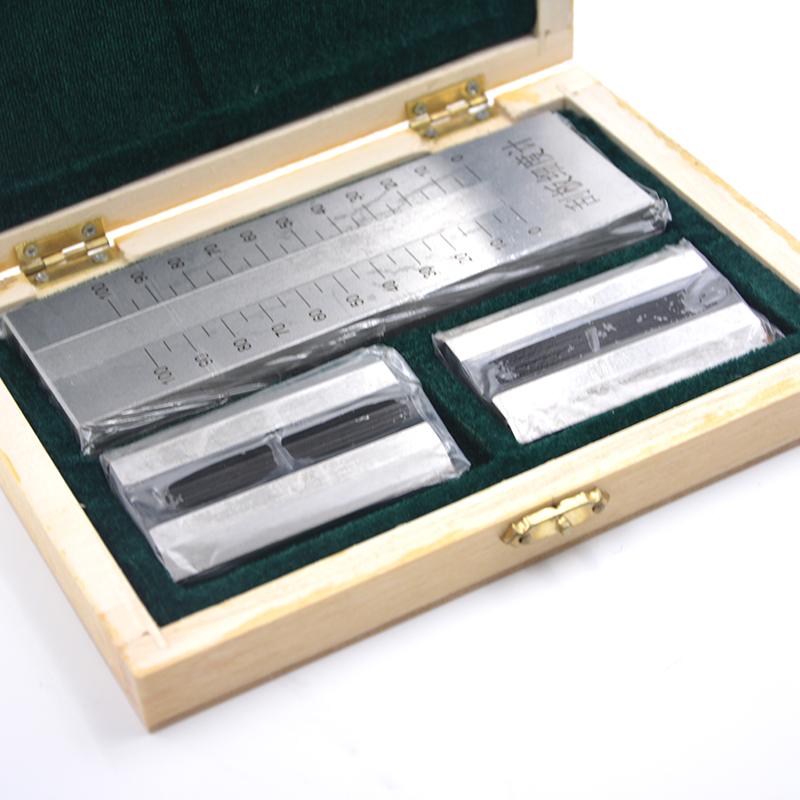

Appearance of Jinfulun QXD 0-25/50/100/150 Fineness Meter

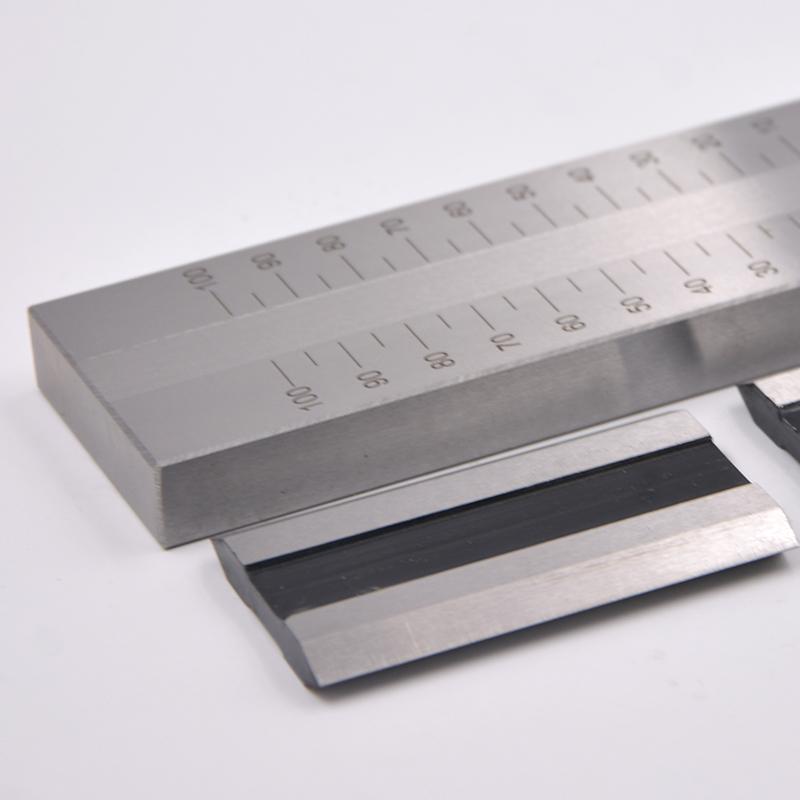

Jinfulun QXD 0-25/50/100/150 Fineness Meter details

FAQ
QIs this Kingflun 2 paths scraper Fineness meter only in microns?
A Hello, yes, only micron units.
QDoes the Fineness gauge meet the specifications of JB/T9385?
A Model QXD 0-50 Fineness gauge
QGravure plate Printing ink Fineness inspection which?
A Gravure plate Printing ink can be selected from 0~ 50μm scraper Fineness meter (domestic Qxp-50), one path or 2 paths can be selected according to their own requirements. reference standard GB/T 13217.3
QCan this instrument be used to determine the Fineness of silver and platinum slurry?
A Yes, not only silver and platinum slurries, but also most precious metal slurries can be determined by a scraper Fineness meter.
QFineness of one path or two paths?
A There is no doubt that 2 paths will be better. The 2 paths Fineness meter can provide a direct comparison of the two preparation results at the same time, and the two are not affected by objective conditions such as time and temperature and subjective conditions such as scraping speed and force. For Fineness detection efficiency and calculation accuracy will be greatly helpful. Of course, the price will be more expensive than one path.
QIs the Fineness measured by the scraper Fineness meter the same as the particle size measured by the particle size analyzer? What is the difference?
A Hello, the scraper Fineness gauge is mainly used to measure the pigment grinding, which is easy to disperse in the fluid equipment. The particle size analyzer is mainly used for the measurement of particle size and particle size distribution in scientific research. The Fineness gauge is visually judged to be an interval value according to the standard, while the particle size analyzer can be more fine to 1um. Different uses, the two are more far-fetched.
