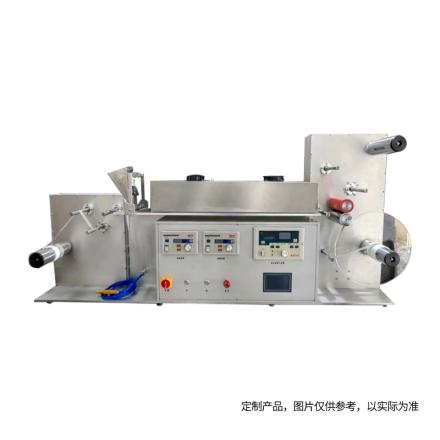

zy TBJ-JCPT-DJ1 Micro Coil Dual Function Film Applicator (lame plating + scratch coating) Specifications
Search
Brand：zy
Model：TBJ-JCPT-DJ1
Name：Micro Coil Dual Function Film Applicator (lame plating + scratch coating)
Specifications
| Coating method | Lame plating + scraping method |
| Effective application width | 100-300mm |
| Roll surface width | 300mm |
| unwinding diameter | ≤Φ400mm |
| Film laminating roll diameter | ≤Φ400mm |
| winding diameter | ≤Φ400mm |
| Power | 220V 50Hz |
| Dimensions | About 2300 * 1500 * 1500mm (subject to customized parameters) |
| Unwinding Unit - Type | Single station |
| Unwind Unit - Effective Unwind Width | 300mm |
| Unwinding Unit - Effective Unwinding Diameter | ≤Φ400mm |
| Unwinding Unit - Unwinding Scroll | Inflatable shaft |
| Unwinding Unit - Unwinding Tension Control | Tension Controller automatic control |
| Spreader Unit - Spreader Mode | Lame plating + scratch coating |
| Spreader unit - lame plating height | Can be adjusted 0-200mm |
| Curing Unit - Type | Column arch bridge |
| Curing unit - heating | 1 meter oven |
| Winding Unit - Type | Single station |
| Winding Unit - Effective Winding Width | 300mm |
| Winding Unit - Effective Winding Diameter | ≤Φ400mm |
| Winding Unit - Winding Reel | Inflatable shaft |
| Feed irrigation material | 304 stainless steel |
| Wire Rod Coating Range | Determine Spreader thickness according to rod model |
| Drawdown blade film thickness | 0~10Mm drawdown blade can be lifted |
| Drawdown blade Accuracy | ±0.03mm |
Packing list
Coater x1, doctor blade x1, wire rod x1, automatic feeding system x1, automatic lame plating system x1, tension system x1, deviation correction module x1, rewinding and unwinding x1,
After-sales instructions
Warranty days: 365 days
