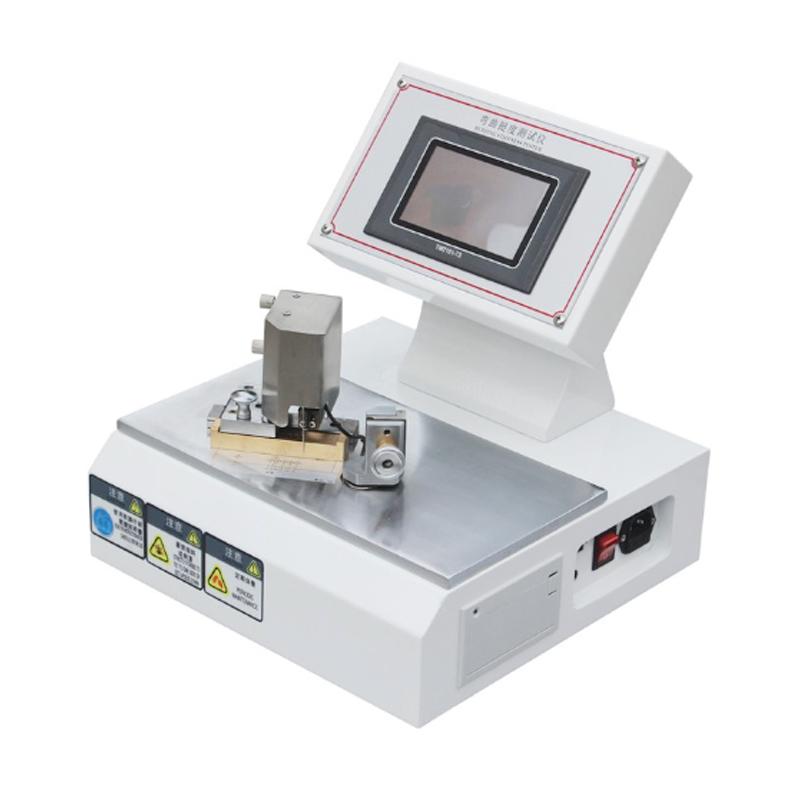

CHINA BLD-TD17 Computer measurement and control Stiffness meter
SE
BLD-TD17
Factory BLD-TD17 Stiffness meterSPEC
Factory BLD-TD17 Stiffness meterDetails
Factory BLD-TD17 Stiffness meterPacking list
- SKU
- NB043415
- Precision
- Below 50mN +/- 0.6mN, remaining +/- 1%
- Resolution
- 0.1mN
- Indication variability
- ≤1%
- bending length
- (50/25/20/15/10/5)±0.1mm
- bending angle
- (+/- 7.5 degrees or +/- 15 degrees) +/- 0.3 degrees (adjustable from 1 to 90 degrees)
- Load arm length
- 200°±20°/min
Introduction
Computerized stiffness Tester is an intelligent computerized stiffness Tester, which is suitable for measuring the bending stiffness of paper, cardboard and other strength sheet non-metallic materials with a thickness of less than 2mm. The main technical parameters of the instrument conform to the relevant provisions of ISO2493 "Determination of Paper and Cardboard Stiffness" and GB/T2679·3 "Cardboard Stiffness Determination Method".
Features
The angle can be set arbitrarily between (1~90)°, and the test time can be set arbitrarily within the specified range (3s~35s).
It has the function of automatic zeroing test, and is equipped with a 5.7in LCD display curve graph, which can display stiffness and time curve in real time, and the operation is simple and convenient.
This instrument has the functions of testing, display, memory, statistics and printing of various parameters included in the standard, and provides scientific data analysis for cardboard bending stiffness testing.
