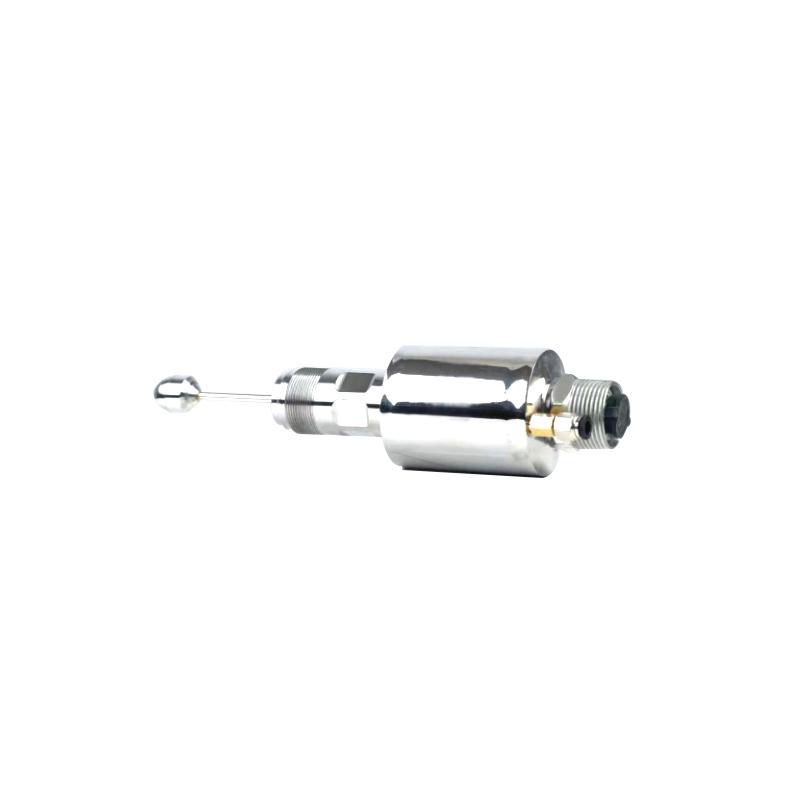

Ruifeng RFND-50G2 High Viscosity Online Viscometer 0~10000MPa · s
RFND-50G2
RuiFeng RFND-50G2 Online ViscometerSPEC
RuiFeng RFND-50G2 Online ViscometerDetails
RuiFeng RFND-50G2 Online ViscometerPacking list
- SKU
- NB043496
- Viscosity range
- 0~10000mpa·s
- Measurement Accuracy
- ±0.5%
- Temperature Measurement Range
- 0-500℃
- Temperature Accuracy
- 0.2%
- Sensors Pressure Range
- <25Mpa
- Sensors temperature range
- <500℃
- Signal response time
- 2s
- material
- 316 stainless steel (std.)
- Environment level
- IP68
- Power
- 24V DC
- output
- Viscosity 4~ 20 mADC; Temperature 4~ 20 mADC
- Optional Miscellaneous Materials
- Hastelloy C alloy
- process
- Standard: highly polished plus Teflon acid and alkali resistant coating
- Protection level
- IP67
- Explosion-proof standard
- ExdIIBT6Gb
- calibration
- Standard sample solution
- Viscosity unit
- 9 options
- connect
- Flange DN40, PN4.0, threaded connection M42 * 1.5, quick chuck user optional
- Flange standard
- HG20592
- Modbus-RTU protocol
- 485 interface
productstype
1. RFND-50A online micro-vibration viscometer--- small range viscometer online viscometer, range 0~50~100mpa.s.
Mainly used in the field of solvents, light oils, alcohols, cleaning fluids, low viscosity silicone oils, oils, emulsion hydraulic cracking fluids, low viscosity polymers, starch gums, milk beverages.
2. RFND-50B online micro-vibration viscometer--- medium-range viscosity online viscometer, ranging from 0-100~5000mpa.s.
Viscosity in this area is widely used, covering various fields, silicone oils, resins, optical fibers, inks, plastics, asphalt, lubricating oils, and fine chemicals in various viscosity segments.
3. RFND-50G online micro-vibration viscometer--- large range viscometer online viscometer, measuring range 0-5~50-5000pa.s.
It is used in high-viscosity silicone oil, silicone grease, polyamine resin, and hot melt adhesive.
4. RFND-50Y medium and long online micro-vibration viscometer, with a range of 0---10~10000000mpa.s, is used for full-range viscosity measurement when the medium temperature is L=500~2000mm.
5. RFND-50G2 online micro-vibration viscometer--- high-range viscosity online viscometer, measuring range 0-500~10000pa·s.
It is used in high-viscosity silicone oil, silicone grease, resin, and hot melt adhesive.
6. RFND-50M marine online micro-vibration viscometer, measuring range 0-50~100mpa.s.
The online viscometer developed for ships can also be applied to devices with viscosity of 0~3000MPa.s and relatively small installation locations.

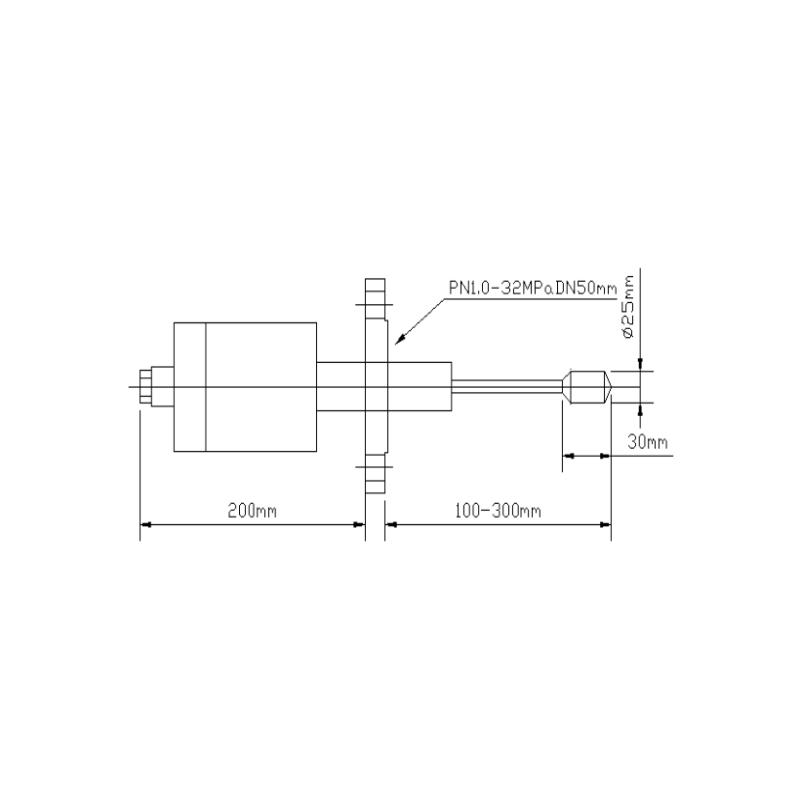

Process installation
Meter terminal block description
The back cover of the display head is open to identify the terminal strip as an 8P slot, starting from the left
| port | color | port | color |
| 24V DC power supply+ | red | Temperature 4-20mA+ | white |
| 24V DC Power Supply- | green | Temperature: 4-20mA- | black |
| 485 communication interface + | yellow | Viscosity 4-20mA+ | palm tree |
| 485 Communication Interface- | blue | Viscosity 4-20mA- | ash |
