Pushen 0-25um single-channe fineness grindometer 0~25μm

SE
Single-channe, range 0~25μm, Graduation 2.5μm, stainless steel, scale unit μm.
$192.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Pushen 0-25um Fineness gauge (single-channe)SPEC

Pushen 0-25um Fineness gauge (single-channe)Details

Pushen 0-25um Fineness gauge (single-channe)Packing list

SKU
NB004350
Scraper type
Single-channe
Number of grooves
1
range
0 ~ 25µm
Scale unit
mm
Scraper material
stainless steel
Scraper size
120*25*13mm
Groove width
12mm
Graduation
2.5µm
0-25um
Fineness gauge (single-channe)
Single-channe, range 0~25μm, Graduation 2.5μm, stainless steel, scale unit μm.

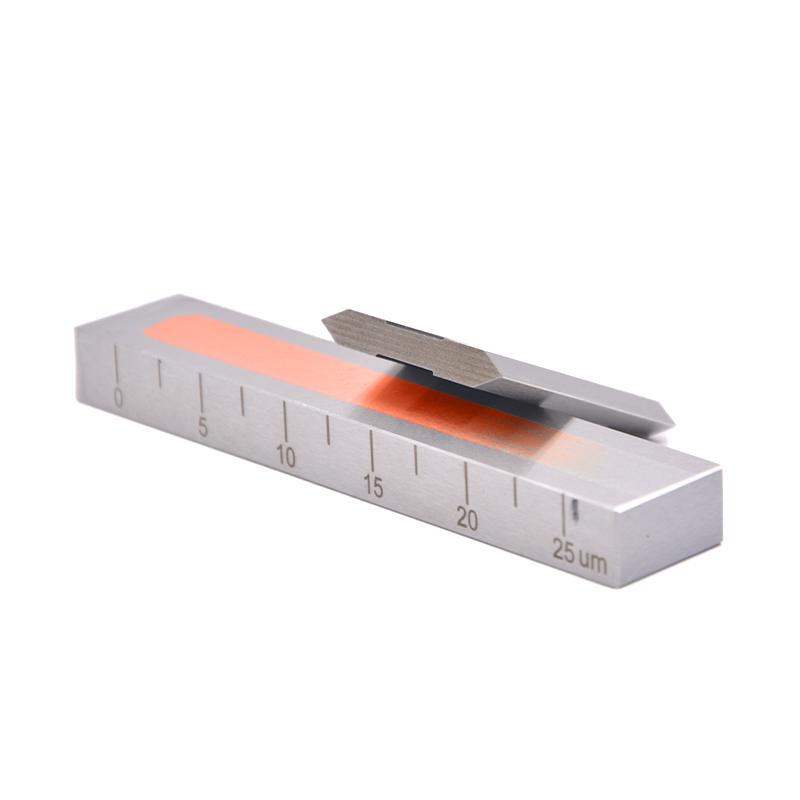

Pushen 0-25um single-channe fineness grindometer 0~25μm Picture

Introduction of single groove small Fineness of Grind Gauge

Pushen/Pushen single-slot small Fineness of Grind Gauge includes two models PU-2400 and PU-2401. PU-2402 is a double-slot Fineness of Grind Gauge , which is developed and designed according to the parameters specified in the relevant standards of the Fineness Meter. Yes, there are three units of measurement: microns, Hegmans, and mils.Pushen PU-2400/2401/2402 single groove small Fineness of Grind Gauge has three measuring ranges: 0~15μm, 0~25μm, 0~15μm respectively, and the corresponding groove width is 12mm.

Pushen single-slot small Fineness of Grind Gauge is made of stainless steel. It is a single-slot Fineness of Grind Gauge, which is used to detect the fineness of particles such as paint and ink.

Pictures

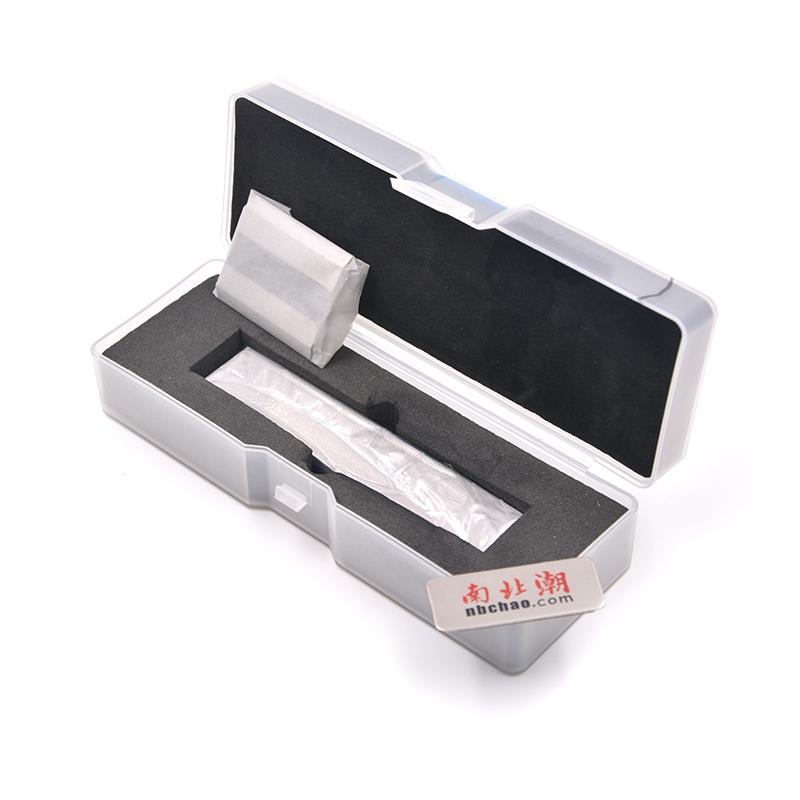

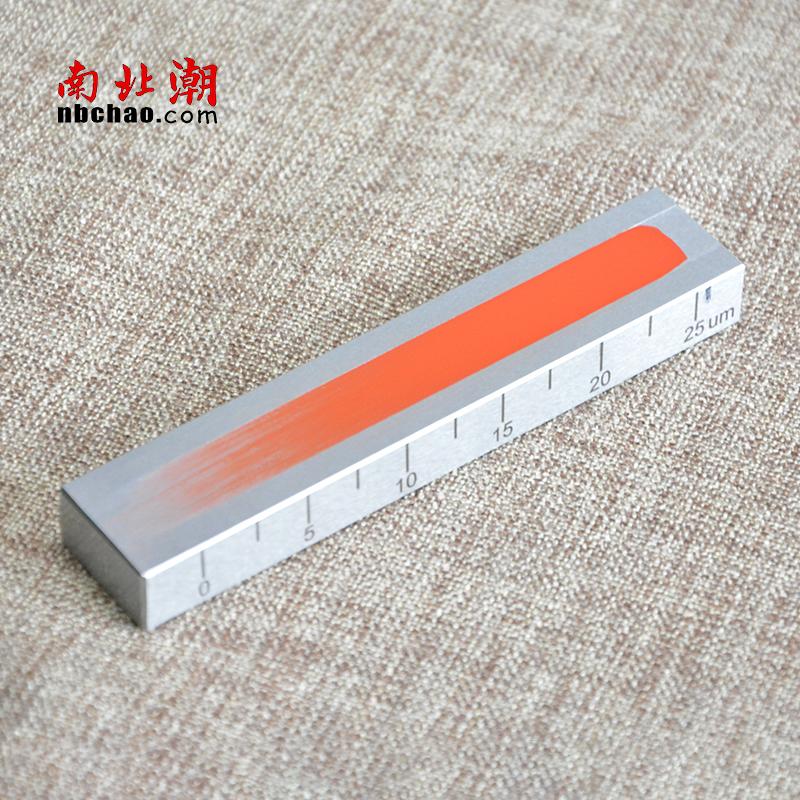

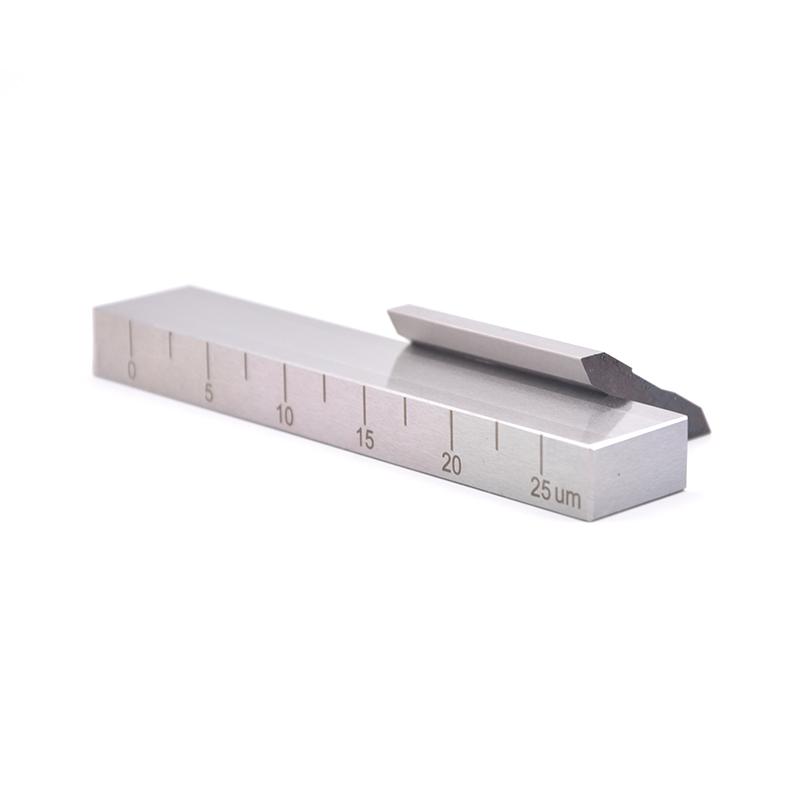

Small Fineness of Grind Gauge Pushen NBCHAO professional photo 1

Small Fineness of Grind Gauge Pushen NBCHAO professional photo 2

Small Fineness of Grind Gauge Pushen NBCHAO professional photo 3


FAQ
QMeet ASTMD3794 Fineness gauge
A 0-25A Fineness gauge, please refer to it.
QFineness measurement Printing ink is used for this Fineness scraper?
A Yes, Printing ink Fineness is relatively small, you can choose the appropriate range according to your actual situation.
QWhat is the difference between this small scraper Fineness gauge and the large one?
A Hello, this small scraper Fineness Meter is smaller than the regular use size.
QIn addition to the different sizes, what are the differences between PU-2411 and PU-2401 in other mass aspects?
A Hello, because the smaller the specification (size) of the Fineness meter, the higher the accuracy requirement when casting, so the size of the material is not the main factor affecting the price. Thank you for your consultation!
QWhy is the Fineness of Oil-based Paint Easier to See on the Scraper Fineness Meter than Water-based Paint?
A The medium of oil-based paint is organic solvent, and the medium of water-based paint is water. Although water-based paint is much more environmentally friendly than oil-based paint, the organic matter specific gravity of oil-based paint is much larger than that of water-based paint, which is why it is easier to observe.
