Pushen 0-15um double-channel Fineness gauge 0~15μm

SE
Pushen 0-15um double-channel Fineness gauge scraper size is 165 × 37 × 12mm, used for Coating inks Fineness detection, PU-2402 double-channel Fineness gauge measuring range is 0~15μm, slot width is 12mm.
$214.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Pushen 0-15um Fineness gauge (double-channel)SPEC

Pushen 0-15um Fineness gauge (double-channel)Details

Pushen 0-15um Fineness gauge (double-channel)Packing list

SKU
NB004351
Scraper type
double-channel
Number of grooves
2
range
0 ~ 15µm
Scale unit
mm
Scraper material
stainless steel
Scraper size
165*37*12mm
Groove width
12mm
Graduation
1.5µm
0-15um
Fineness gauge (double-channel)
Pushen 0-15um double-channel Fineness gauge 0~15μm Picture

Introduction of double groove small Fineness of Grind Gauge

Pushen/Pushen single-slot small Fineness of Grind Gauge includes two models PU-2400 and PU-2401. PU-2402 is a double-slot Fineness of Grind Gauge , which is developed and designed according to the parameters specified in the relevant standards of the Fineness Meter. Yes, there are three units of measurement: microns, Hegmans, and mils.Pushen PU-2400/2401/2402 single groove small Fineness of Grind Gauge has three measuring ranges: 0~15μm, 0~25μm, 0~15μm respectively, and the corresponding groove width is 12mm.

Pushen double-slot small Fineness of Grind Gauge is made of stainless steel. It is a double-slot Fineness of Grind Gauge, which is used to detect the fineness of particles such as paint and ink.

Pictures

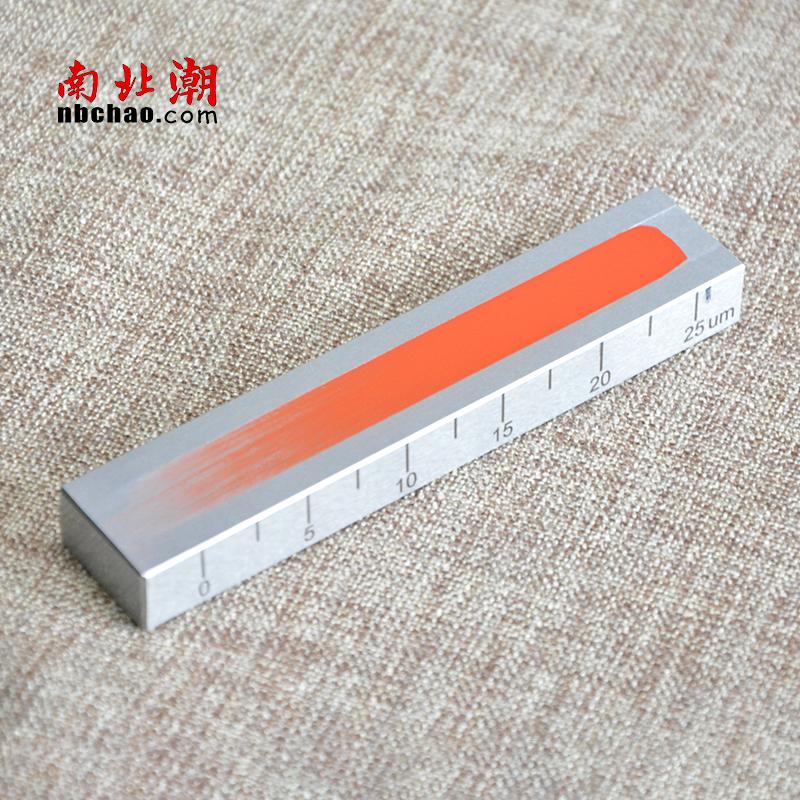

Small Fineness of Grind Gauge Pushen NBCHAO professional photo 1

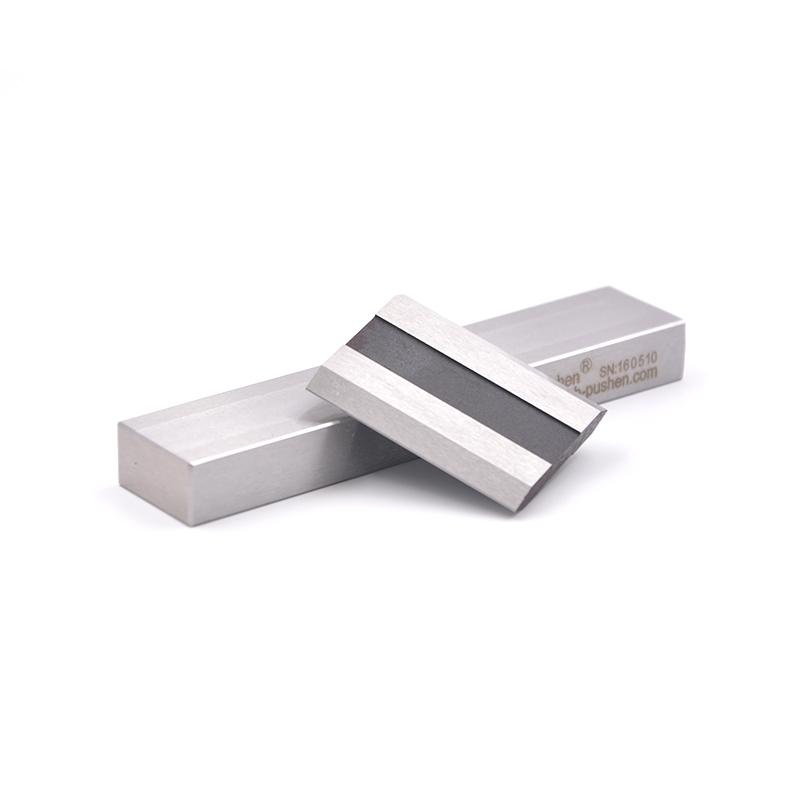

Small Fineness of Grind Gauge Pushen NBCHAO professional photo 2

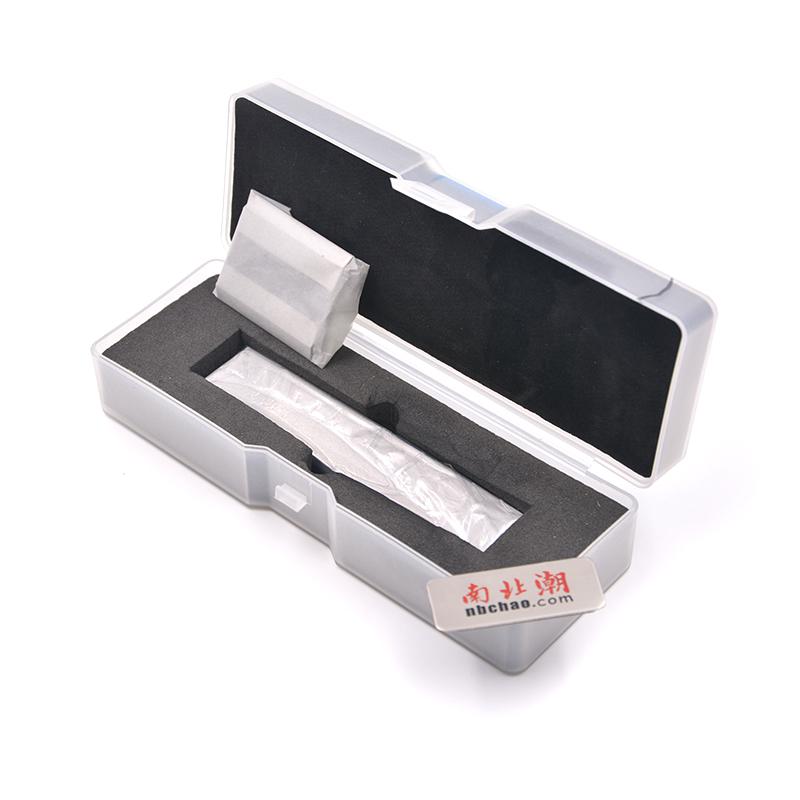

Small Fineness of Grind Gauge Pushen NBCHAO professional photo 3


FAQ
QWhat is the slot width of this Pushen 2 paths small scraper Fineness meter?
A Hello, the slot width is 12mm.
QIs this the small Fineness gauge mentioned in QB/T5477?
A OK
QFineness of electric conductive ink particles, is it measured with this scraper Fineness meter? How to measure?
A Fineness of electric conductive ink can be measured with scraper Fineness meter. For specific measurement methods, please refer to the operation manual or video of NBchao. Com Mall Knowledge Base or any Fineness meter details page.
QCarbon nanotube slurry with which type of Fineness gauge? Fineness about 5 to 10 error.
A It is recommended to use a Fineness gauge with a range of 0 to 15 μm, one path 2 paths is OK. If this range is expected to expand, choose a Fineness gauge with a range of 0 to 25 μm appropriately.
QWhat material is this? 304?
A Hello, 304 cannot be used as a scraper because it has no hardness. The materials used by domestic manufacturers are 4Cr13.
QWhat material is this scraper Fineness meter made of? Is it made of 304 stainless steel?
A Hello, because 304 has no hardness, it cannot be used as a scraper, and although 4Cr13 does not have the rust resistance of 304 and 440, it has high hardness after quenching, so the stainless steel of 4Cr13 is generally used in the industry as raw material; in addition, users generally need to clean and dry after using the scraper Fineness meter, and put it in the drying place, so that the service life of the Fineness meter will not be too short, thank you for your consultation!
