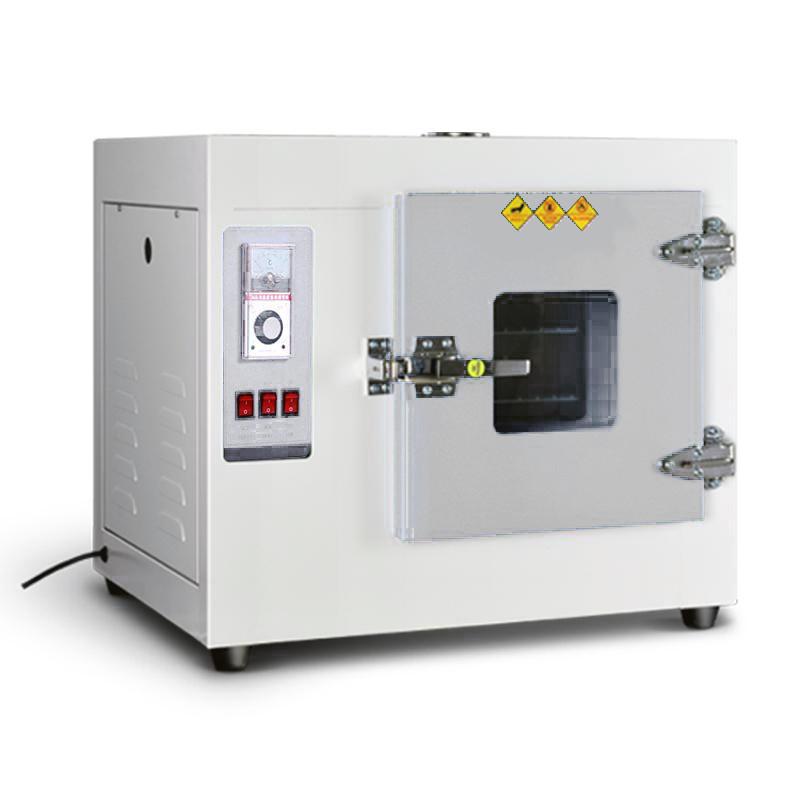

Kenton 101-1S pointer Electric Forced Air Drying Oven 70L with independent temperature limiter
SE
101-1S + independent temperature limiter
-
SANFA DHG-9202-1 Electric thermostatic Drying Oven 300 ℃/70L$ 377.00SE -
CHINA DHG-9203AE Desktop Forced Air Drying Oven 2050W/200L$ 635.00SE -
SANFA DHG-9101-1A Electrothermal thermostatic Drying Oven 70L/stainless steel$ 433.00SE -
SANFA DHG-9202-1A electric thermostatic Drying Oven 300 ℃/70L stainless steel$ 416.00SE -
SANFA GRX-70 Hot Air Sterilization Oven (Dry Heat Sterilizer) 70L$ 599.00SE
Kenton 101-1S + independent temperature limiter Pointer Electric Forced Air Drying OvenSPEC
Kenton 101-1S + independent temperature limiter Pointer Electric Forced Air Drying OvenDetails
Kenton 101-1S + independent temperature limiter Pointer Electric Forced Air Drying OvenPacking list
- SKU
- NB043537
- Temperature range
- RT+5~300℃
- Temperature Fluctuation
- ±1%
- Accuracy
- ±1℃
- Volume
- 70L
- Interior size
- 450*450*350mm
- Chamber material
- stainless steel
- Enclosure Material
- Metallic paint spraying
- thermostat
- Pointer
- Viewing Window
- Yes.
- Power
- 220V
- Input Power
- 0.8~1.6Kw
- Dimensions
- 690*760*520mm
- Standard number of laminates
- 2
- Laminate spacing
- 4cm
- Maximum number of layers
- 9
Suggestions for use
It is suitable for routine testing in industrial and mining enterprises, basic laboratories and workshops, and is not recommended for long-term uninterrupted use. Samples with high temperature uniformity and high water content are not recommended. For more valuable samples, it is recommended to be equipped with an independent temperature limiting controller.
Application
It is used for drying, baking, heat treatment and heating in industrial and mining enterprises and laboratory scientific research units, but it is not suitable for volatile, flammable, explosive and other items to avoid explosion.
Structural features
1. The thermostat is divided into two types: Dial-Type and microcomputer intelligent PID digital display;
2. The shell is sprayed with metal paint, and the overall design is beautiful and generous;
3. The hot air circulation system is composed of a low-noise fan and an air duct;
4. The inner tank is divided into two types: mirror stainless steel and galvanized steel;

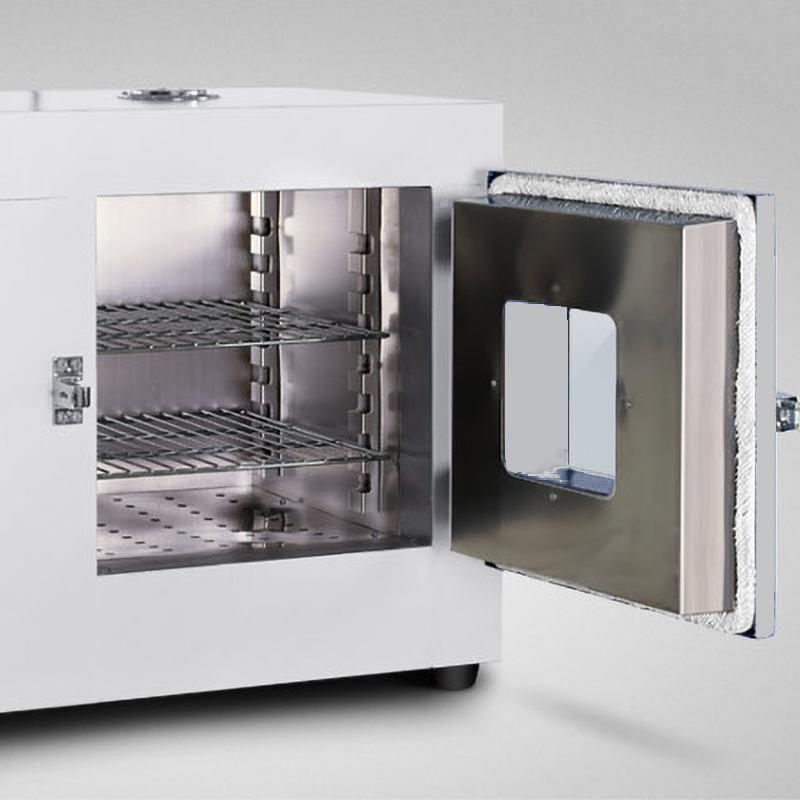

5. The height and number of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications;
6. The door is equipped with a double-layer tempered glass observation window, which can clearly observe the contents of the box.
Optional Accessories:
1. Intelligent digital display temperature controller with timing function;
2. Independent temperature limiting controller.
Product Specifications
Model | Studio Specifications mm (Height× Width×Depth) | Voltage | power | Temperature control range | precision | Volatility |
Pointer electric blowerDrying oven(galvanized bile liner) | ||||||
101-0 | 350×350×350mm | 220V | 0.8~1.6Kw | RT+5~300℃ | ±1℃ | ±1% |
101-1 | 450×450×350mm | 0.8~1.6Kw | ||||
101-2 | 550×550×450mm | 1.6~2.4Kw | ||||
101-3 | 750×600×500mm | 2~3Kw | ±2% | |||
101-4 | 1000×800×800mm | 380V | 3~4.8Kw | |||
101-5 | 1000×1000×1000mm | 4~6 | ||||
Digital display electric heatingForced Air Drying Oven(galvanized bile liner) | ||||||
101-0A | 350×350×350mm | 220V | 0.8~1.6Kw | RT+5~300℃ | ±1℃ | ±1% |
101-1A | 450×450×350mm | 0.8~1.6Kw | ||||
101-2A | 550×550×450mm | 1.6~2.4Kw | ||||
101-3A | 750×600×500mm | 2~3Kw | ±2% | |||
101-4A | 1000×800×800mm | 380V | 3~4.8Kw | |||
101-5A | 1000×1000×1000mm | 4~6Kw | ||||
Pointer electric Forced Air Drying Oven (stainless steel liner) | ||||||
101-0S | 350×350×350mm | 220V | 0.8~1.6Kw | RT+5~300℃ | ±1℃ | ±1% |
101-1S | 450×450×350mm | 0.8~1.6Kw | ||||
101-2S | 550×550×450mm | 1.6~2.4Kw | ||||
101-3S | 750×600×500mm | 2~3Kw | ||||
101-4S | 1000×800×800mm | 380V | 3~4.8Kw | ±2% | ||
101-5S | 1000×1000×1000mm | 4~6Kw | ||||
Digital display electric blower Drying Oven(Stainless steel liner) | ||||||
101-0AS | 350×350×350mm | 220V | 0.8~1.6Kw | RT+5~300℃ | ±1℃ | ±1% |
101-1AS | 450×450×350mm | 0.8~1.6Kw | ||||
101-2AS | 550×550×450mm | 1.6~2.4Kw | ||||
101-3AS | 750×600×500mm | 2~3Kw | ±2% | |||
101-4AS | 1000×800×800mm | 380V | 3~4.8Kw | |||
101-5AS | 1000×1000×1000mm | 4~6Kw | ||||
- 1GB/T 44184-2024《Stability tests for nitrocellulose mixtures》
- 2QJ 3215-2005《Epoxy resin sticking technical requirements for space electron element》
- 3JB/T 4279.7-2008《Verification procedure for test equipment of enamelled winding wire.Part 7:Forced circulating-air oven》
- 4SL 144.7-2008《Calibration method of Electric Forced Air Drying Oven》
