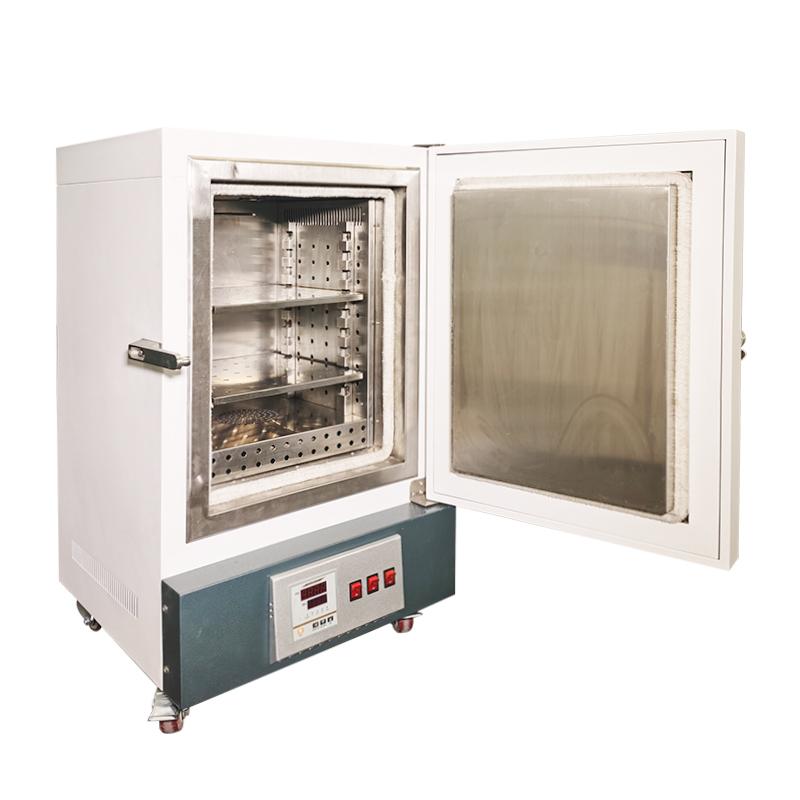

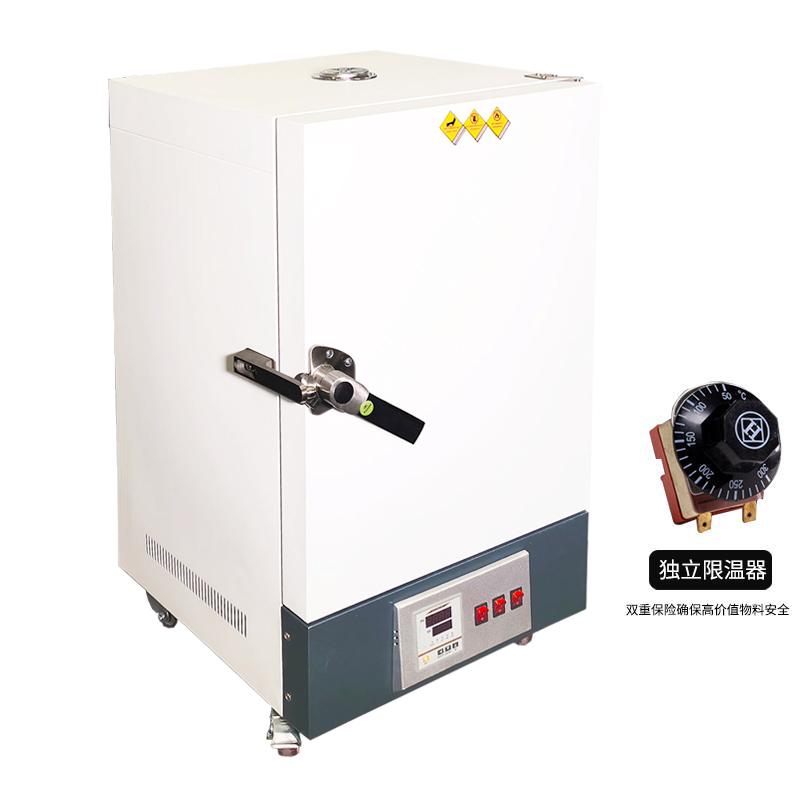

Kenton XCT-2AS high temperature Forced Air Drying Oven 270L with independent temperature limit controller
SE
XCT-2AS + independent temperature limiter
Kenton XCT-2AS + independent temperature limiter Blast high temperature Drying OvenSPEC
Kenton XCT-2AS + independent temperature limiter Blast high temperature Drying OvenDetails
Kenton XCT-2AS + independent temperature limiter Blast high temperature Drying OvenPacking list
- SKU
- NB043580
- Thermostat
- Microcomputer PID Intelligent Automatic Control system
- Temperature range
- 5~600℃
- Temperature Resolution
- ±0.5℃
- Temperature Fluctuation
- ±5%℃
- Dimensions
- 1350×830×900mm
- Interior size
- 750*600*600mm
- Volume
- 270L
- Chamber material
- Cold rolled sheet
- Nominal Power
- 6.5KW
- Power
- 380V
Application
It is widely used in drying, heat treatment and heating of test products in industrial and mining, scientific research, medical and health, jade processing and other units, but it is not suitable for volatile, flammable and explosive products to avoid explosion.
warn! It is strictly forbidden to put flammable, explosive and volatile items into the box for heating and drying. For high-value materials, it is better to install an independent temperature limiter to set the upper limit of the maximum temperature. Double insurance ensures that the materials will not fail due to the electronic components of the box. Excessive heating can lead to damage.
Structural features
1. Digital display intelligent temperature controller with microcomputer intelligent PID self-tuning function;

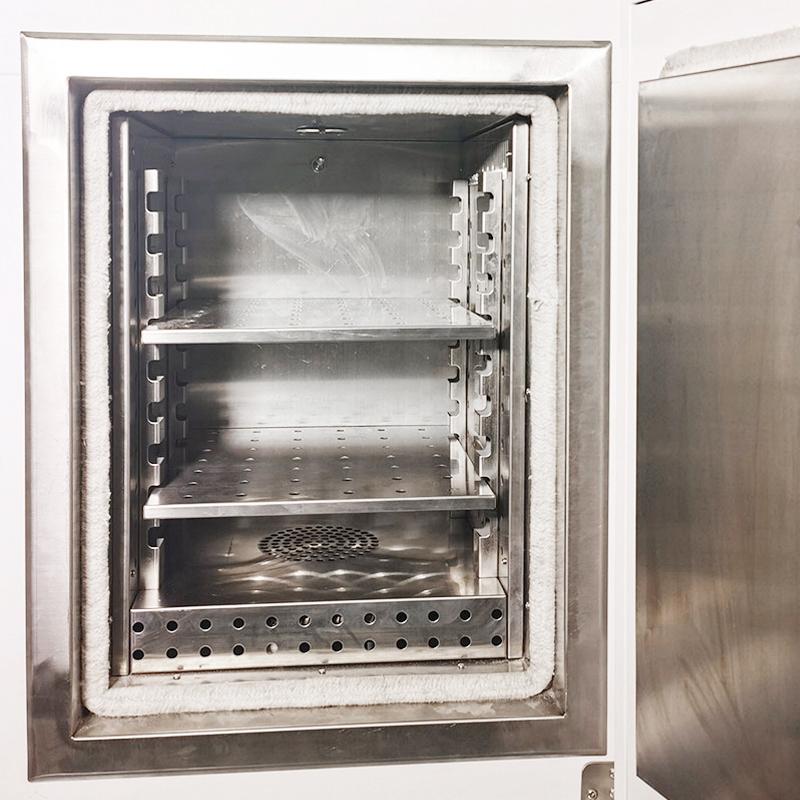

2. The inner tank is made of stainless steel plate, which has the characteristics of acid and alkali resistance and corrosion resistance;
3. The door of the box is a double-layer insulation material door seal, which can effectively insulate heat and prevent heat loss, and effectively save energy;
4. The heat-generating parts and fans are made of high-temperature-resistant materials to ensure safety and long service life.
