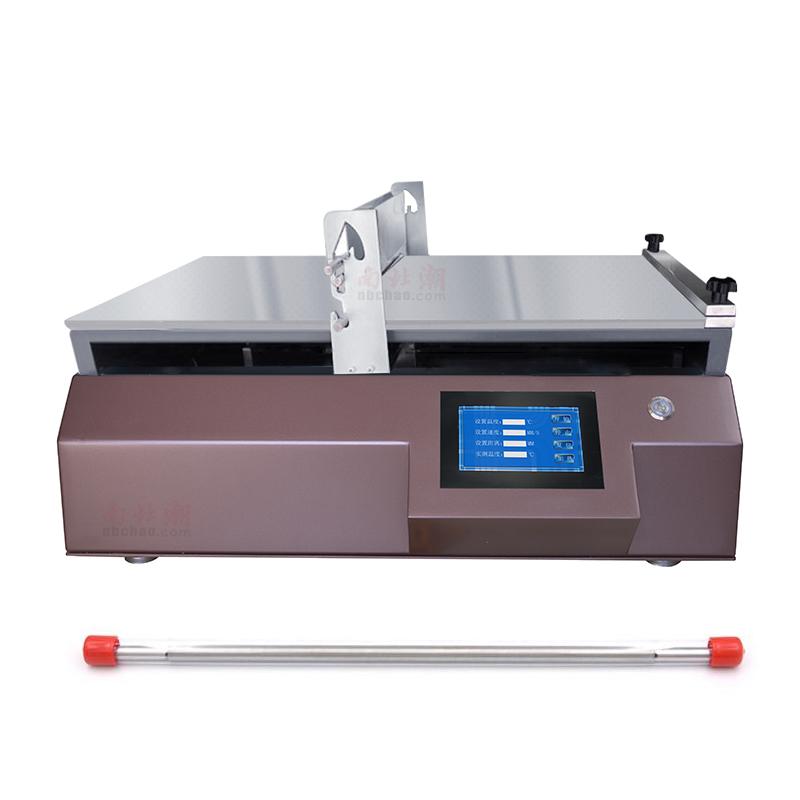

China Smoothing Rods Vacuum chuck coater hot-melt adhesive Film Applicator TBJ-A3-DJ4
SESmoothing Rods Spreader, with Vacuum chuck function, dedicated to hot-melt adhesive Spreader, Spreader thickness is 0~ 50μm, using touch screen operation, Spreader size 300 * 400mm.
$3180.00/set
PromotionLoading...
Coupon
Model：
TBJ-A3-DJ4
zy
Manufacturer authorization
Similar products
zy TBJ-A3-DJ4 Automatic Film ApplicatorSPEC
zy TBJ-A3-DJ4 Automatic Film ApplicatorDetails
zy TBJ-A3-DJ4 Automatic Film ApplicatorPacking list
- SKU
- NB043581
- Coating method
- Smoothing Rods Spreader
- Coating size
- 300*400mm
- Application width
- 300mm
- Coating speed
- 5~ 180Mm/s (< 5mm/s can be customized)
- Spreader thickness range
- 0~50μm
- Vacuum pump configuration
- external
- Vacuum Area
- 300 * 400Mm (can be customized)
- Vacuum aperture
- Φ1.2mm
- Control mode
- Touch screen control
- Regulator display Accuracy
- ±0.001mm
- Display
- digital explicit
- Total power consumption
- 2060W
- Host Power
- 220V 50Hz
- Dimensions
- 690*410*520mm
- Machine Weight
- 65Kg
- Coating table material
- aluminum alloy
- Vacuum pump size
- 380*180*280mm
- Optional
- Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- Customizable function
- Jet system device, UV solid-containing device, automatic inking system
- speed control
- Infinitely variable speed
TBJ-A3-DJ4
Automatic Film Applicator
Smoothing Rods Spreader, with Vacuum chuck function, dedicated to hot-melt adhesive Spreader, Spreader thickness is 0~ 50μm, using touch screen operation, Spreader size 300 * 400mm.
product description
TBJ-A3-DJ4 light rod type vacuum adsorption coating machine is a customized small film coating machine specially used for hot melt adhesive film coating. The size of the coating base is 300*400mm, and the coating speed is adjustable in the range of 5~180mm/s. Support coating thickness 0~50μm, external Vacuum Pump, adopt touch screen operation mode. With vacuum adsorption function, it can be equipped with different wire rods to meet high-precision coating on different films.
Optional
|
|
|
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
