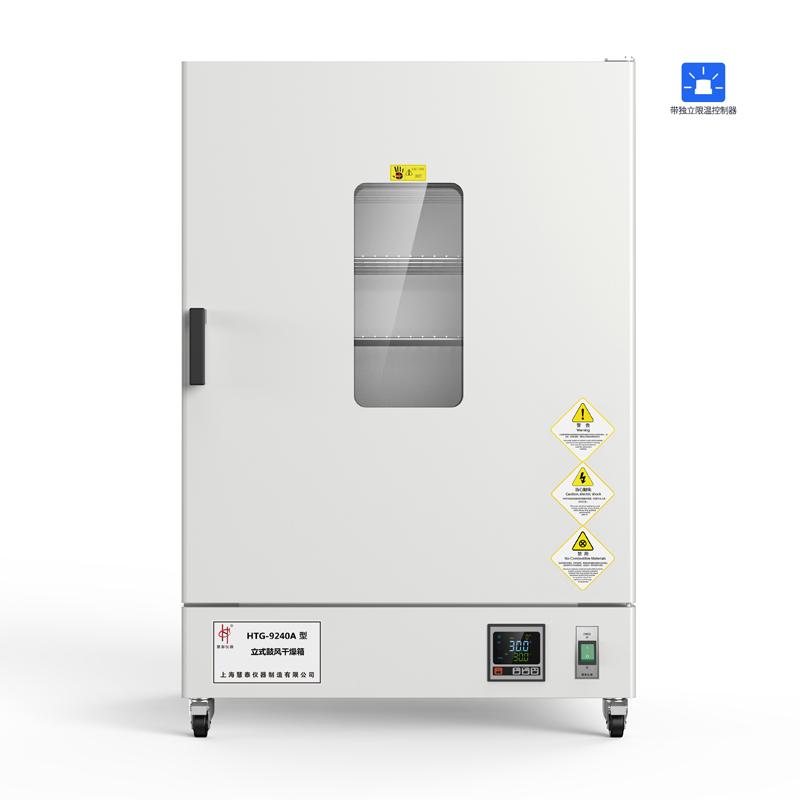

HUITAI HTG-9420A Vertical Blast Drying Oven 420L/250 ℃ with independent temperature limit controller

HTG-9420A + independent temperature limit controller

Vertical blast drying oven

With independent temperature controller, German imported blower, LCD digital display, with 3 shelves, Inner chamber dimensions 600 * 550 * 1300mm, volume 420L.

Overview

Huitai HTG-9420A vertical Forced Air Drying Oven is suitable for scientific research, colleges and production departments such as environmental protection, sanitation and epidemic prevention, drug inspection, agriculture and livestock, and aquatic products. It is a special constant temperature equipment for water body analysis and BOD determination, bacteria, mold, microorganism culture, preservation, plant cultivation and breeding test.

Features

1. Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand and easy to operate.

2. The fan speed control mode is adopted to improve the temperature uniformity of the working room.

3. The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, and there is no trouble of manual adjustment.

4. It adopts a microcomputer PID fuzzy processing controller with over-temperature deviation protection to quickly reach the preset temperature and run stably.

5. The blower imported from Germany is used, and the service life is extended by 2 times

6. The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.

7. The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.

8. Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents.

9. With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)

plan

Optional

Intelligent program controller

Independent temperature limit controller

Embedded printer

RS485 interface and special software

Test hole 25mm/50mm

Parameter comparison of HTG series vertical Forced Air Drying Oven

Packing list：Host X1, fuse X2, certificate X1, manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
