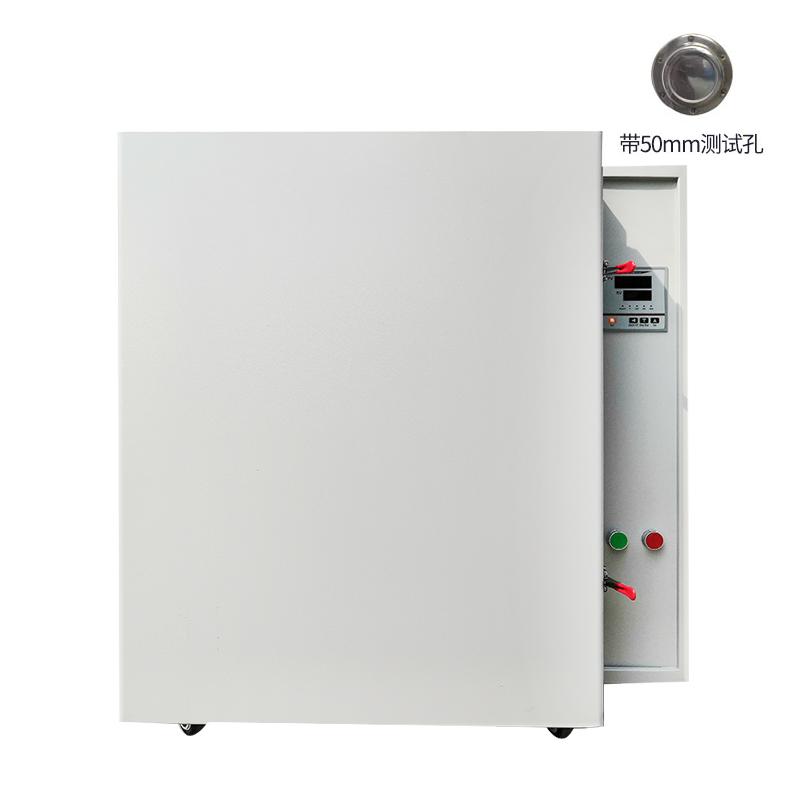

HUITAI HHG-9249A High temperature oven volume 240L with test hole 50mm
SEWith test hole 50mm, volume 240L, Inner chamber dimensions 500 * 600 * 750mm, with microcomputer intelligent temperature control instrument, hot air circulation system consists of low noise fan and air duct.
$2031.00/set
PromotionLoading...
Coupon
Model：
HHG-9249A + test hole 50mm
HuiTai HHG-9249A + test hole 50mm High temperature blast Drying OvenSPEC
HuiTai HHG-9249A + test hole 50mm High temperature blast Drying OvenDetails
HuiTai HHG-9249A + test hole 50mm High temperature blast Drying OvenPacking list
- SKU
- NB043669
- Temperature range
- RT+30~500℃
- Temperature Fluctuation
- ±1℃
- Temperature Resolution
- 1℃
- Volume
- 240L
- Interior size
- 500*600*750mm
- Chamber material
- Steel plate or stainless steel plate
- Shelf (std.)
- 2pcs
- Power
- AC220V 50Hz/16A
- Input Power
- 4000W
- Optional accessories
- Independent temperature limit alarm system, RS485 interface
- Timer
- 1~9999min
- Dimensions
- 690*780*1100mm
HHG-9249A + test hole 50mm
High temperature blast Drying Oven
With test hole 50mm, volume 240L, Inner chamber dimensions 500 * 600 * 750mm, with microcomputer intelligent temperature control instrument, hot air circulation system consists of low noise fan and air duct.
Overview
It is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research units.
Features
The working room adopts good steel plate or stainless steel plate.
The microcomputer intelligent temperature controller has the functions of setting, measuring temperature, dual digital display, timing, power suppression and self-tuning, and the temperature control is accurate and reliable.
The hot air circulation system is composed of low-noise fan and air duct, which can effectively ensure the uniform temperature in the working room.
Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)
With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)
FAQ
QI need a drying oven for Lab Glass ware drying and sterilizing, what do you recommend?
A
HUITAI HHG-9249A + high temperature blast drying oven is recommended. It adopts hot air circulation system to ensure uniform temperature, microcomputer temperature control accuracy of +/- 1 ℃, suitable for thorough drying and sterilizing of Glass utensils. 50mm test hole is convenient for real-time monitoring, and stainless steel Inner chamber material is more corrosion resistant.
QThe factory needs to stoving electronic components, and the temperature should be stable and uniform. Which one is suitable?
A
It is recommended to use HUITAI HHG-9249A + drying oven. Its hot air circulation system is composed of a low-noise fan and an air duct, which can ensure the uniformity of temperature in the working room and avoid local overheating damage to components. The wide temperature zone of 30-500 ° C meets different process requirements, and the temperature limit alarm system can also be selected to ensure production safety.
QFor material wax melting experiments, it takes a long time to be thermostatic and record temperature changes. What configuration should I choose?
A
The HUITAI HHG-9249A + version with RS485 interface is recommended. Its timing function can reach up to 9999 minutes to meet the needs of long-term wax melting. Linear dispersion can be recorded in real time through the RS485 connection computer, and the temperature resolution of 1 ° C can accurately monitor the changes of the wax melting process.
QOur laboratory needs drying some metal tools, the temperature is about 200 degrees, do you have a suitable drying oven recommendation?
A
HHG-9249A + high temperature blast drying oven Temperature range RT + 30~ 500 ℃, fully meet the needs of 200 ℃ drying, hot air circulation system can ensure uniform temperature and avoid local overheating. Microcomputer temperature control accuracy +/- 1 ℃, simple and reliable operation, 240L large capacity is also very suitable for laboratory batch processing vessels.
QDo we need wax mold casting wax melting equipment, this drying oven can be used in wax melting process?
A
Yes. HHG-9249A + Temperature range up to 500 ° C covers the melting point of common wax materials, and hot air circulation can evenly heat the wax. 240L large capacity is suitable for batch processing. It is recommended to choose a timing function. It will work automatically after setting the time, which is worry-free and safe.
