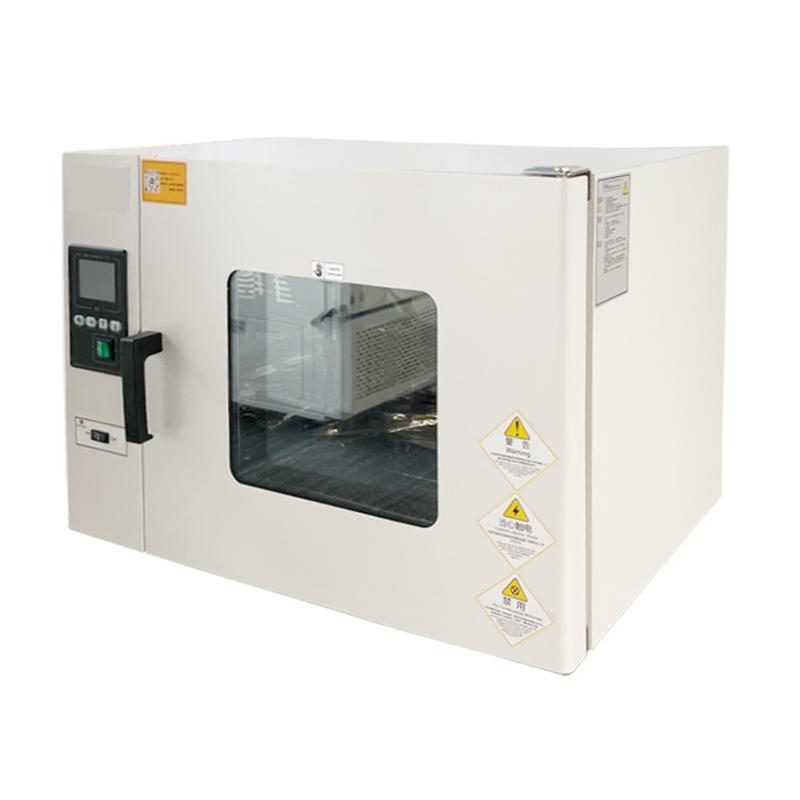

HUITAI DHG-9030A blast oven 250 ℃/30L with smart program controller

DHG-9030A + smart program controller

Blast Drying Oven

With smart program controller, volume 30L, shelf (std.) 2pcs, liner is made of mirror stainless steel, box shell is made of good Cold rolled steel plate, surface electrostatic spraying.

Overview

Huitai DHG-9030A Forced Air Drying Oven is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research units.

Features

1) Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)

2) The fan speed control method is adopted to improve the temperature uniformity of the studio.

3) The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, without the trouble of manual adjustment.

4) It adopts a microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.

5) The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.

6) The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.

7) Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)

8) With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)

Optional

Intelligent program controller

Independent temperature limit controller

Embedded printer

RS485 interface and special software

Test hole 25mm/50mm

DHG series

Packing list：Host X1, shelf X2, fuse X2, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
