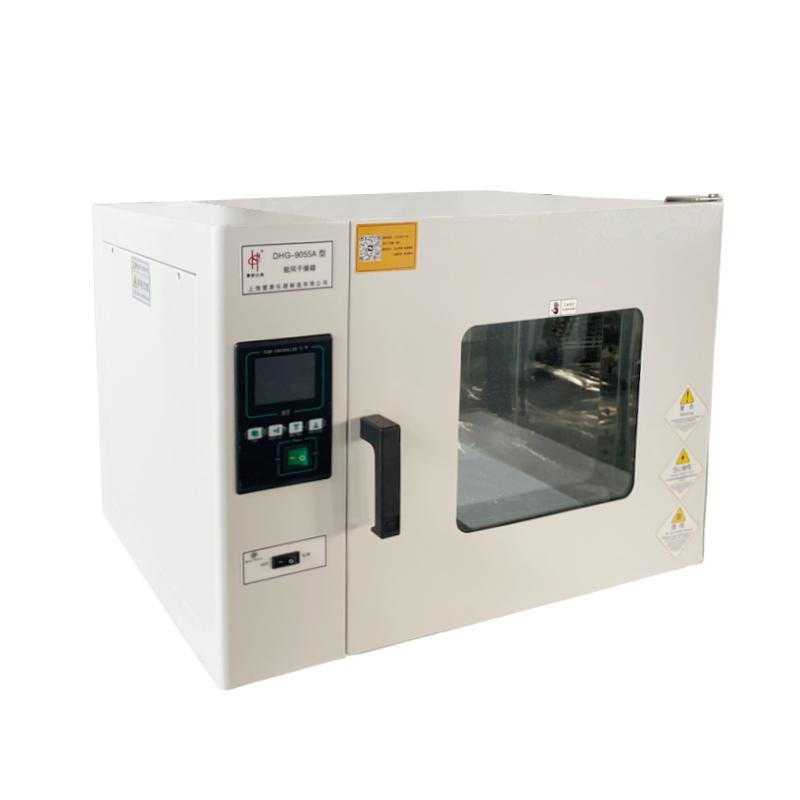

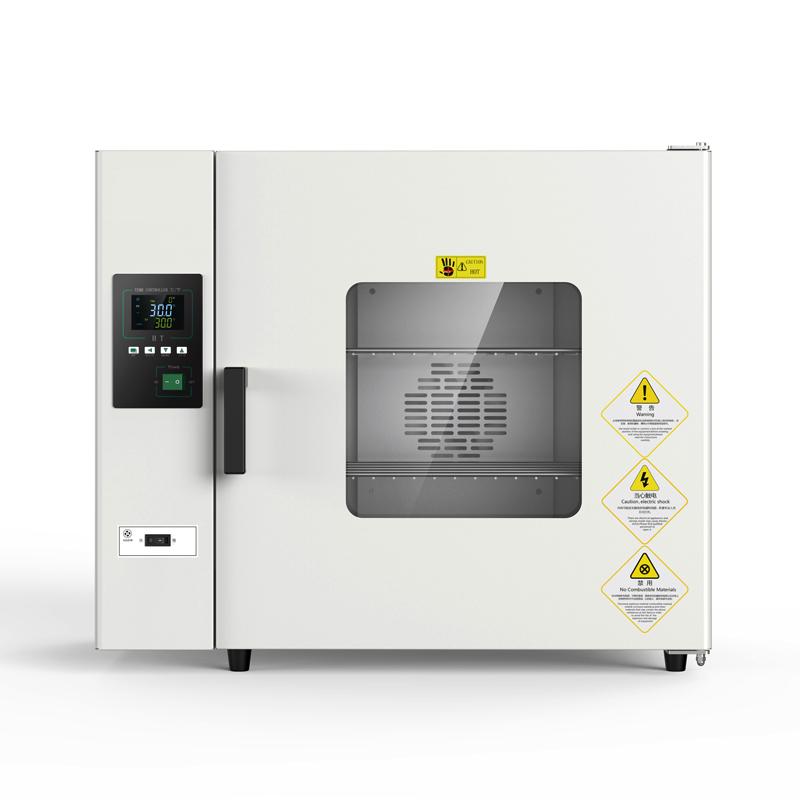

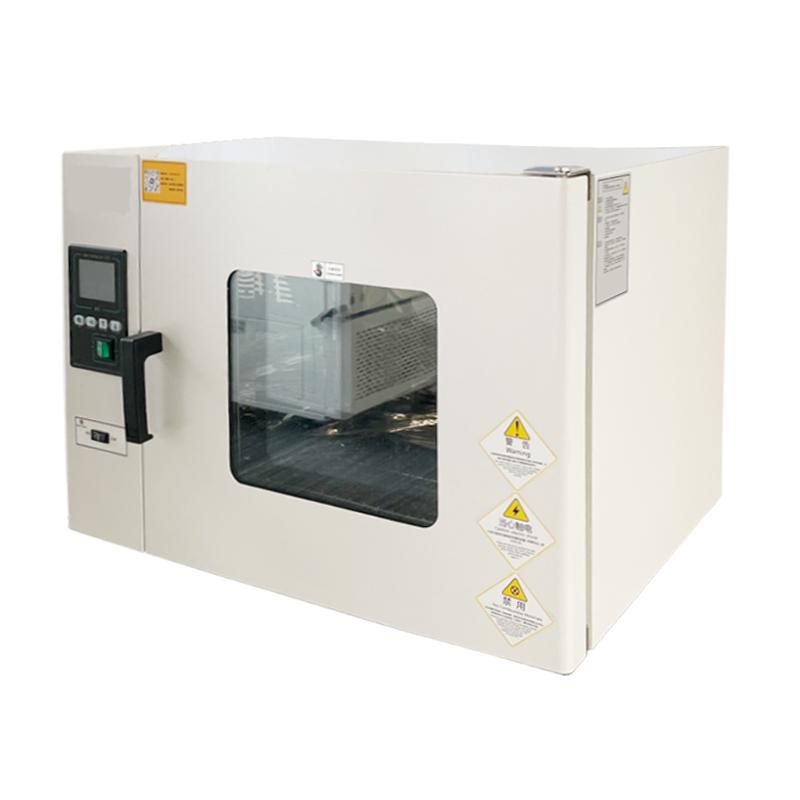

HUITAI DHG-9070A digital Drying Oven 250 ℃/80L with smart program controller
SE
DHG-9070A + smart program controller
HuiTai DHG-9070A + smart program controller Blast Drying OvenSPEC
HuiTai DHG-9070A + smart program controller Blast Drying OvenDetails
HuiTai DHG-9070A + smart program controller Blast Drying OvenPacking list
- SKU
- NB043672
- Power supply voltage
- AC 220V 50Hz
- Temperature range
- RT+10~250℃
- Temperature Fluctuation
- ±1℃
- Temperature Resolution
- 0.1℃
- Input Power
- 1550W
- Volume
- 80L
- shelf (std.)
- 2pcs
- Timer Range
- 1~9999min
- Working size (mm)
- 447*335*448
- Dimensions (mm)
- 740*620*630
- Liner size (mm)
- 447*388*448
Overview
Huitai DHG-9070A Forced Air Drying Oven is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research units.
Features
1) Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)
2) The fan speed control method is adopted to improve the temperature uniformity of the studio.
3) The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, without the trouble of manual adjustment.
4) It adopts a microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.
5) The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.
6) The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.
7) Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)
8) With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)
plan
Optional accessories
Intelligent program controller
Independent temperature limit controller
Embedded printer
RS485 interface and special software
Test hole 25mm/50mm
DHG series
| model | Temperature control range | input power | volume |
| DHG-9030A | RT+10~250 | 850 | 30 |
| DHG-9050A | 1100 | 50 | |
| DHG-9070A | 1550 | 80 | |
| DHG-9140A | 2050 | 136 | |
| DHG-9240A | 2500 | 220 | |
| DHG-9240A Heightening | 2500 | 260 | |
| DHG-9035A | RT+10~300 | 850 | 30 |
| DHG-9055A | 1100 | 50 | |
| DHG-9075A | 1550 | 80 | |
| DHG-9145A | 2050 | 136 | |
| DHG-9245A | 2500 | 220 | |
| Unit: °C, W, L | |||
| other parameters | |||
| Constant temperature fluctuation | ±1℃ | ||
| temperature resolution | 0.1°C | ||
| Carrier | 2pcs (standard configuration) | ||
| Timer Range | 1~9999min | ||
- 1GB/T 44184-2024《Stability tests for nitrocellulose mixtures》
- 2JC/T 975-2005《Waterproofing coatings for concrete bridge and road surface》
- 3JB/T 4279.7-2008《Verification procedure for test equipment of enamelled winding wire.Part 7:Forced circulating-air oven》
- 4SL 144.7-2008《Calibration method of Electric Forced Air Drying Oven》
- 5GB/T 328.26-2007《Test methods for building sheets for waterproofing - Part 26: Bitumen sheets for waterproofing-dissoulble composite of membrane (impregnated and coated asphalt amount)》
- 6GB/T 3810.3-2016《Test methods of ceramic tiles—Part 3: Determination of water absorption, apparent porosity, apparent relative density and bulk density》
- 7GB/T 30810-2014《Test methods for leachable ions of heavy metals in cement mortar》
- 8GB/T 13173-2021《Surface active agents—Test methods for detergents》
- 9GB/T 9966.2-2020《Test methods for natural stone—Part 2:Determination of dry,wet and after freezing flexural strength》
- 10SL/T 144.7-2008《Calibration method of Electric Forced Air Drying Oven》
