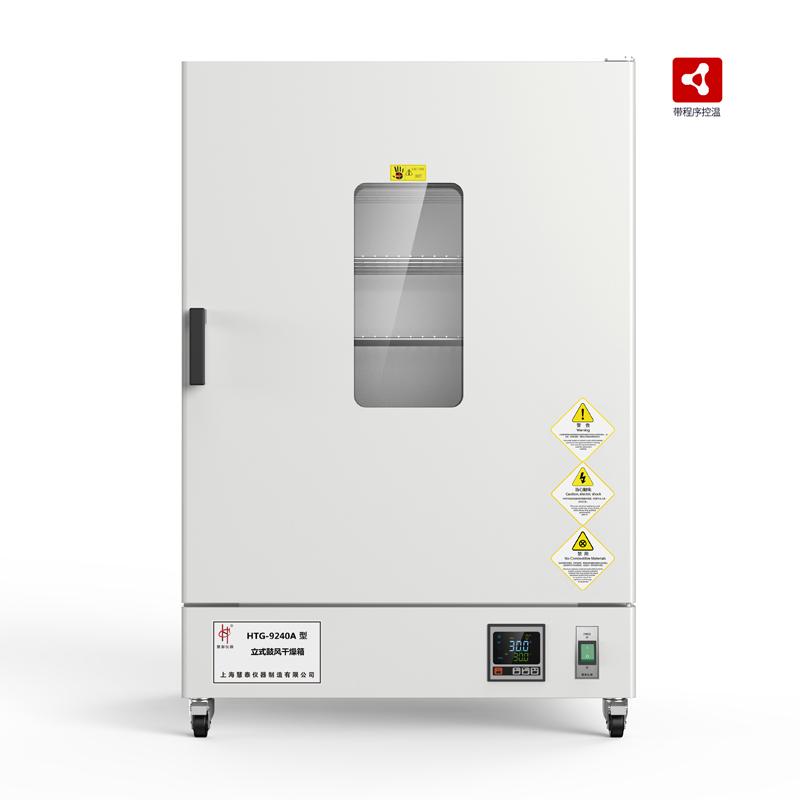

HUITAI HTG-9140A laboratory blast oven 150L with smart program controller
SE
HTG-9140A + smart program controller
HuiTai HTG-9140A + smart program controller Vertical Forced Air Drying OvenSPEC
HuiTai HTG-9140A + smart program controller Vertical Forced Air Drying OvenDetails
HuiTai HTG-9140A + smart program controller Vertical Forced Air Drying OvenPacking list
- SKU
- NB043688
- Power
- AC 220V 50Hz
- Temperature range
- RT+10~250℃
- Temperature Fluctuation
- ±1℃
- Temperature Resolution
- 0.1℃
- Input Power
- 1550W
- Interior size
- 450*550*550mm
- Dimensions
- 640*710*905mm
- Volume
- 150L
- Shelf (std.)
- 2pcs
- Timer
- 1~9999min
Overview
Huitai HTG-9140A vertical Forced Air Drying Oven is suitable for scientific research, colleges and production departments such as environmental protection, sanitation and epidemic prevention, drug inspection, agriculture and livestock, and aquatic products. It is a special constant temperature equipment for water body analysis and BOD determination, bacteria, mold, microorganism culture, preservation, plant cultivation and breeding test.
Features
1. Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand and easy to operate.
2. The fan speed control mode is adopted to improve the temperature uniformity of the working room.
3. The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, and there is no trouble of manual adjustment.
4. It adopts a microcomputer PID fuzzy processing controller with over-temperature deviation protection to quickly reach the preset temperature and run stably.
5. The blower imported from Germany is used, and the service life is extended by 2 times
6. The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.
7. The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.
8. Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)
9. With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)
plan
Optional
Intelligent program controller
Independent temperature limit controller
Embedded printer
RS485 interface and special software
Test hole 25mm/50mm
Parameter comparison of HTG series vertical Forced Air Drying Oven
| model | Studio size(mm) | volume | Standard loading bracket |
| HTG-9070A | 400×425×445 | 80L | 2pcs |
| HTG-9140A | 450×550×550 | 150L | 2pcs |
| HTG-9240A | 500×600×750 | 250L | 2pcs |
| HTG-9420A | 600×550×1300 | 420L | 3pcs |
| HTG-9620A | 800×640×1290 | 620L | 4pcs |
| HTG-9920A | 1000×600×1600 | 1000L | 4pcs |
| Other parameters | |||
| Voltage | AC220V 50HZ | ||
| Temperature control range | RT+10~250℃ | ||
| Constant temperature fluctuation | ±1℃ | ||
| temperature resolution | 0.1°C | ||
| Timer Range | 1~9999min | ||
- 1 《Standard Specification for Gravity-Convection and Forced-Ventilation Ovens》
- 2JC/T 975-2005《Waterproofing coatings for concrete bridge and road surface》
- 3SL 144.7-2008《Calibration method of Electric Forced Air Drying Oven》
- 4QB/T 2623.4-2003《Test methods of soaps Determination of moisture and volatile matter content in soaps-Oven method》
- 5GB/T 3810.3-2016《Test methods of ceramic tiles—Part 3: Determination of water absorption, apparent porosity, apparent relative density and bulk density》
- 6GB/T 13173-2021《Surface active agents—Test methods for detergents》
- 7GB/T 9966.2-2020《Test methods for natural stone—Part 2:Determination of dry,wet and after freezing flexural strength》
- 8SL/T 144.7-2008《Calibration method of Electric Forced Air Drying Oven》
- 9HG/T 3343-1985《Paint film oil resistance test method》
