HUXI LSYM-3L Experimental Vertical Grinder

SE
Ground kettle material double-decked stainless steel layer kettle, Rotation speed 3000rp/min, choose three-phase asynchronous motor, lifting method is spring lifting.
$1000.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

HuXi LSYM-3L Experimental Vertical GrinderSPEC

HuXi LSYM-3L Experimental Vertical GrinderDetails

HuXi LSYM-3L Experimental Vertical GrinderPacking list

SKU
NB043694
Motor Power
0.75kw
Rotation speed
3000rp/min
Lifting stroke
200mm
Grinding kettle Volume
3L
Grinding kettle material
Double-decked stainless steel laminated kettle with circulating water to chill down
Power
220V
Lifting method
Spring lift
grinding medium
Zirconia beads, about 1.6-1.8mm in size
LSYM-3L
Experimental Vertical Grinder
Ground kettle material double-decked stainless steel layer kettle, Rotation speed 3000rp/min, choose three-phase asynchronous motor, lifting method is spring lifting.

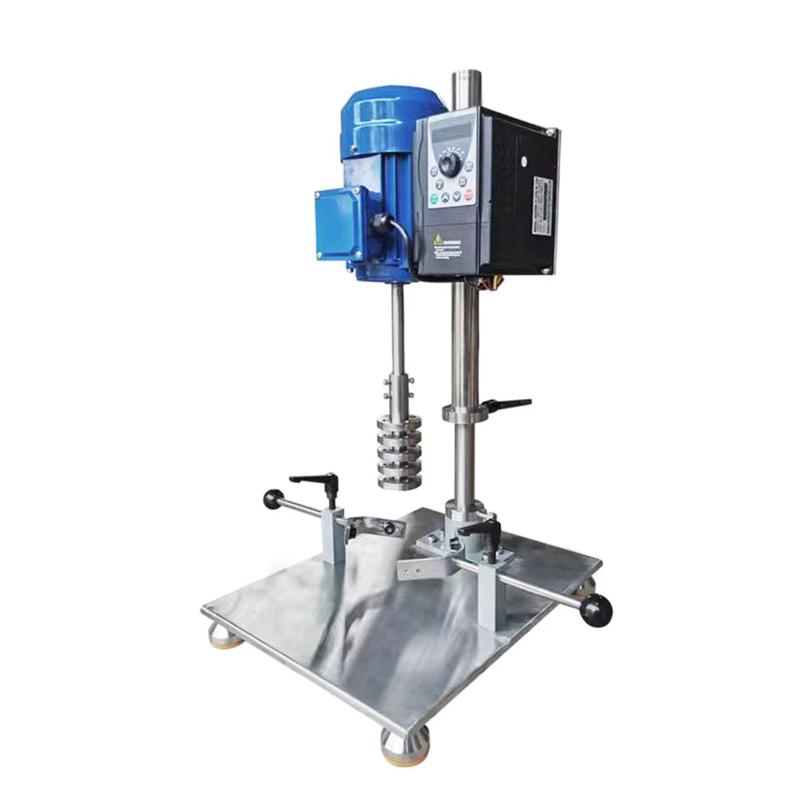

HUXI LSYM-3L Experimental Vertical Grinder Picture

Introduction

The laboratory vertical Grinder is suitable for wet grinding of medium and low viscosity fluids. It integrates dispersion and grinding functions. The two processes of dispersion and grinding are completed by one machine and one container. It has the functions of dispersion, refinement and grinding. High efficiency, good grinding fineness and easy cleaning. Widely used in the dispersion, mixing and grinding of materials in experimental liquids such as factories, scientific research institutions, colleges and medical units. This laboratory vertical Grinder has been widely used in pigments, inks, food, coatings, biology, cosmetics and other product development, experiments and other fields.

Product principle

In the laboratory vertical Grinder, the high-speed operation of the motor drives the pull rod and the self-priming impeller to rotate to generate a strong eddy current. The grinding medium in the lever drive cavity generates forces in all directions, and the particles in the material are constantly collided and rubbed by the medium, resulting in a smaller particle size and a narrower particle size range; the high-speed operation of the grinding disc has a very significant grinding dispersion mixing effect.

Features

Select three-phase asynchronous motor, no spark/dust, higher safety performance, low noise, sufficient power, can run for a long time, and easily meet a variety of high-demand dispersion and stirring semi-production requirements.

The grinding head adopts finishing treatment, the operation is more stable and lasting, and the discharge effect is better.

The three-phase asynchronous motor is adopted, which can handle high viscosity of materials and can work continuously for a long time.

The base and power distribution cabinet are designed with high-quality stainless steel cladding to avoid contamination of materials during use, resistance to cleaning and rust.


FAQ
QOur laboratory needs to process pigment and inks samples. Is there any suitable grinding equipment recommended?
A HUXI LSYM-3L experimental vertical Grinder is recommended. It is specially designed for medium and low viscosity materials such as pigments and inks, integrates dispersion and grinding functions, uses zirconia bead medium to refine particles efficiently, 3L volume is suitable for experimental treatment, and stainless steel material is easy to clean to avoid cross-contamination.
QWhen doing cosmetic research and development, how to choose the right laboratory grinder?
A It is recommended to use HUXI LSYM-3L vertical Grinder. It generates strong eddy current through high-speed dial and self-priming impeller, which can evenly refine cosmetic raw materials and ensure that the paste is delicate; the three-phase motor has a spark-free design that is particularly safe and suitable for long-term processing of semifluids such as emulsion and essence, meeting the high requirements of fineness and stability in research and development.
QWhat should we pay attention to when grinding cosmetic raw materials? What equipment should we choose?
A Cosmetic raw materials require hygiene and safety, HUXI this Grinder is made of stainless steel, easy to clean, no spark design to avoid pollution, zirconia beads grinding medium is mild and does not destroy active ingredients, especially suitable for the experimental development of emulsion, essence and other products.
QBiological sample grinding needs to take into account the dispersion and mixing functions, is there a recommendation?
A LSYM-3L Vertical Grinder integrates dispersion and grinding. The lever and impeller generate strong eddy current to achieve uniform mixing, and at the same time refine the particles through medium collision. It is very suitable for biological experimental applications such as cell crushing and tissue homogenization.
Q1) Grinding materials: dioxide, precipitation barium sulfate, zinc phosphoric acid, mica powder, talc powder The slurry of the mixture 2) The ground material uses water as the dispersion phase. Solid content of mixed material slurry is 75% -85% left Right. The viscosity is around 90KU. 3) slurry grinding capacity requirements: 2-3 kg slurry/time 4) slurry fineness of grinding requirements: less than 20 microns 5) Grinding time requirements: test slurry fineness before grinding. After grinding for 1 hour, 1.5 Hours, 2 hours and more, test the fineness separately, and grind until the fineness requirements are met
A With LSYM-3L Experimental Vertical Grinder, you can meet
