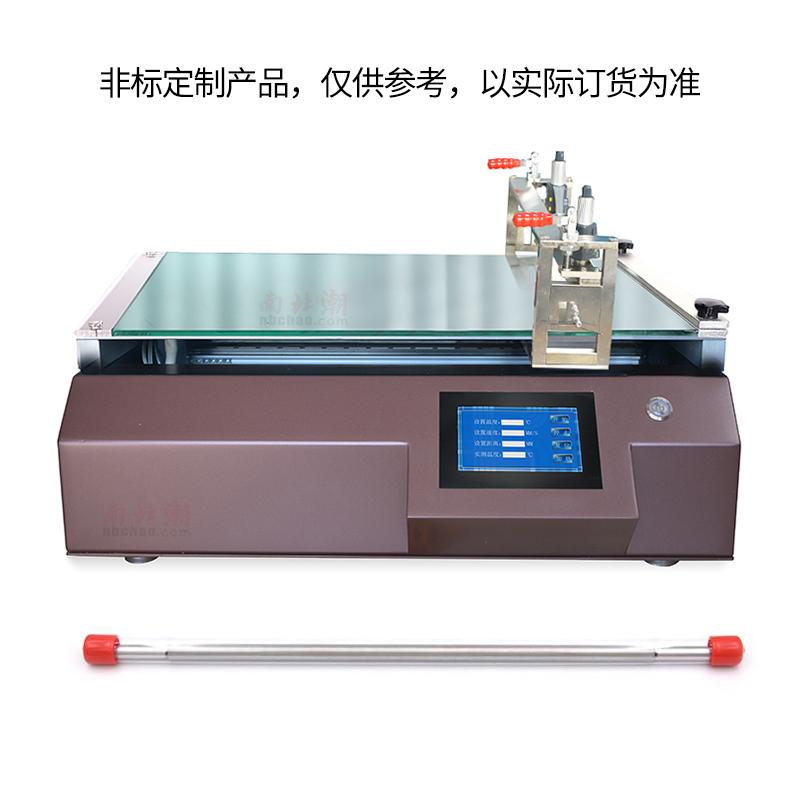

China TBJ-B2-DJ2 drawdown Bar & blade Vacuum chuck Experimental Film Applicator coating machine
SE
TBJ-B2-DJ2
-
HuiNuo TM 2200/02 drawdown blade Vacuum adsorption Film Applicator Adjustable bracket height, effective Spreader area 400 * 400mm$ 7066.00SE -
CHINA metering rod & drawdown blade Laboratory Film Applicator TBJ-X2-DJ14 Coating size 750 * 1100mm$ 12507.00SE -
HuiNuo TM3200Pro/02 Bar & drawdown blade vacuum adsorption laboratory coater effective area 400 * 500mm$ 5978.00SE
zy TBJ-B2-DJ2 Automatic Film ApplicatorSPEC
zy TBJ-B2-DJ2 Automatic Film ApplicatorDetails
zy TBJ-B2-DJ2 Automatic Film ApplicatorPacking list
- SKU
- NB043715
- Spreader thickness range
- 0.01~ 10Mm drawdown blade can be lifted
- Coating speed
- 5~ 180Mm/s (< 5mm/s can be customized)
- Coating size
- 500mm*500mm
- Spreader time
- Digital display, different speed, time Accuracy control,
- Coating rod specification
- Standard 1 China wire rod and 1 imported wire rod with Accuracy up to 1μm
- Application width
- 500mm
- Drawdown blade length
- 500mm
- Host Power Supply
- 220V 50Hz 1700W
- Dimensions
- 800 * 700 * 500mm (non-standard customized products, subject to the actual customized size)
- Weight
- Net Weight 80KG (non-standard customized products, subject to the actual customized size)
- speed control
- Infinitely variable speed
- Coating table material
- Glass plate
- Optional
- Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- Customizable function
- Jet system device, UV solid-containing device, automatic inking system
- Vacuum aperture
- Φ1.2mm
- Vacuum hole spacing
- 20*20mm
- Vacuum pump size
- 380*180*280mm
- substrate thickness
- ≤15mm
product description
TBJ-B experimental small-scale coating testing machine all adopts imported accessories, and the price is excellent and low. It has been favored by many R&D institutions of multinational companies, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the effect of coating and glue, to ensure the uniformity and stability of coating and glue.
Since the main factors affecting the coating film are the coating speed and the pressure applied on the Film Applicator, etc., the coatings painted manually are often inconsistent, especially the differences between different people are even greater, which is why This makes it difficult to compare test results between samples. The company's automatic Film Applicator is carefully designed to allow the operator to conveniently apply precise wet films on different substrates, which greatly improves the reproducibility of the coating film.
This automatic coating machine is equipped with 1 domestic (CN) wire rod and 1 imported wire rod as standard, and the coating accuracy of the imported wire rod is as high as 1μm .
