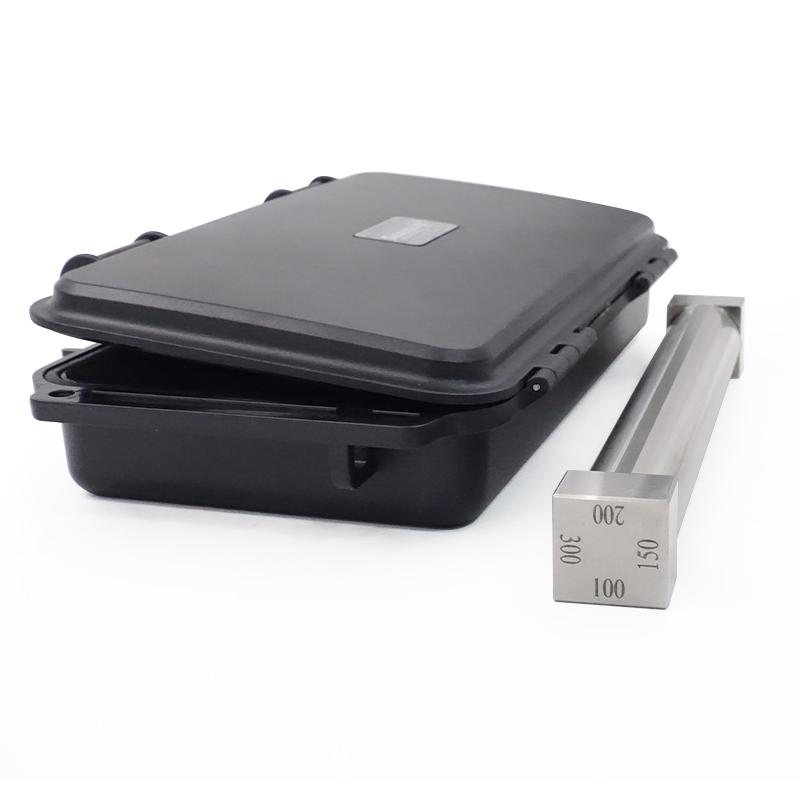

CHINA Quadrilateral Film Applicator SZQ-160 200/230/250/300μm
SE
SZQ-160 200/230/250/300
HuiNuo SZQ-160 200/230/250/300 Film ApplicatorSPEC
HuiNuo SZQ-160 200/230/250/300 Film ApplicatorDetails
HuiNuo SZQ-160 200/230/250/300 Film ApplicatorPacking list
- SKU
- NB043745
- type
- 4-sided
- WFT
- 200/230/250/300μm
- Application width
- 160mm
- material
- Stainless steel material
The four-sided Wet Film Applicator is used for manual coating film proofing in experiments such as coatings, inks, and paints. It can also be placed on an automatic coating machine for film production. It has four coating film thicknesses, SZQ-160 200/230/250/300 Made of high-quality wear-resistant and corrosion-resistant alloy steel, the coating thickness is 200, 230, 250, 300 μm, and the coating width is 160mm .
Film applicators provide precise control of wet or dry film thickness. During routine quality control and research and development tests, coating covering power, opacity, scrub resistance, anti-sag performance and other quality tests all require a coating with good consistency and good repeatability.
Features
1. 9Cr18Mo high-hardness stainless steel material has good wear resistance and corrosion resistance, with a hardness value of 50~55HRC.
2. The accuracy is as high as ±2μm to ensure the accuracy of the experiment.
3. Smooth surface, diverse styles, wide range of applications, and supports customized specifications
4. It adopts imported three-coordinate detection accuracy and comes with factory inspection report, which can withstand measurement.
Preparator series parameter table
| name | Specificationsmm | Wet film thickness μm |
| single sided Applicator | Total length 80, coating width 50, 75 | 50, 75, 100, 125, 150, 175, 200 |
| Double sided Applicator | Total length 100, coating width 80 | 25, 50, 75, 100, 150, 175, 200, 300, 400 |
| Frame Applicator | Total length 90, coating width 80 | 30, 50, 60, 90, 120, 150, 200 |
| Eight-sided Applicator | Total length 90, coating width 68 | 50, 75, 100, 125, 150, 175, 200 |
| Eight-sided Applicator | Total length 100, coating width 80 | |
| Square Applicator | 25x25, coating width 16 | 37, 50, 75, 100 |
| Square Applicator | 50x50, coating width 41 | 50, 100 |
| Standard four-sided Applicator | Total length 100, coating width 80 | All specifications and sizes support non-standard customization |
| Extended four-sided Applicator | Total length 190, coating width 160 |
