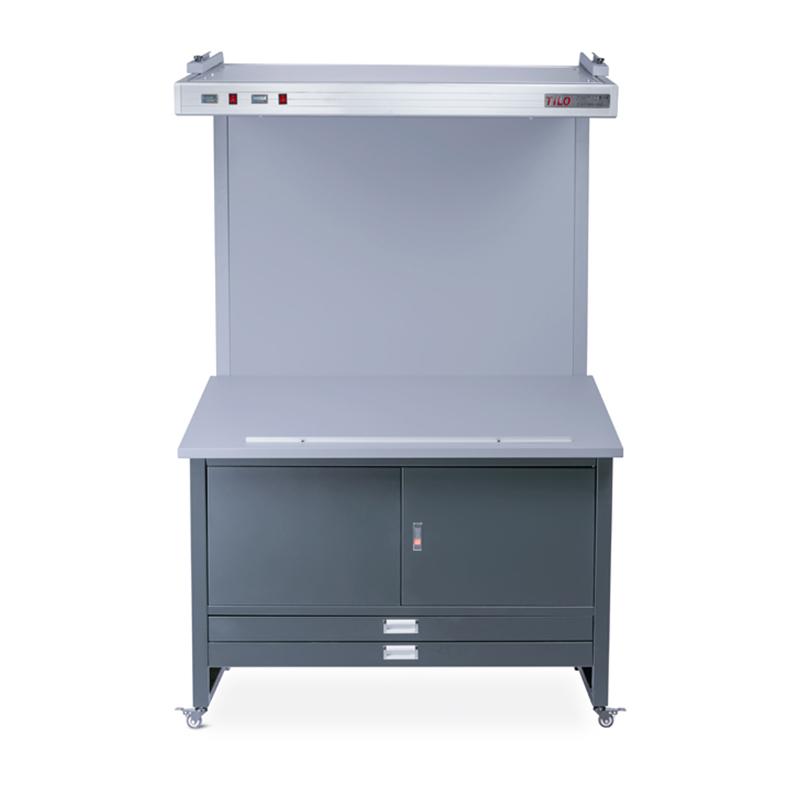

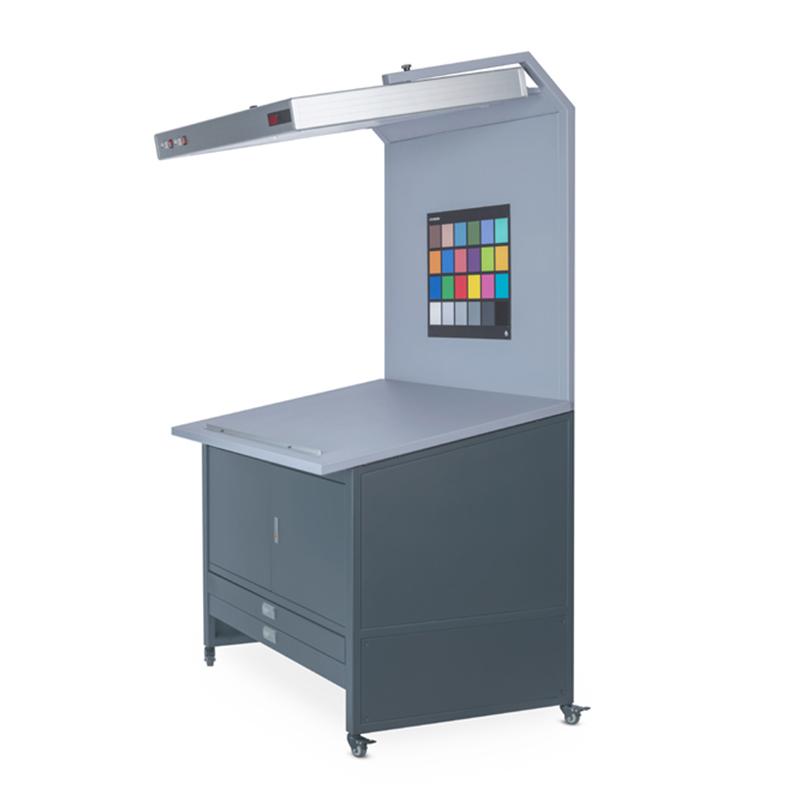

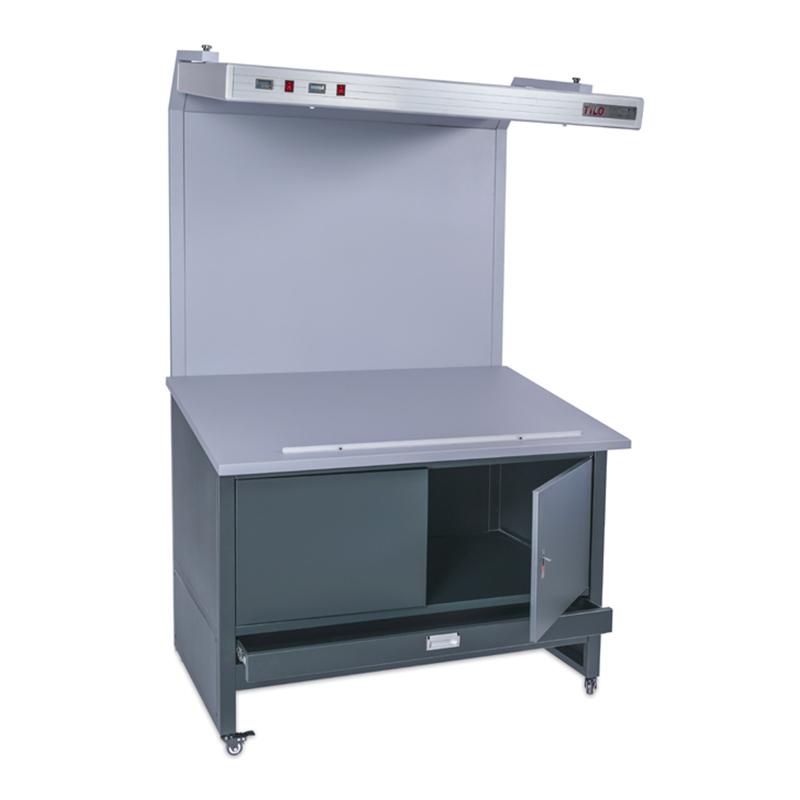

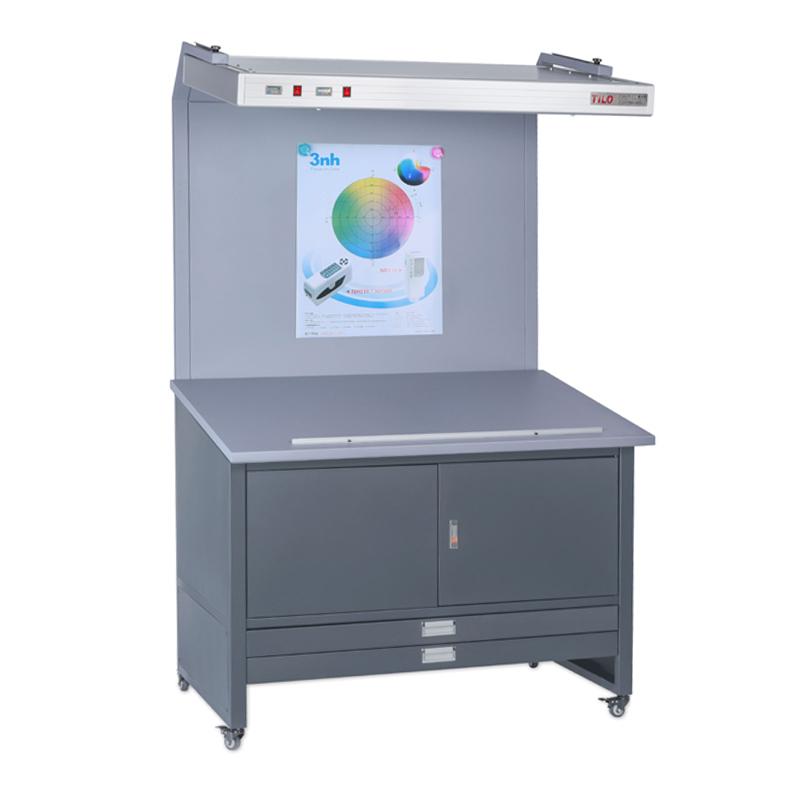

3NH CC120-E-3 Standard Viewing Station, Three Light source Color Assessment Cabinet D65 D50 TL84 Two drawers and one cabinet

CC120-E-3

Color Assessment Cabinet

With the door drawer, support D65, D50, TL84 three Light source, 12 36W lamp with Light source Timer, all sheet metal material.

Introduction

• CC120-E standard sample stage: single light source, dual light source, triple light source in accordance with ISO3664 international standards.

• High color rendering index, lamp with light source timer.

• All metal material, real materials, large folio size, easy to operate

• Provide standard light sources commonly used in the printing industry, in line with the requirements of the ISO3664:2009 industry lighting standard.

• The printing sample table is suitable for printing workshops or proofing centers with high environmental requirements.

• Offset printing, flexographic printing, gravure printing and other printing houses can be applied, and the reflection manuscript can be seen directly.

Scientific experiments have found that different light sources have different radiant energies, and when they hit the same item, they will appear different colors. Therefore, when verifying the color of goods, it must be carried out under the same light source and controllable conditions. In the color management of printing production, if the ambient light source is not standard or inconsistent with the light source used by the customer, the color seen under different lights is different, which will lead to inaccurate judgment of the color difference of the goods, which seriously affects the company's goodwill. The standard light source printing sample table can effectively solve the above problems, and it is widely used in the printing field, which is used to accurately compare the color deviation of printed matter, and can provide D65, D50, TL84, CWF and other light source options at the same time, and has the function of testing metamerism.

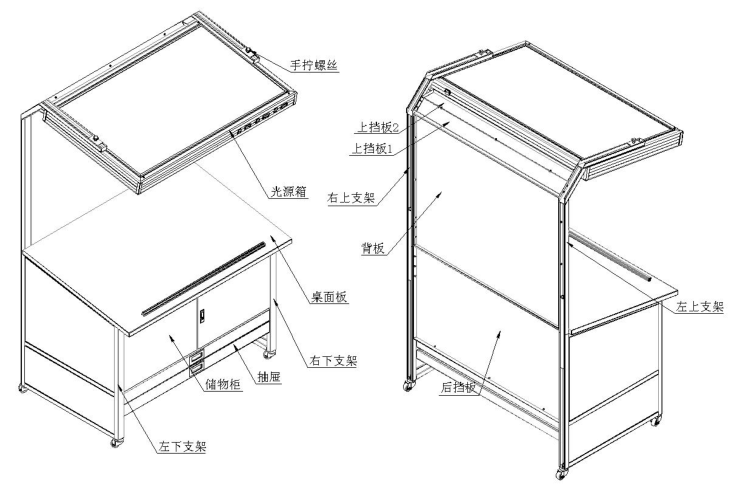

Product structure diagram

Features

• Light source: in accordance with ISO3664 international standards

Color temperature type: D50 (5000K) or D65 (6500K)

Lamp series: Graphica imported printing machine

Color rendering index: CRI=98 high color rendering index

Number of Tubes: 36W x4 (pcs) - with light source timer

• Material: All metal material, real materials

Workbench cabinet: the overall rice gold structure, thick gold, strong and stable

Operating table: inclined plane design, in line with visual observation habits

Hanging light source: aluminum alloy profile, streamlined design, beautiful and generous, imported reflector, uniform light cover, uniform illumination

• Size: Large folio size, easy to operate

Application

The CC 120 series sample reading table provides the most common standard light source in the printing industry and meets the requirements of the ISO 3664:2009 industry lighting standard. CC120 series sample table is also suitable for printing and dyeing textile, plastics, hardware and other color management fields, so that samples, production, quality inspection, acceptance under the same standard light source, can accurately calibrate the color deviation of goods, to ensure that the quality of the color of goods meets the requirements, so as to improve product quality and market competitiveness.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
