CHINA SZQ-125 single-sided wet-Film Applicator stainless steel Coating Applicator film 125μm
SE
SZQ-125(50mm)
-
MODERNER SZQ-125 (GB Bird-type) Single-sided I-shaped Coating Applicator film thickness 125μm -
CHINA SZQ-125 single-sided experimental Film Applicator stainless steel material film thickness 125μm$ 156.00SE -
TQC VF1574 prismatic bird type Film Applicator WFT 125μm$ 716.00SE -
PUSHEN /Pushen SZQ-125 Single Side Scraping Film Applicator 125μm$ 141.00SE
HuiNuo SZQ-125(50mm) Single-sided ApplicatorSPEC
HuiNuo SZQ-125(50mm) Single-sided ApplicatorDetails
HuiNuo SZQ-125(50mm) Single-sided ApplicatorPacking list
- SKU
- NB043777
- type
- single-sided
- WFT
- 125μm
- Application width
- 50mm
- Accuracy
- ±2μm
- material
- 9Cr18Mo stainless steel
- Total length
- 80mm
Introduction
The Wet Film Applicator is a manual coating device. It is made of high-carbon chromium wear-resistant and anti-corrosion stainless steel. It has various shapes such as I-shaped, frame, square, etc. The Wet Film Applicator can be used according to the thickness of the coating film. It is divided into single-sided, double-sided, four-sided and eight-sided Applicators. The Wet Film Applicator is suitable for scraping coatings, inks, glues, new materials and other samples with high viscosity and high film thickness. It can also be used with a film coating machine for automatic coating. Supports customization of different specifications, and each preparer uses imported three-dimensional coordinate testing to ensure the accuracy of the experimental coating.

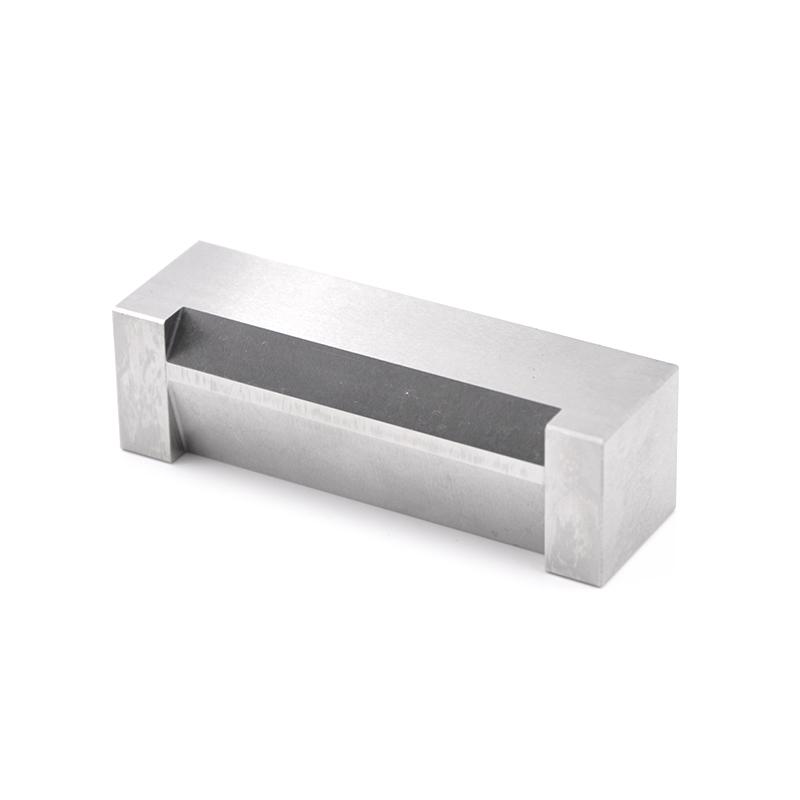

The SZQ-125 (50mm) single-sided paint film Applicator has a coating thickness of 125 μm, single-sided coating, a coating width of 50 mm, and a coating accuracy of ±2 μm.
Features
1. 9Cr18Mo high-hardness stainless steel material has good wear resistance and corrosion resistance, with a hardness value of 50~55HRC.
2. The accuracy is as high as ±2μm to ensure the accuracy of the experiment.
3. Smooth surface, diverse styles, wide range of applications, and supports customized specifications
4. It adopts imported three-coordinate detection accuracy and comes with factory inspection report, which can withstand measurement.
Preparator series parameter table
| name | Specificationsmm | Wet film thickness μm |
| single sided Applicator | Total length 80, coating width 50, 75 | 50, 75, 100, 125, 150, 175, 200 |
| Double sided Applicator | Total length 100, coating width 80 | 25, 50, 75, 100, 150, 175, 200, 300, 400 |
| Frame Applicator | Total length 90, coating width 80 | 30, 50, 60, 90, 120, 150, 200 |
| Eight-sided Applicator | Total length 90, coating width 68 | 50, 75, 100, 125, 150, 175, 200 |
| Eight-sided Applicator | Total length 100, coating width 80 | |
| Square Applicator | 25x25, coating width 16 | 37, 50, 75, 100 |
| Square Applicator | 50x50, coating width 41 | 50, 100 |
| Standard four-sided Applicator | Total length 100, coating width 80 | All specifications and sizes support non-standard customization |
| Extended four-sided Applicator | Total length 190, coating width 160 |
