British Sheen Ref. 504/50 wide/single-channe Grindometer

Bottom of the warehouse, half price.

$615.00/piece

PromotionLoading...

Coupon

Model：

Ref.504/50

Certificate

SHEEN

Contact

Details SPEC Con

SHEEN Ref.504/50 Fineness MeterSPEC

SHEEN Ref.504/50 Fineness MeterDetails

SHEEN Ref.504/50 Fineness MeterPacking list

SKU: NB004378

Scraper type: Wide-channel

Number of grooves: 2

range: 0~50μm

Scale unit: μm、Hegman

scraper material: stainless steel

Scraper size: 175*63*12mm

Applicable standards: S 3900 C6；EN21524；ISO 1524；ASTM D1210

Ref.504/50

Fineness Meter

Bottom of the warehouse, half price.

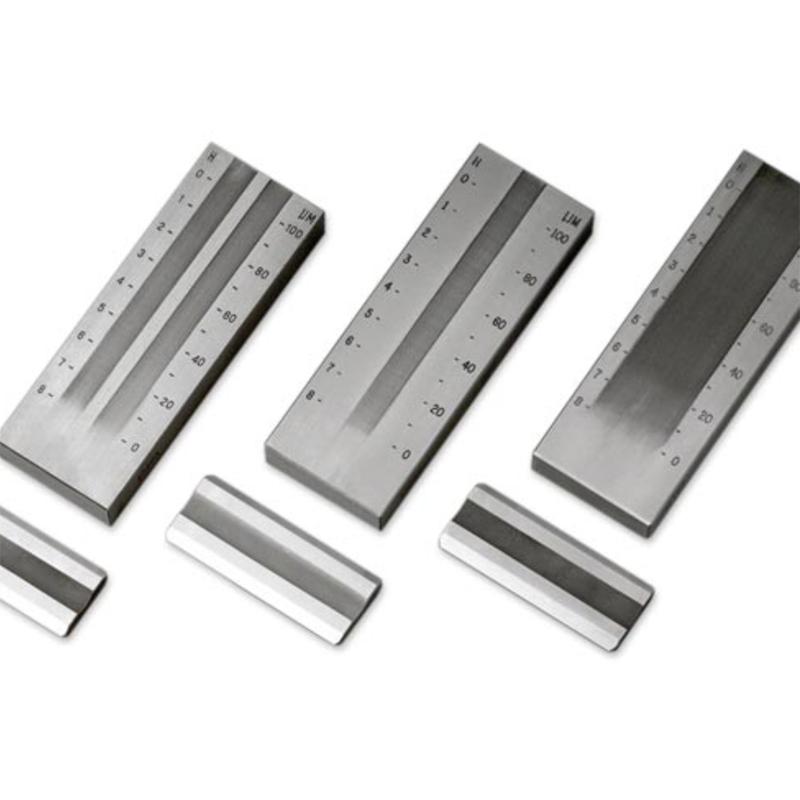

British Sheen Ref. 504/50 wide/single-channe Grindometer Picture

Grinding of solid raw materials within coatings, pigments, inks, or food formulationsQuality is important for a good spread. The high-precision Fineness Meter produced by Xinying Company is made of hardMade of stainless steel for long-term durability and reliability.

The instrument is available with single or double slots and is engraved with 2 sets of graduations: 0-25, 0-50 or0-100 microns and 8-6, 8-4 or 8-0, respectively HegmanUnit. To test, pour a small amount of product into the deep end and use a spatula to compareThe shallow end of the scrape, too large particles and their paths are shown in the position on the scale can beThe size of the measured particles is read out and divided.

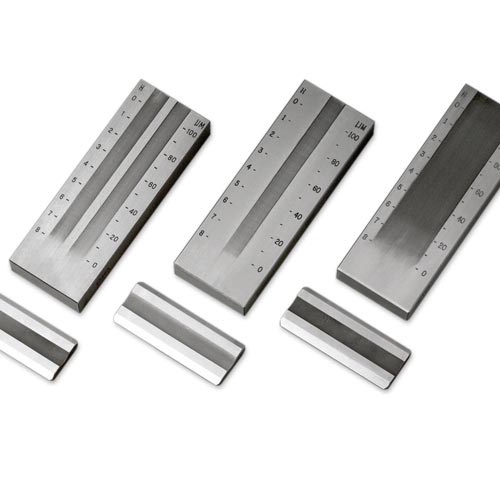

Sheen fineness plates

peculiarity

High-precision machining, 175 x 63 x 12 mm

Standard equipment: scraper, leather carrying case.

Meet the criteria

ASTM Standard D333, 1210

ISO 1524

FAQ

QI want to do a test on the GB/T13217.3 standard. Is this Fineness meter okay?

A Sure

QIs there a Gardco Fineness Meter?

A Hello, this brand Fineness meter has not yet entered NBchao. Com Mall. You can consider other brands of Fineness meter in the mall.

QWhat is the reading method of scraper Fineness meter?

A Please make the reading under the premise of ensuring the correct use of the scraper Fineness Meter. For the sample that meets the product standard viscosity index, mix it well with a small paint blender, and then drop a few drops on the deepest part of the scraper Fineness Meter to fill the groove and have a little excess. Take a double hand-held scraper and place it horizontally on the upper end (at the edge of the sample) of the polishing plate (scraper Fineness Meter) so that the scraper is in vertical contact with the surface of the polishing plate. Within 3s, pull the scraper from the deep part of the groove of the scraper Fineness Meter to the shallow part, so that the paint sample fills the groove and there is no residual paint on the plate. After the scraper is pulled, immediately (no more than 5s) make the line of sight at a 15-30 ° angle to the plane of the trench, observe the uniform exposure of particles in the trench to the light, and write down the reading (accurate to the smallest division)
