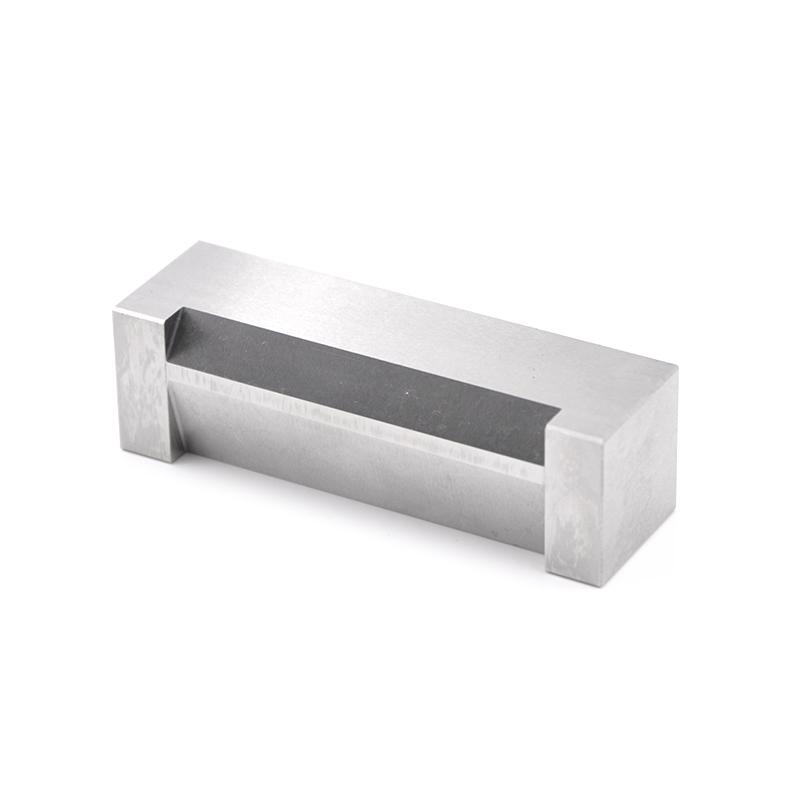

CHINA SZQ-200 Single Sided Film Applicator film 200μm
SE
SZQ-200(50mm)
-
CHINA SZQ-200 Single-sided Bird-type Coating Applicator film 200μm$ 156.00SE -
MODERNER SZQ-200 (GB Bird-type) Wet Film Applicator Micron film formation device 200μm -
MODERNER SZQ-200 (ISO Bird-type) Film Applicator 200 μm Film Applicator -
MODERNER SZQ 200 film Applicator WFT Film Applicator 200μm/160mm -
PUSHEN /Pushen SZQ-200 single-sided I-shaped coating applicator 200μm$ 141.00SE
HuiNuo SZQ-200(50mm) Single-sided ApplicatorSPEC
HuiNuo SZQ-200(50mm) Single-sided ApplicatorDetails
HuiNuo SZQ-200(50mm) Single-sided ApplicatorPacking list
- SKU
- NB043781
- type
- single-sided
- WFT
- 200m
- Application width
- 50mm
- Accuracy
- ±2μm
- material
- 9Cr18Mo stainless steel
- Total length
- 80mm
Introduction
The Wet Film Applicator is a manual coating device. It is made of high-carbon chromium wear-resistant and anti-corrosion stainless steel. It has various shapes such as I-shaped, frame, square, etc. The Wet Film Applicator can be used according to the thickness of the coating film. It is divided into single-sided, double-sided, four-sided and eight-sided Applicators. The Wet Film Applicator is suitable for scraping coatings, inks, glues, new materials and other samples with high viscosity and high film thickness. It can also be used with a film coating machine for automatic coating. Supports customization of different specifications, and each preparer uses imported three-dimensional coordinate testing to ensure the accuracy of the experimental coating.
The coating thickness of the SZQ-200 (50mm) single-sided Wet Film Applicator is 200μm, single-sided coating, the coating width is 50mm, and the coating accuracy is ±2μm.
Features
1. 9Cr18Mo high-hardness stainless steel material has good wear resistance and corrosion resistance, with a hardness value of 50~55HRC.
2. The accuracy is as high as ±2μm to ensure the accuracy of the experiment.
3. Smooth surface, diverse styles, wide range of applications, and supports customized specifications
4. It adopts imported three-coordinate detection accuracy and comes with factory inspection report, which can withstand measurement.
Preparator series parameter table
| name | Specificationsmm | Wet film thickness μm |
| single sided Applicator | Total length 80, coating width 50, 75 | 50, 75, 100, 125, 150, 175, 200 |
| Double sided Applicator | Total length 100, coating width 80 | 25, 50, 75, 100, 150, 175, 200, 300, 400 |
| Frame Applicator | Total length 90, coating width 80 | 30, 50, 60, 90, 120, 150, 200 |
| Eight-sided Applicator | Total length 90, coating width 68 | 50, 75, 100, 125, 150, 175, 200 |
| Eight-sided Applicator | Total length 100, coating width 80 | |
| Square Applicator | 25x25, coating width 16 | 37, 50, 75, 100 |
| Square Applicator | 50x50, coating width 41 | 50, 100 |
| Standard four-sided Applicator | Total length 100, coating width 80 | All specifications and sizes support non-standard customization |
| Extended four-sided Applicator | Total length 190, coating width 160 |
