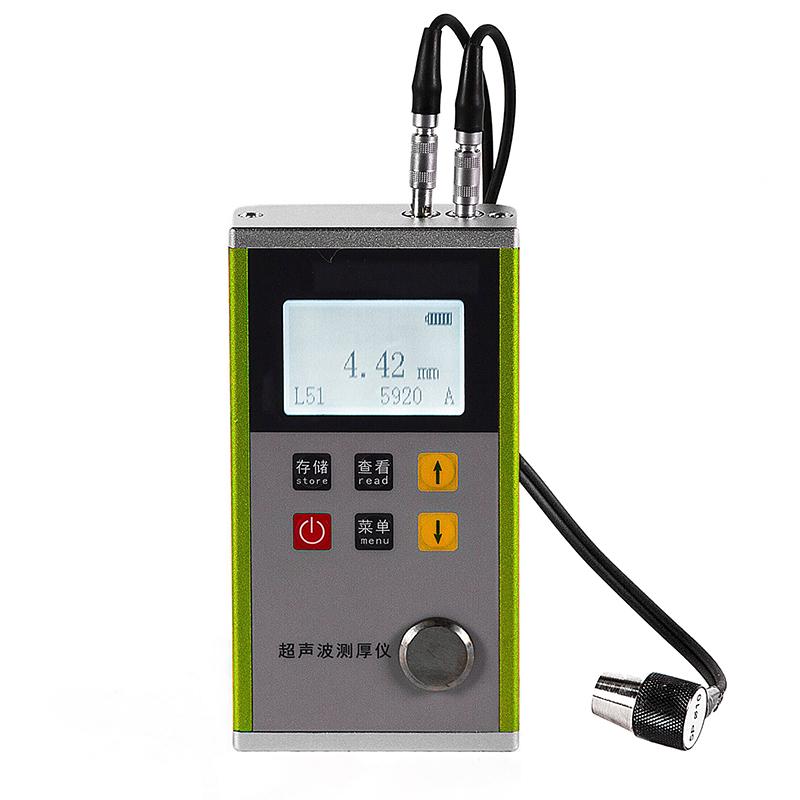

LEEB330 Ultrasonic Thickness Gauge Range 1-250mm

leeb330

Ultrasonic Thickness Gauge

Measurement range of standard probe 1-250mm, suitable for measurement Speed of sound 5920 ultrasonic good conductor thickness, Display resolution 0.1mm, with coupling status prompt function.

overview

Using the principle of ultrasonic measurement, it is suitable for the measurement of the thickness of the material in which ultrasonic waves can propagate at a constant speed and can be reflected from the back surface.

This instrument can accurately measure plates and processed parts. Another important aspect is that it can monitor pipes and pressure vessels in production equipment and monitor their thinning after corrosion during use. It can be used in various fields such as petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace, etc.

Main function

• Accurate sound velocity is measured against the known thickness of composite and unknown materials;

• Set the upper and lower limit tolerances to exceed the automatic alarm;

• Status prompt function.

• Adjustable speed of sound;

• With instrument calibration function;

• With coupling status prompt function;

• There is a high-brightness LED backlight display, which is convenient for use in dimly lit environments;

• There is a remaining power indication function, which can realize the display of the remaining battery power;

• With automatic sleep, automatic shutdown and other power-saving functions;

• Small, portable, high stability, suitable for harsh operating environments, anti-vibration, shock and electromagnetic interference;

• Metric and imperial systems are available.

Applicable materials

It is suitable for measuring the thickness of good conductors of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, glass, fiberglass and other ultrasonic waves.

basic principle

The principle of ultrasonic measurement of thickness is similar to that of light wave measurement. The ultrasonic pulse emitted by the probe reaches the back-measured object and propagates in the object, and is reflected back to the probe when it reaches the material interface. The thickness of the measured material is determined by accurately measuring the time that the ultrasonic wave propagates in the material.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
