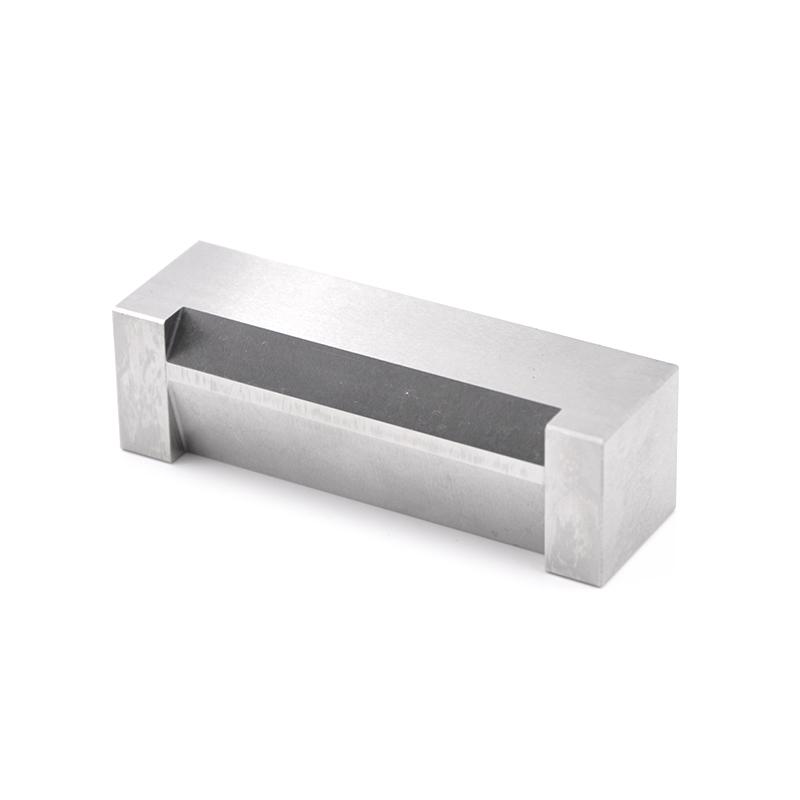

CHINA SZQ-75 single-sided wet-Film Applicator, scraping film thickness 75μm application width 75mm
SE
SZQ-75(75mm)
-
CHINA SZQ-75 Single-sided Wet Film Applicator film 75μm$ 156.00SE -
MODERNER SZQ-75 (ISO Bird-type) film Applicator 75 μm Film Applicator -
MODERNER SZQ-75 (GB Bird-type) Single Sided Film Applicator 75μm slurry Coating Applicator -
MODERNER SZQ 75 GB Film Applicator 75μm/160mm -
MODERNER SZQ-75 (ISO Bird-type) Film Applicator Customized 160mm
HuiNuo SZQ-75(75mm) Single-sided ApplicatorSPEC
HuiNuo SZQ-75(75mm) Single-sided ApplicatorDetails
HuiNuo SZQ-75(75mm) Single-sided ApplicatorPacking list
- SKU
- NB043784
- type
- single-sided
- WFT
- 75μm
- Application width
- 75mm
- Accuracy
- ±2μm
- material
- 9Cr18Mo stainless steel
- Total length
- 105mm
Introduction
The coating thickness of the SZQ-75 (75mm) single-sided manual applicator is 75μm, with one coating surface, the coating width is 75mm, and the coating accuracy is ±2μm.
The Wet Film Applicator is a manual laboratory applicator with different coating width specifications to choose from. It is made of high-carbon chromium wear-resistant and anti-corrosion stainless steel. The dimensional accuracy of the preparer is tested with imported three-dimensional coordinates before leaving the factory to ensure the coating membrane accuracy. The SZQ series preparers are available in various shapes such as I-shaped, frame-shaped, and square. According to the thickness of the coating film, they can be divided into single-sided, double-sided, four-sided, and eight-sided Applicators. The Wet Film Applicator is suitable for film production of paints, glues, coatings, inks, new chemical materials, etc. It can be equipped with a film coating machine for automatic film scraping. NBCHAO provides customized preparation service.
Features
1. 9Cr18Mo high-hardness stainless steel material has good wear resistance and corrosion resistance, with a hardness value of 50~55HRC.
2. The accuracy is as high as ±2μm to ensure the accuracy of the experiment.
3. Smooth surface, diverse styles, wide range of applications, and supports customized specifications
4. It adopts imported three-coordinate detection accuracy and comes with factory inspection report, which can withstand measurement.
Preparator series parameter table
| name | Specificationsmm | Wet film thickness μm |
| single sided Applicator | Total length 80, coating width 50, 75 | 50, 75, 100, 125, 150, 175, 200 |
| Double sided Applicator | Total length 100, coating width 80 | 25, 50, 75, 100, 150, 175, 200, 300, 400 |
| Frame Applicator | Total length 90, coating width 80 | 30, 50, 60, 90, 120, 150, 200 |
| Eight-sided Applicator | Total length 90, coating width 68 | 50, 75, 100, 125, 150, 175, 200 |
| Eight-sided Applicator | Total length 100, coating width 80 | |
| Square Applicator | 25x25, coating width 16 | 37, 50, 75, 100 |
| Square Applicator | 50x50, coating width 41 | 50, 100 |
| Standard four-sided Applicator | Total length 100, coating width 80 | All specifications and sizes support non-standard customization |
| Extended four-sided Applicator | Total length 190, coating width 160 |
