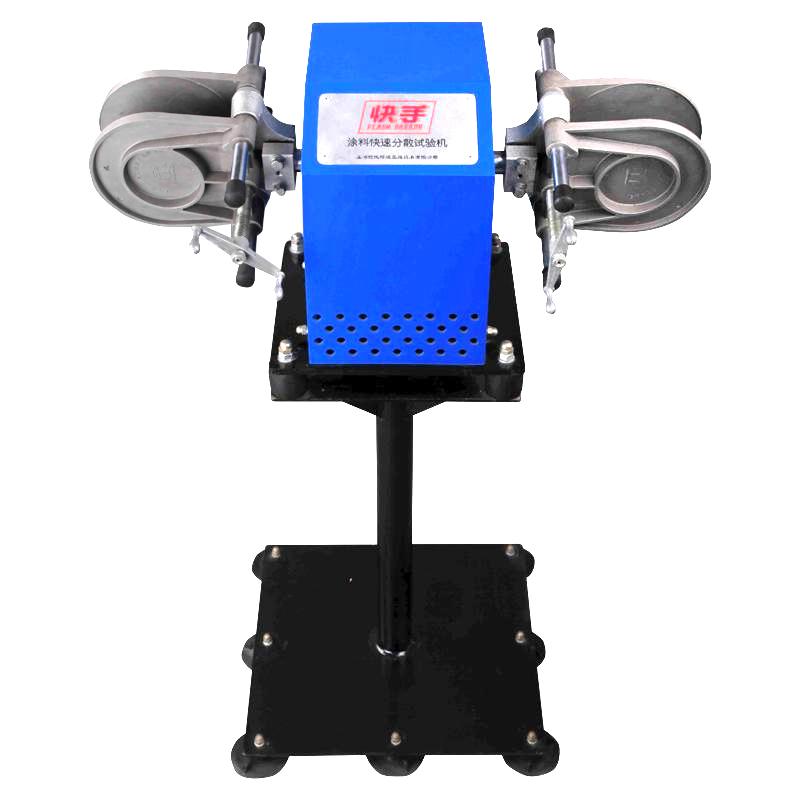

MODERNER KS-370A Coating Blue-devil Dispersion Testing Machine, Column Clamp Type, Blue Devil

KS-370A

Coating rapid dispersion testing machine (column clamping tank)

Column clamping tank type, motor power 550W, crankshaft speed 660rpm, spindle reciprocating amplitude 16mm, spindle swing vibration angle 30deg.

Introduction

KS-370A Coating Blue-devil Dispersion Tester for Modern Environment, also known as Blue-devil, is a equipment used for fast and effective shock dispersion experiments on coatings, inks, dyes and other laboratories on coatings. KS-370A Paint Fast Dispersion Tester has a motor power of 550W and a crankshaft speed of 660rpm.

Comparison of parameters of vertical coating fast hand disperser

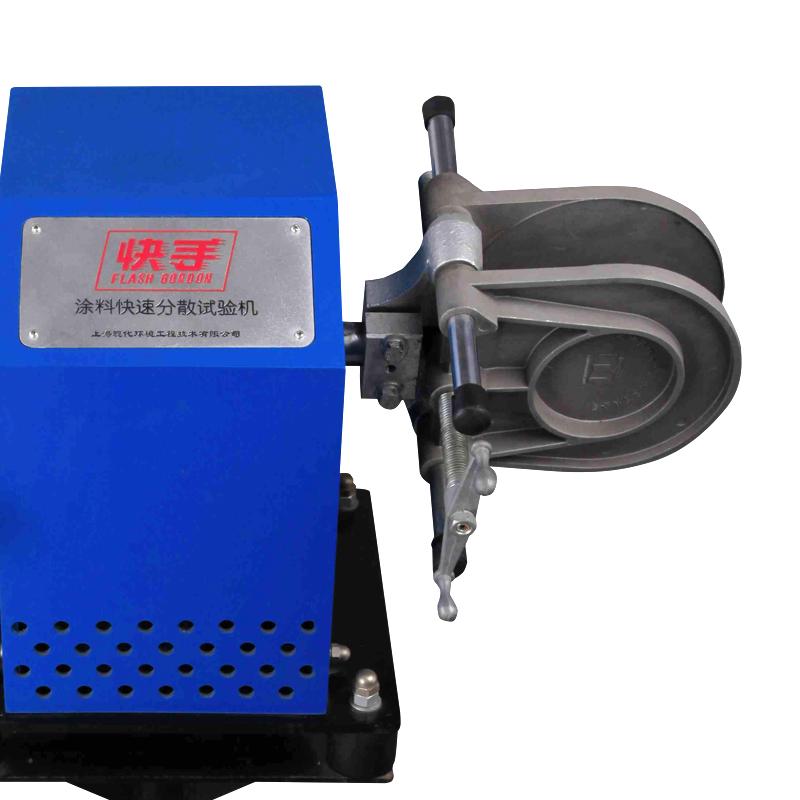

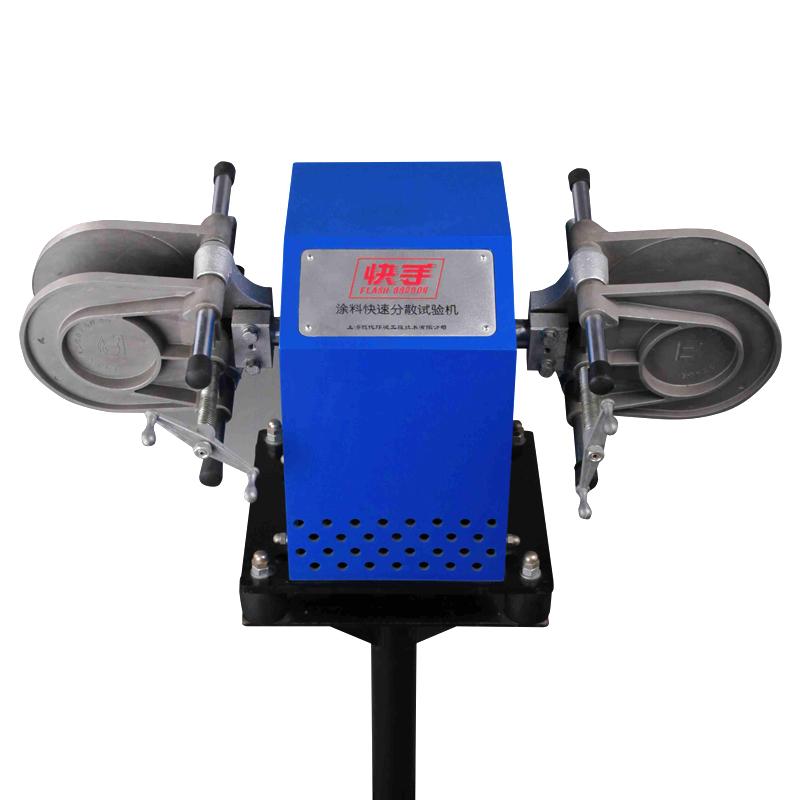

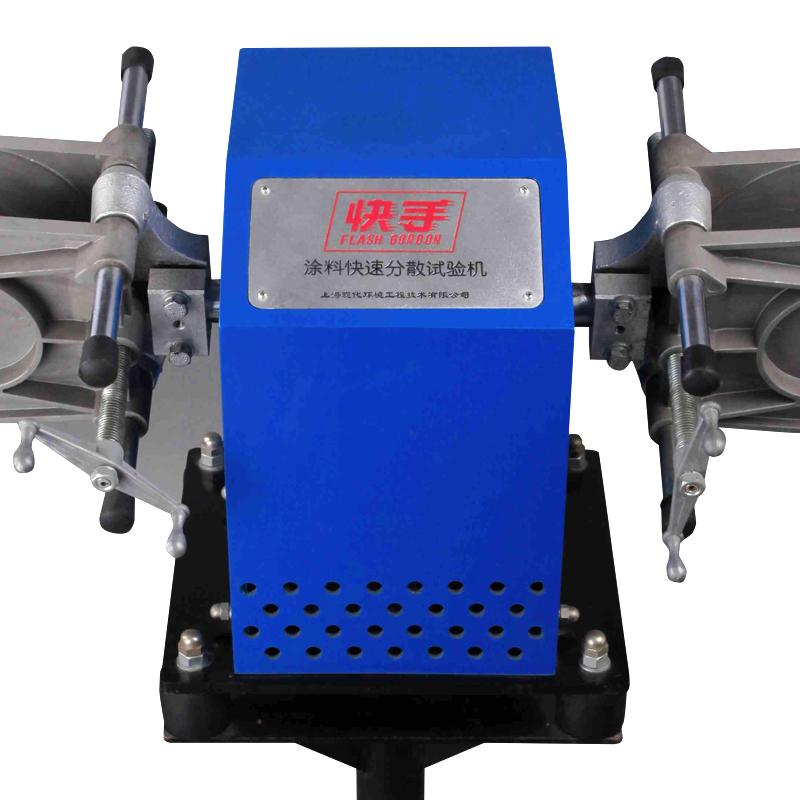

Live shot

KS-370A Paint Fast Dispersion TesterInstallation instructions

(1) Install the suction feet on the bottom plate of the column support;

(2) After the column is in place, the rubber stop is fixed around the bottom plate of the column with an expansion screw (as shown in the figure);

(3) Install the main machine on the column support.

Procedure

1. Pack the materials and grinding medium (grinding beads) to be dispersed into the tank (or bottle). The material-bead mass ratio can be referred to the following table.

2. Put the closed tank (or bottle) into the clamping device, and turn the shaker to clamp it. The clamping force should be appropriate to avoid damage to the can (or bottle) or damage to the clamping device due to excessive force.

3. Try to avoid single-sided canning (or bottle) use. If you do need to use on one side, hold the weight tank (or bottle) of water on the other side.

4. If small glass bottles are used in the clamping configuration, in order to improve the dispersion efficiency, two small glass bottles can be clamped at one time in the symmetrical position near the outer side of the clamping plate. (Pay attention to the balance on both sides of the clamping device)

5. According to the required grinding time, set the timer (random addition, please refer to the timer manual for operation) and startKS-370columnPaint rapid dispersion testing machine.

6. After dispersion, please be sure to confirmKS-370columnPaint rapid dispersion testing machineWhen it is completely stationary, you can turn the shaking hand to release the clamping device and take out the tank (or bottle).

7、KS-370 Column Type Paint Rapid Dispersion TesterAfter the work is completed, please disconnect the power supply and do a good job of cleaning and nursing in time.

Note: For the detailed steps and judgment criteria of material operation, please refer to the relevant regulations of different products by yourself, which is not within the scope of the instructions of the testing machine.

How to use the four-hole gripper in the bottle clamp configuration

1. Loosen the ingots nuts at both ends and separate the four-hole gripper up and down.

2. WillThe vials are placed in the lower gripper (the same size as the vials supplied with the glass).

3. Cover the upper gripper and tighten the ingots nuts at both ends.

4. Install the entire gripper on the Blue-devil gripper.

5. When installing, it should be noted that the two slots on the four-hole gripper need to be aligned with the cylindrical pin on the Blue-devil gripper, and the positioning block on the four-hole gripper needs to be above the Blue-devil gripper.

Precautions for use

1. NewKS-370 Column Type Paint Rapid Dispersion TesterAfter 100 hours of use, replace the crankcase lubricating oil. For daily use in the future, you only need to check and add it at the right time.

(Lubricating oil grade: Great Wall brand heat setting machine lubricating oil 4402-1)

2. The total mass of the clamping material tank (or bottle) should not exceed 5 kg, so as not to shorten the service life of the coating rapid dispersion testing machine.

3. Please do a good job of cleaning and maintaining the guide rod and screw of the gripper in time to avoid rust or residual foreign matter causing difficulties in clamping advance and retreat.

4. The paint rapid dispersion testing machine will have a large heat when working, and the coating rapid dispersion testing machine needs to be placed in a workplace with good ventilation conditions.

5. For extensionPaint rapid dispersion testing machineService life, after each work is more than 90 minutes, please stop for 10~15 minutesPaint rapid dispersion testing machineRestart after dissipating heat.

Packing list：Host x1, timer x1, handle x1, sealing ring (two small and one large) x1, transmission belt x1, rubber pad (for clamping) x4, rubber suction foot x8, rubber stopper x4, 10m expansion screw x8, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
