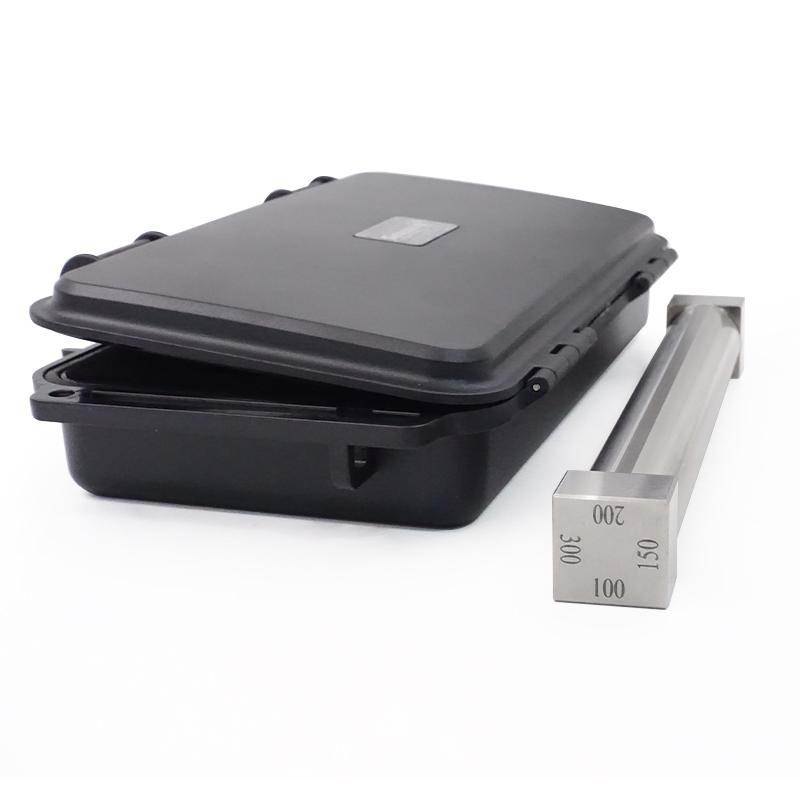

CHINA Quadrilateral Film Applicator SZQ-80 100/150/200/300μm
SE
SZQ-80 100/150/200/300μm
HuiNuo SZQ-80 100/150/200/300μm 4-Sided ApplicatorsSPEC
HuiNuo SZQ-80 100/150/200/300μm 4-Sided ApplicatorsDetails
HuiNuo SZQ-80 100/150/200/300μm 4-Sided ApplicatorsPacking list
- SKU
- NB043816
- type
- single-sided
- WFT
- 100/150/200/300μm
- Application width
- 80mm
- Accuracy
- ±2μm
- material
- 9Cr18Mo stainless steel
- Total length
- 100mm
Introduction
The four-sided Film Applicator is an experimental coating device with an accuracy of ±2 microns. It has two coating widths of 80 and 160mm. It is made of high-carbon chromium wear-resistant stainless steel and has good corrosion resistance. The Wet Film Applicator will be tested for accuracy before leaving the factory. It adopts imported three-dimensional coordinate testing and comes with a factory test data report, which can withstand measurement. The SZQ four-sided Film Applicator is suitable for sample film production and proofing in the fields of resin, paint, glue, new materials, polymer materials, medicine and other fields. Support non-standard customization. It can also be equipped with a laboratory automatic coating machine for automatic coating.
SZQ-80 100/150/200/300μm coating film thickness is 100μm, 150μm, 200μm, 300μm, coating width 80mm, Total length 100mm, it is a standard four-sided Applicator.
Features
1. 9Cr18Mo high-hardness stainless steel material has good wear resistance and corrosion resistance, with a hardness value of 50~55HRC.
2. The accuracy is as high as ±2μm to ensure the accuracy of the experiment.
3. Smooth surface, diverse styles, wide range of applications, and supports customized specifications
4. It adopts imported three-coordinate detection accuracy and comes with factory inspection report, which can withstand measurement.
Preparator series parameter table
| name | Specificationsmm | Wet film thickness μm |
| single sided Applicator | Total length 80, coating width 50, 75 | 50, 75, 100, 125, 150, 175, 200 |
| Double sided Applicator | Total length 100, coating width 80 | 25, 50, 75, 100, 150, 175, 200, 300, 400 |
| Frame Applicator | Total length 90, coating width 80 | 30, 50, 60, 90, 120, 150, 200 |
| Eight-sided Applicator | Total length 90, coating width 68 | 50, 75, 100, 125, 150, 175, 200 |
| Eight-sided Applicator | Total length 100, coating width 80 | |
| Square Applicator | 25x25, coating width 16 | 37, 50, 75, 100 |
| Square Applicator | 50x50, coating width 41 | 50, 100 |
| Standard four-sided Applicator | Total length 100, coating width 80 | All specifications and sizes support non-standard customization |
| Extended four-sided Applicator | Total length 190, coating width 160 |
