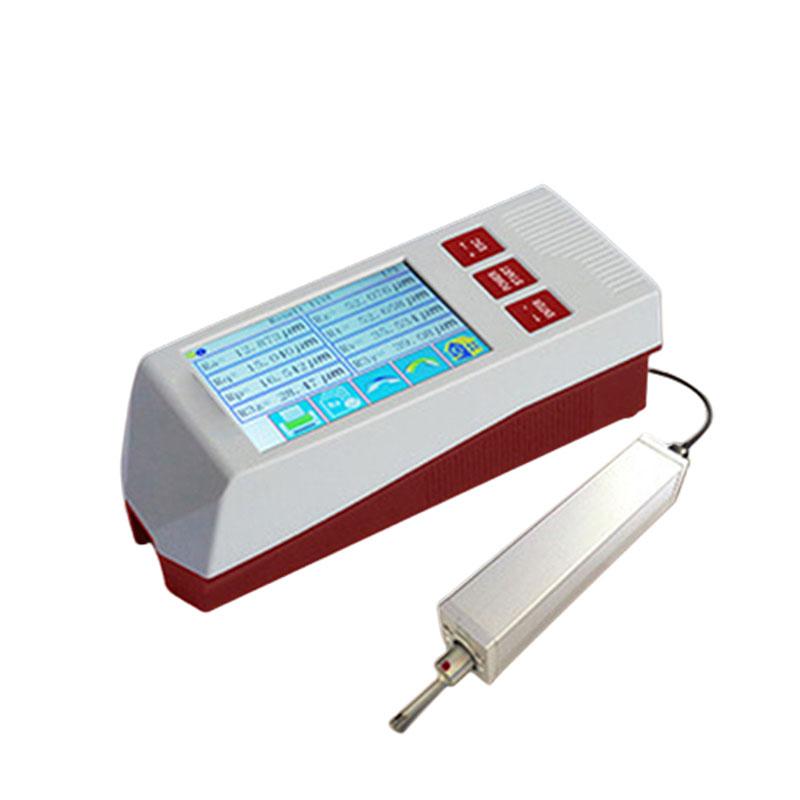

LEEB462 surface roughness multiparameter measurement supports bluetooth printing and mobile app

leeb462

Roughness Gauge

Support Bluetooth printing and mobile app operation, simple button and touch screen dual operation, support lateral, upward and other direction measurement, multiparameter measurement, large-capacity Data storage.

Overview

Portable surface roughness meter is a surface roughness detection instrument, which can measure the surface roughness of various machined parts, including plane, inclined surface, outer cylindrical surface, curved surface, small hole, groove and axle.

Main function

• Mechatronics design, small size, light weight, easy to use;

• One-piece, split-type free choice of measurement methods, support lateral, upward and other directions of measurement;

• Using DSP chip for control and data processing, fast speed and low power consumption;

• Multi-parameter Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz (JIS), Rs, Rsk, Rsm, Rku, Rmr; Ry; Rmax, (enhanced Rc, RPc, Rk, Rpk, Rvk, Mr1, Mr2 and other parameters);

• 160μm large range measurement range (enhanced up to 320μm).

• 3.5-Inch touch color LCD display, digital/graphic display, with backlight, high brightness, wide Viewing Angle;

• Easy button and touch screen dual operation;

• Support Bluetooth printing and mobile APP operation;

• The display is informative, intuitive, and can display all parameters and graphics;

• Compatible with ISO, DIN, ANSI, JIS national standards;

• Built-in lithium-ion rechargeable battery and charging control circuit, high capacity and no memory effect;

• There is a remaining power indicator icon, prompting the user to charge in time;

• The charging process indication can be displayed, and the operator can know the charging degree at any time

• Continuous working time greater than 50 hours

• Large-capacity data storage, can store 100 sets of original data sources and waveforms.

• Real-time clock setting and display, convenient data recording and storage.

• With automatic sleep, automatic shutdown and other power-saving functions

• Reliable anti-motor dead circuit and software design

• Display various prompt instructions such as measurement information, menu prompt information, error information and switch machine;

• Ergonomic housing design, strong, compact and portable.

• Can connect computers and printers;

• All parameters can be printed or any parameters set by the user can be printed.

• Optional such as Bluetooth, curved sensor, small hole sensor, measurement platform, sensor sheath, connecting rod, micro printer, etc.

Applicable materials

The detection of surface roughness of metal and non-metal parts to be tested is suitable for various machined parts, machining manufacturing, testing, commodity inspection and other departments, especially for on-site inspection of large workpieces and production lines, as well as inspection, measurement, commodity inspection and other departments. The outgoing verification will not cause damage to the workpiece.

basic principle

When measuring the surface roughness of the workpiece, the instrument first places the sensor on the surface of the workpiece to be measured, and then starts the instrument to measure. The precision drive mechanism inside the instrument drives the sensor to slide along the measured surface in a straight line with constant velocity. The built-in sharp stylus feels the roughness of the measured surface. At this time, the roughness of the measured surface of the workpiece will cause the stylus to be displaced. The displacement changes the inductance of the sensor inductance coil, so that the output of the phase-sensitive Detector generates an analog signal proportional to the measured surface roughness. The signal enters the data collection system after amplification and level conversion. DSP The chip performs digital filtering and parameter calculation on the collected data, and the measurement results are given on the display, can also be output on the printer, and can also communicate with the PC.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
