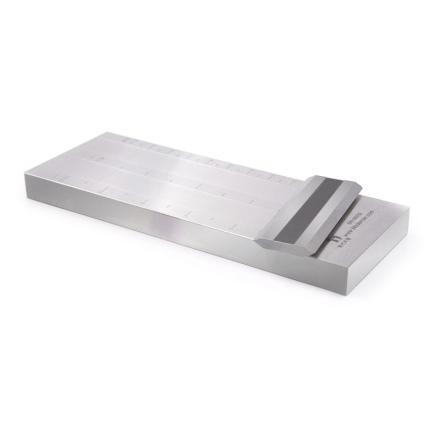

Moderner QXD 25 (large double-channel) Large double-channel Fineness gauge Specifications
Search
Brand：Moderner
Model：QXD 25 (large double-channel)
Name：Large double-channel Fineness gauge
Specifications
| Scraper type | Big double-channel |
| Number of grooves | 2 |
| range | 0~25μm |
| Scale unit | μm |
| scraper material | stainless steel |
| Scraper size | 241.3*88.9*19.05mm |
| Groove size | 25.4*165mm |
| Drawdown blade material | stainless steel |
| Drawdown blade size | 95mm |
| Applicable standards | GB/T 1724、GB/T 13217.3、ISO 1524、ASTM D1210 |
| Graduation | 2.5μm |
Packing list
Scraper x1, scraper x1
After-sales instructions
【After-sales terms】
This product is a precision consumable product and there is no warranty period. If there is a quality problem after receiving the goods, the customer can apply for return and exchange in time. For the definition of return and exchange, please refer to the mall return and exchange guidelines.
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/4385/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
