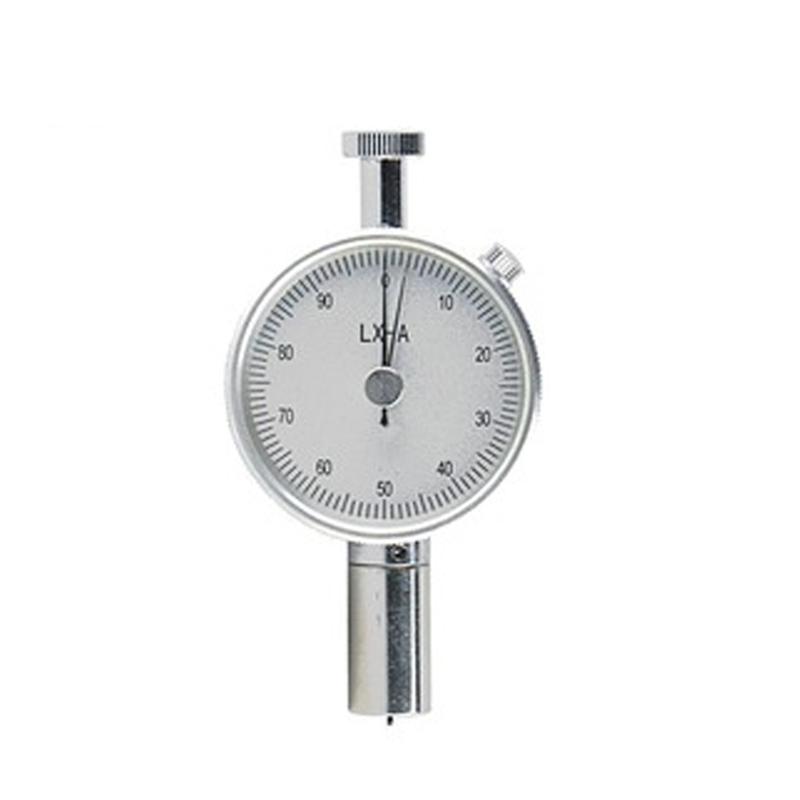

LEEB LX-A Pointer Shore Durometer Measurement range 10~90HA

LX-A (with test stand)

Shore Shore Durometer

With test bracket, Measurement range 10~90HA, pressing needle stroke 2.5mm, suitable for medium and low Hardness Plastic, Leather, all kinds of rubber, multi-fat, wax and other Hardness, in line with GB/T531-1999 standard.

Overview

LX-A Shore A Hardness Tester is suitable for testing instruments of low to medium hardness plastics, leather, various types of rubber, polyesters, wax and other hardnesses. This product meets the requirements of the national GB/T531-1999 standard and other relevant standards.

• DIAL VALUE: 0~100HA

• RECOMMENDED MEASUREMENT RANGE: 10~90HA

• Needle stroke: 2.5mm

• Pressure pin head size: φ0.79mm

How to use:

Place the pattern on a solid plane, hold the Hardness Tester, and press the pressure foot on the sample at least 12mm away from the edge of the sample, so that the pressure pin is pressed vertically into the sample until the pressure foot is in full contact with the sample, and the reading is within 1S. The hardness values were tested 5 times at different locations at least 6 mm apart from each other, and the average value was taken (at least 15 mm apart between the measuring points of microporous materials).

In order to stabilize the test conditions and improve the test accuracy, the Hardness Tester should be measured on the same type of measuring rack produced by the supporting production.

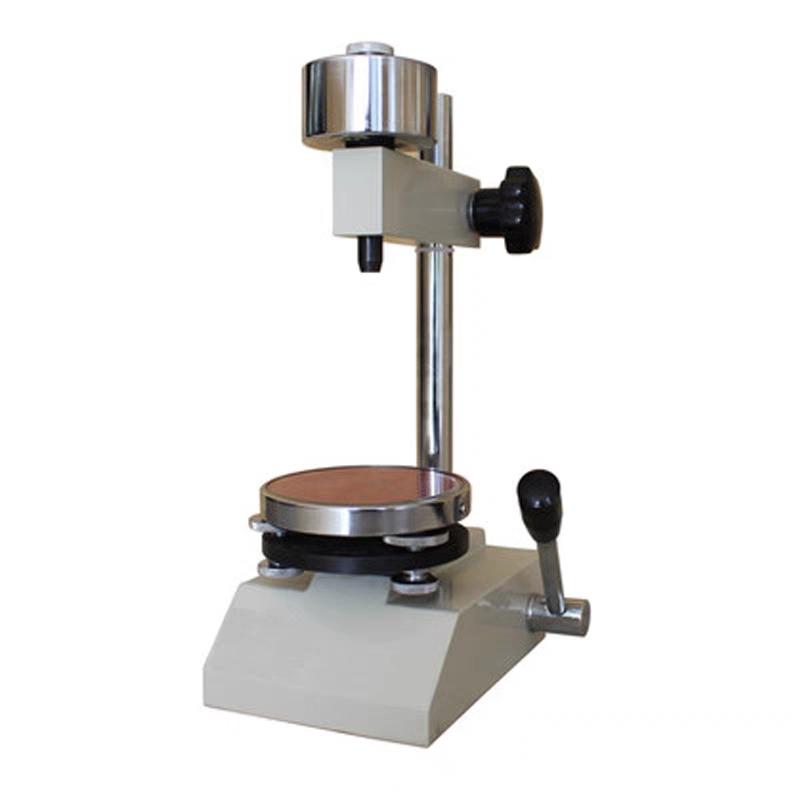

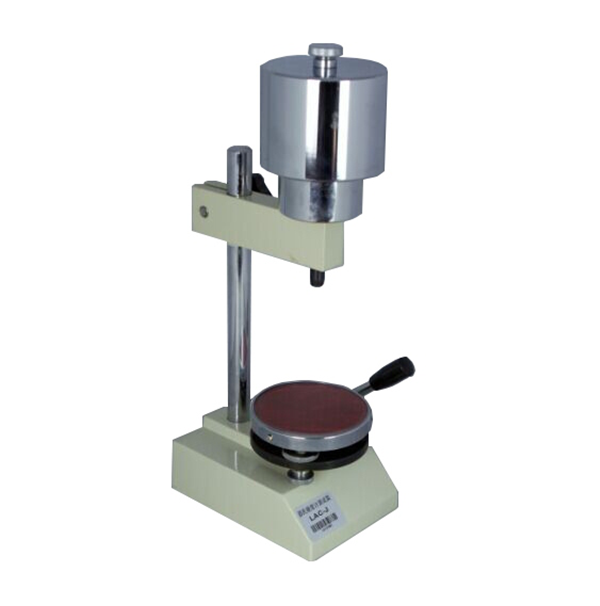

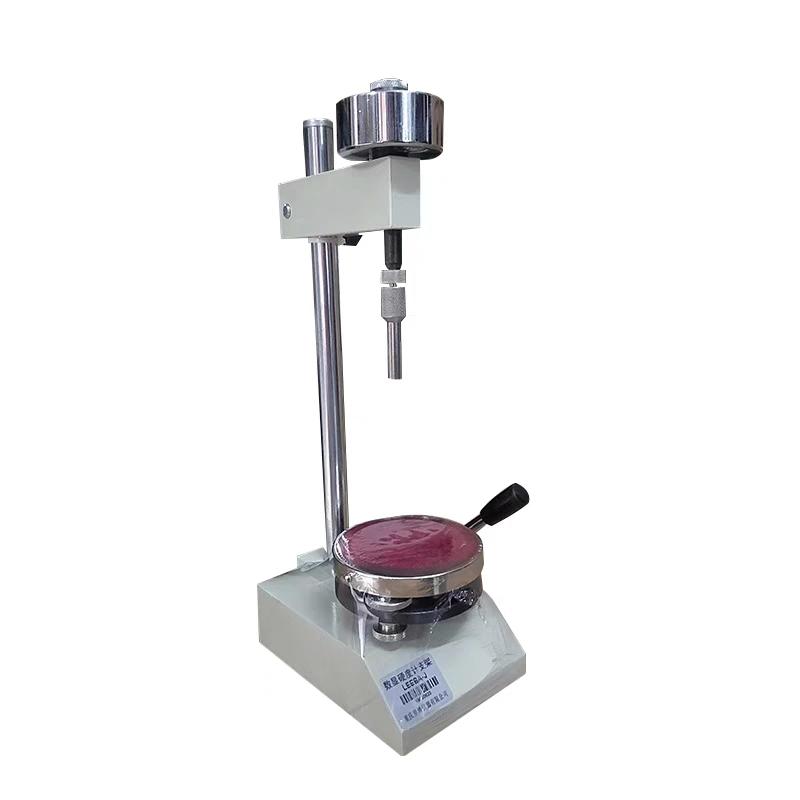

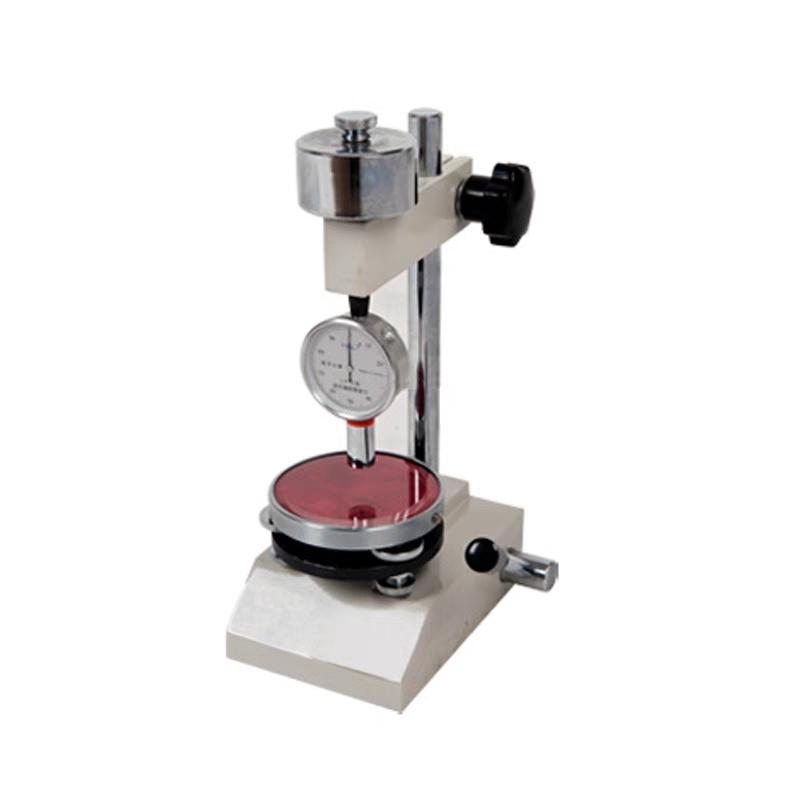

Test Rack Features

◆ The Hardness Tester test rack is specially used for clamping the Hardness Tester to measure the hardness value;

◆ The test frame is equipped with a rotary handle, a fixed load weight, an adjustable glass table, a clamping cross arm of a Hardness Tester and a lifting column, which can facilitate and accurately measure the hardness value;

◆ Maximum space: ≤45mm;

◆ Dimensions: 165*145*350mm;

◆Net weight: 5.2KG;

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
