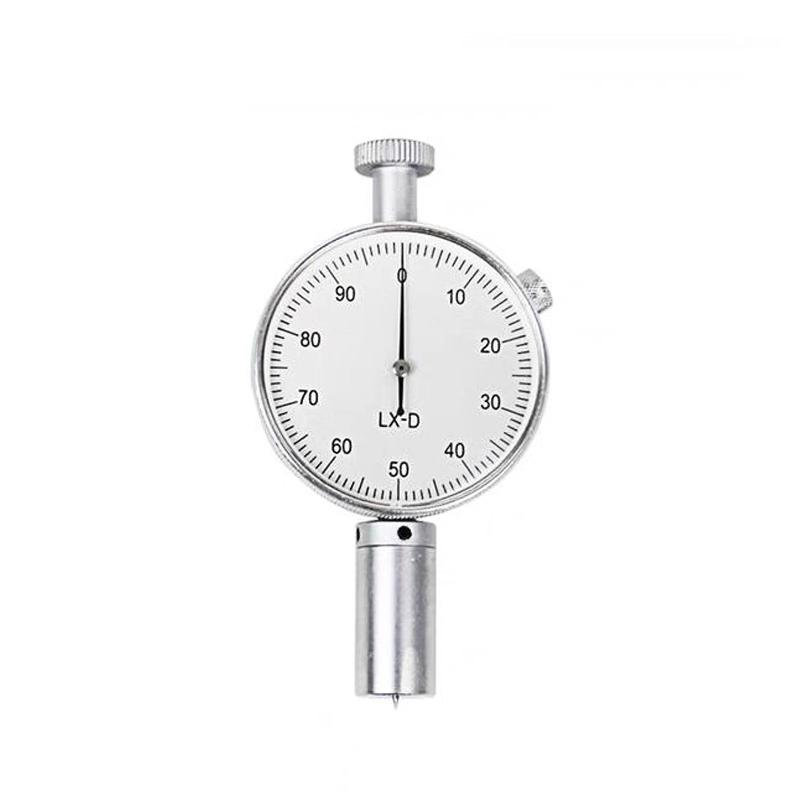

LEEB LX-D Pointer Shore Durometer Measurement range 20~90HD

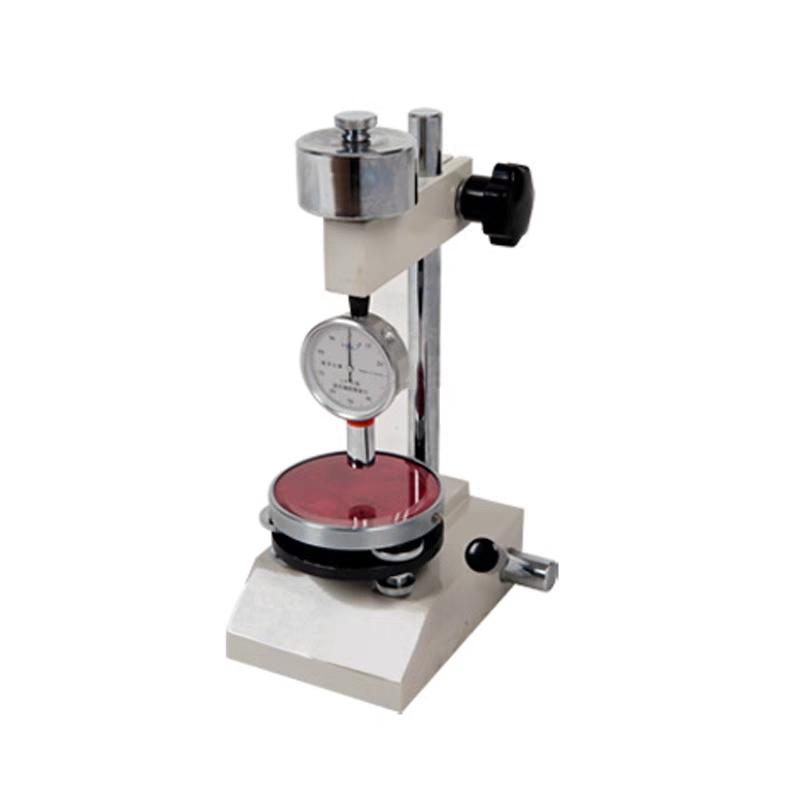

LX-D (with test stand)

Shore Shore Durometer

Measurement range 20~90HD, pressing needle stroke 2.5mm, in line with the national GB/T531-1999 standard, suitable for hard rubber, hard Resin, Glass, thermal plasticity plastic.

Overview

LX-D Shore D Hardness Tester is suitable for hardness testing of hard rubber, hard resin, glass, thermoplastic, printing board, fiber, acrylic and other high-commercial hardness materials. This product meets the requirements of national GB/T531-1999 standard and other related standards.

◆ Dial value: 0~100HD

◆ Recommended measurement range: 20~90HD

◆ Needle stroke: 2.5mm

◆ Size of crimping head: SR 0.1mm

How to use

Place the pattern on a firm plane, hold the Hardness Tester, and press the pressing pin on the sample smoothly at least 12mm away from the edge of the sample, so that the pressing pin is pressed vertically into the sample until the pressing foot and the sample are completely in contact. Reads within 1S. Test the hardness value 5 times at different positions at least 6mm apart from the measuring points, and take the average value (at least 15mm apart from the measuring points of microporous material).

In order to stabilize testing conditions and improve the test accuracy, the Hardness Tester device should be measured on the same type of measuring rack produced by the company.

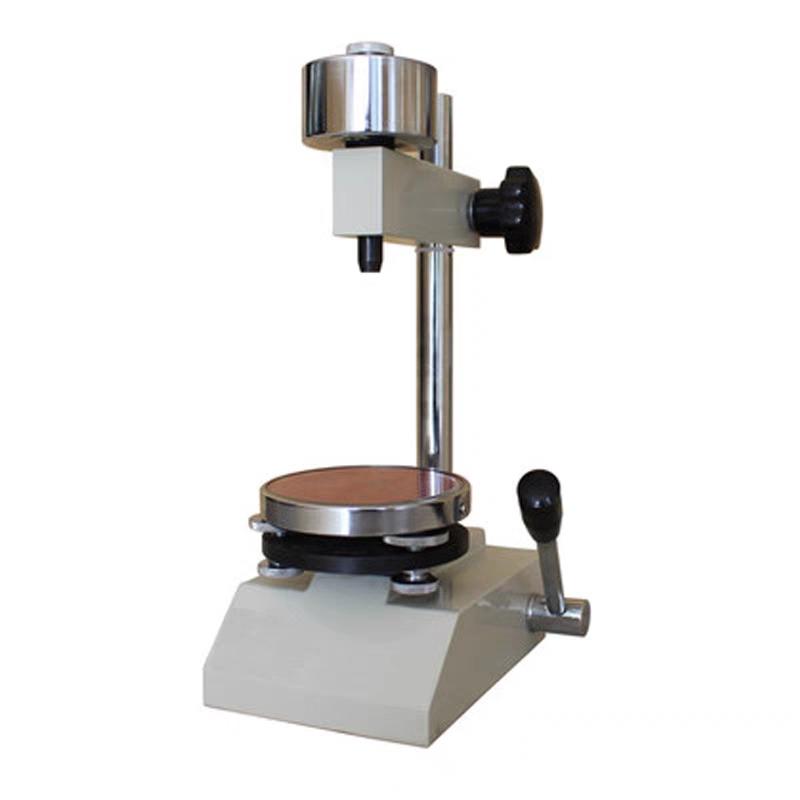

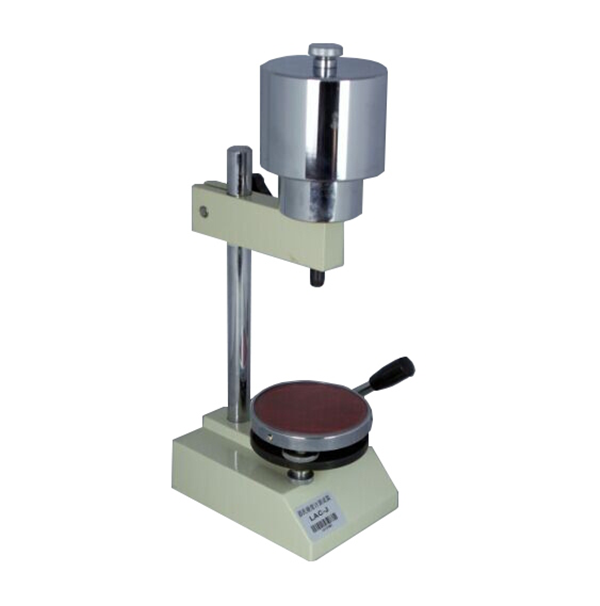

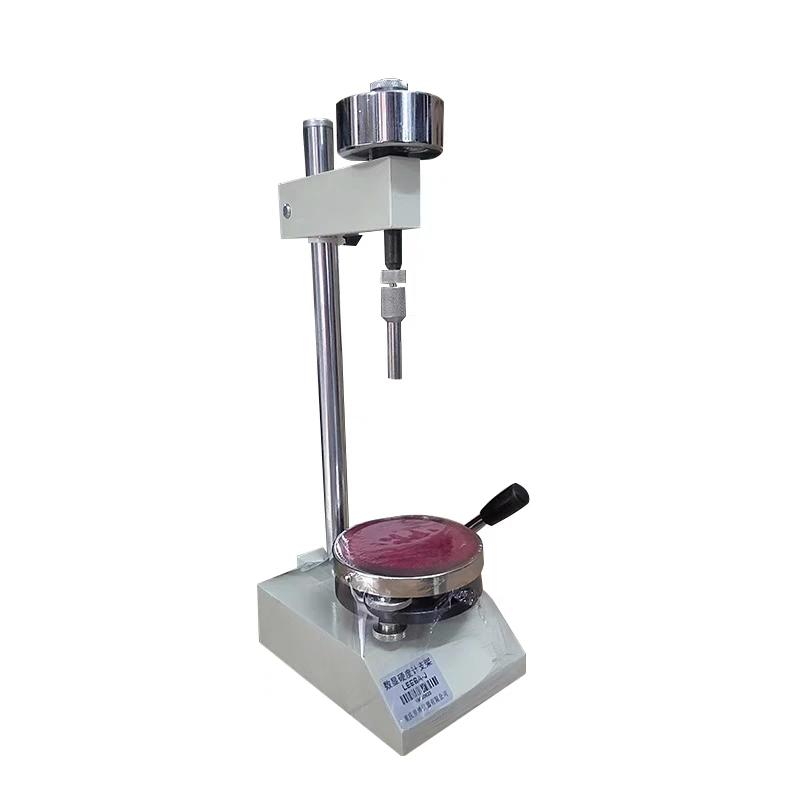

Optional Accessories - Test Stand

◆ The Hardness Tester test stand is specially used to clamp the Hardness Tester to measure the hardness value;

◆ The test stand is equipped with a pressing handle, a fixed-load weight, an adjustable glass workbench, a Hardness Tester clamping cross arm and a lifting column, which can easily and accurately measure the hardness value;

◆ Maximum space: ≤ 45mm;

◆ Dimensions: 165 * 145 * 350mm;

◆ Net weight: 5.2KG;

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
