KORNO GT2000-YH-O2 Multifunctional Oxygen Analyzer
GT2000-YH-O2
KORNO GT2000-YH-O2 Multifunctional oxygen analyzerSPEC
KORNO GT2000-YH-O2 Multifunctional oxygen analyzerDetails

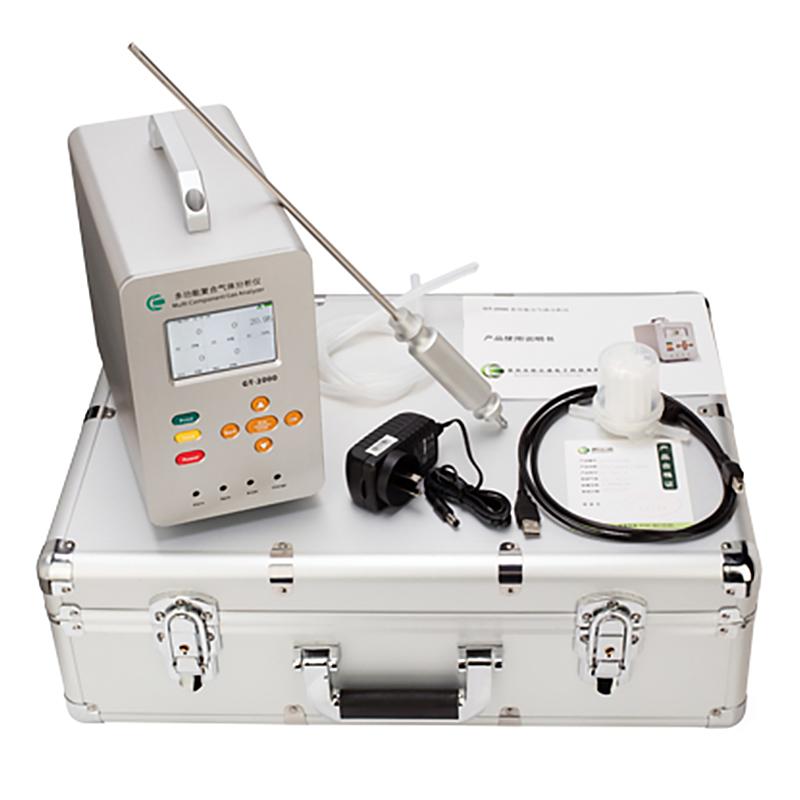

KORNO GT2000-YH-O2 Multifunctional oxygen analyzerPacking list
- SKU
- NB043871
- Detect gas
- Oxygen (O2)
- Expansion gas
- Optional 1-12 different gases, any combination of various types of Sensors, please check the relevant Gas Detector for specific Sensors parameters
- Detection method
- Pump suction type, built-in powerful vacuum pump, Flow velocity: 500L/min, the maximum pumping distance is more than 30 meters, and it can work in a micro-negative pressure environment
- Measurement range
- 0-1000, 2000, 5000, 10000, 50000PPM, 10%, 25%, 100% VOL optional (depending on the specific Sensors)
- Resolution
- 1ppm、0.01%VOL
- Detection Accuracy
- O2 ≤±1%
- Response time
- ≤ 15 seconds (T90)
- Linearity
- ≤±1%
- Zero drift
- ≤±1%（F.S）
- Repeatability
- ≤±1%
- Calibrated mode
- Adjustment of six target points to fully ensure the Accuracy and linearity of measurement
- storage mode
- Real-time storage, Timer storage can be set; 100000 groups of data can be stored, and historical data can be viewed on the screen
- Print mode
- Optional micro printer print data, can be set: print cycle, automatic printing, manual printing
- Air pump mode
- Standard mode, vacuum mode can be set; can work in micro negative pressure environment, will not affect Sensors
- Explosion-proof sign
- ExdII CT6 (Intrinsically Safe Type)
- Protection level
- IP66
- Power
- 6000mA rechargeable lithium battery
- shell material
- Pure aluminum + wire oxidation
- Operating humidity
- ≤ 95% RH, non-condensing
- Working pressure
- -20Kpa ～ 100Kpa
- Sensors
- Imported electrochemistry Oxygen Sensors
- Weight
- 2.5 Kg (Net Weight)
Overview
GT2000-YH-O2 is suitable for oxygen gas concentration detection in various industrial environments and special environments, the instrument adopts imported electrochemical oxygen gas sensor and microcontroller technology, fast response, high measurement accuracy, good stability and repeatability, various parameters can be set by users, and the operation is simple. The interior adopts 6000mA large-capacity nickel-metal hydride rechargeable battery, ultra-long standby, and 3.5-inch high-resolution industrial color screen to display various technical indicators and gas concentration values of the instrument, which can intuitively view historical data on the screen and have data printing.
Features
Ultra-low power 32-bit microprocessor and 24-bit ADC data acquisition chip using semiconductor nano process;
It adopts a 3.5-inch industrial-grade color screen with a resolution of 320x480, and automatically detects the working status of sensors, main chips and components after booting;
PPM, %VOL, mg/m3 three concentration units can be switched freely, and the high-low range can be automatically switched;
Detect 1-6 kinds of gases at the same time, the sensor is optional at will, and the concentration and alarm status of various gases are displayed on the screen at the same time;
With data storage function, it can store 30800 groups of data, can intuitively view historical data on the screen, and can be equipped with micro printers to print data;
Built-in powerful Vacuum Pump,The pumping distance is up to 30 meters and can be usedWorking in a slight negative pressure environment, a reasonable air chamber design can ensure that the sensor is not disturbed by pressure;
In addition to detecting gas concentration, the instrument can also be equipped with: temperature and humidity sensors, micro printers;
It has the functions of over-Voltage protection, over-charge protection, short-circuit protection, anti-static interference, anti-magnetic field interference, etc.;
It has two detection modes of real-time detection and timing detection to meet the different needs of different occasions and users.
The whole software automatic calibration, up to 6 levels of sensor target point calibration function, to ensure the accuracy and linearity of the measurement, and with data recovery function;
Full Chinese operation menu, simple and practical, with a total of standard five-way buttons, 3 independent function shortcut buttons for on-site operation;
It has the function of temperature compensation in the full range of range, and has status indicators such as power supply, air pump, alarm, fault and so on.
