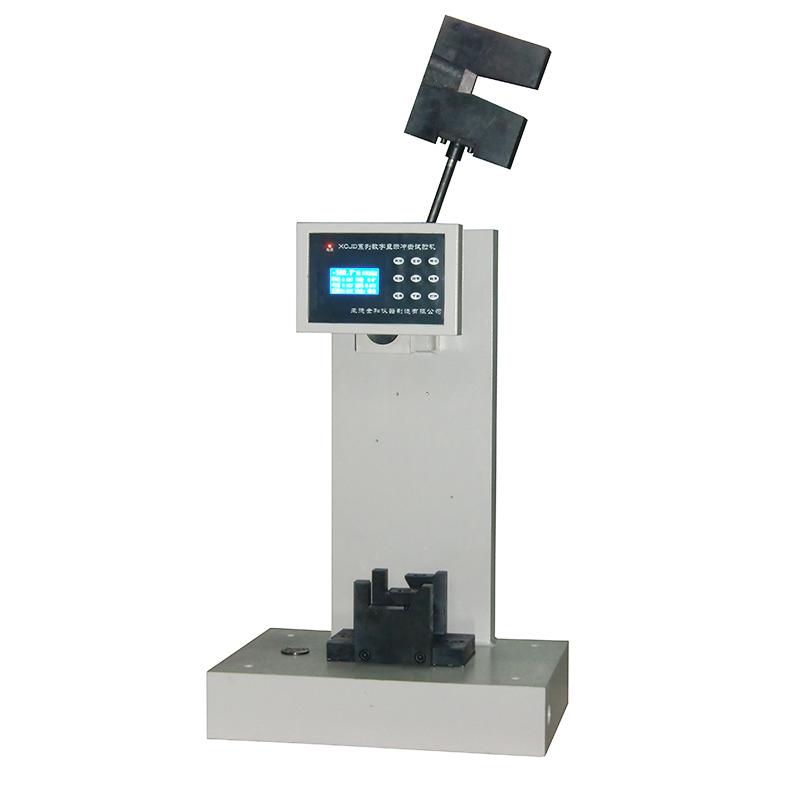

JINHE XCJD-5 Digital Display Simply Supported Beam Impact Tester

XCJD-5

Digital Simply Supported Beam Impact Tester

The impact speed is 2.9m/s, the strike center distance is 230mm, and the pendulum lift angle is 150 °. It is controlled by a single-chip microcomputer to automatically correct the energy loss caused by friction and wind resistance, and automatically calculate the impact strength of the sample.

Introduction

XCJD-5 digital display simply supported beam impact testing machine conforms to ISO179, GB/T1043, JB/T8762 and other standards, and is suitable for hard plastics, fiber reinforced composite materials, nylon, glass fiber reinforced plastic, ceramics, cast stone, asbestos board, electrical insulation materials and other non-metallic materials. Impact toughness testing, including machined samples and injection molded samples, is also suitable for notched and non-notched samples. It is a suitable testing equipment for chemical industry, scientific research units, colleges and universities, and quality inspection departments.

The XCJD-5 digital display simple-supported beam impact testing machine is improved on the basis of the pointer dial type simple-supported beam impact testing machine. It collects the swing angle and speed information of the pendulum by a high-precision rotary encoder, and calculates the sample by the pendulum energy. impact strength.

This instrument is intelligently controlled and stored by an embedded system, and the test process and results are set and displayed by a liquid crystal display and a matrix keyboard, thereby replacing the original dial pointer display method. Compared with the original dial Dial-Type, the angular resolution is high (up to 0.075 °), the display results are accurate and unquestionable, and the errors caused by human reading are eliminated. Intelligent control can automatically calculate the results, automatically eliminate wind resistance errors, and save multiple impact test results.

XCJD-5 digital display simply supported beam impact testing machine follows the national standard "1043-2008 Plastics, Determination of Impact Properties of Simply Supported Beams" and the international standard "ISO179:2000 Determination of Impact Strength of Plastic Simply Supported Beams" for simply supported beams. At the same time, each instrument is inspected in strict accordance with the standard "GB/T 21189-2007 Inspection of Plastic Simply Supported Beams, Cantilever Beams and Pendulum Impact Testing Machines for Tensile Impact Testing" to ensure the accuracy and service life of the product.

Product Features

This machine adopts single-chip microcomputer control, liquid crystal Chinese display, flexible and convenient operation, and high control precision.

Automatically corrects energy losses from friction and wind resistance, eliminating the need for manual calculations.

The corrected sample absorbs energy directly, which improves the accuracy and efficiency of the test.

By setting the sample size, the impact strength of the sample is automatically calculated after each impact test is completed.

After each group of tests is completed, the average impact energy and average impact strength of the group of samples are automatically calculated and displayed.

After each group of experiments is completed, the test results can be saved with one click, which is convenient for future reference.

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
