CHINA QXD-25 zirconia ceramic fineness gauge double-channel Fineness gauge 0~25μm

QXD-25

Double-channel Fineness Meter of zirconia ceramics

Double-channel, zirconia ceramic material, suitable for heavy corrosion materials, range 0-25μm, Graduation 1.25μm, there are three units of μm, Hegman, mils, groove size 140 × 12.5mm.

Introduction

The scraper Fineness Meter is an instrument used to measure the particle size distribution or particle size of coatings, inks, pigments, cosmetics and other substances. It is done by coating the sample on a flat substrate and then using a scraper to scrape the material flat. The particle size and dispersion of the sample are evaluated based on the thickness of the material remaining on the scraper or the distribution of the particles.

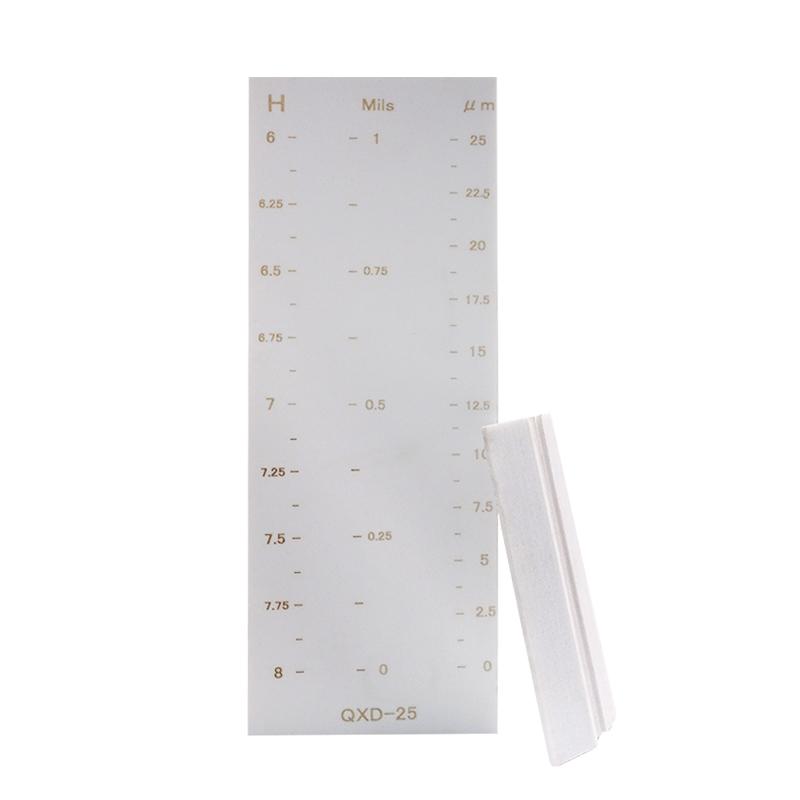

The domestic (CN) QXD-25 zirconia ceramic Fineness Meter is a standard double-slot scraper Fineness Meter with a range of 0~25μm and a groove size of 140×12.5mm. It is made of zirconia ceramic and is specially used for testing heavy corrosion materials. Fineness.

Advantages of zirconia ceramic material

1. Hardness and wear resistance: Zirconia ceramics has high hardness and wear resistance, allowing it to maintain a flat and stable surface during the measurement process, thereby improving measurement accuracy and repeatability.

2. Chemical stability: Zirconia ceramics have good stability to many chemicals and are not susceptible to corrosion or chemical reactions, which gives it an advantage in measurements involving chemical samples.

3. High-temperature stability: Zirconia ceramics have good stability and tolerance in high-temperature environments and are suitable for applications that require measurements under high-temperature conditions.

4. Insulating properties: Zirconia ceramics have good insulating properties and can be used in electrical and electronic fields.

Applications

It is used to test highly corrosive materials in coatings, paint pastes, plastics, inks, papers and other fields.

Packing list：Scraper X1, doctor blade X1, certificate X1, manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
