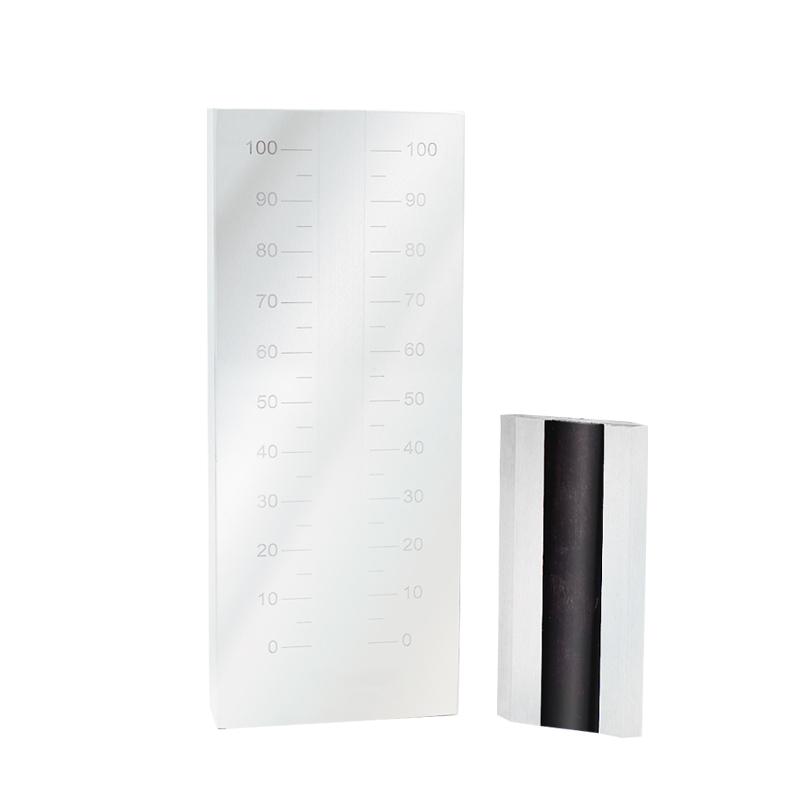

CHINA QXD-50 Zirconia Ceramic Fineness gauge single-channe Fineness gauge 0~50μm

QXD-50

Single-channe fineness gauge of zirconia ceramics

Single-channe, zirconia ceramic material, suitable for heavy corrosion materials, range 0-50μm, Graduation 2.5μm, there are three units of μm, Hegman, mils, groove size 140 × 12.5mm.

Introduction

The scraper Fineness Meter is an instrument used in a laboratory environment to evaluate the fineness of particles such as pigments, inks, paints, and color pastes. It consists of two parts: a scraper and a scraper. By carving one or two grooves of different depths on the scraper, the scraper is then used to scrape off the test sample from deep to shallow, and the particle fineness is observed with the naked eye. This method is based on physical principles and is relatively simple.

The domestic (CN) QXD-50 zirconia ceramic Fineness Meter is a standard single-slot scraper Fineness Meter with a range of 0~50μm and a groove size of 140×12.5mm. It is made of zirconia ceramics and is specially used for testing heavy corrosion materials. Fineness.

Advantages of zirconia ceramic material

1. Hardness and wear resistance: Zirconia ceramics has high hardness and wear resistance, allowing it to maintain a flat and stable surface during the measurement process, thereby improving measurement accuracy and repeatability.

2. Chemical stability: Zirconia ceramics have good stability to many chemicals and are not susceptible to corrosion or chemical reactions, which gives it an advantage in measurements involving chemical samples.

3. High-temperature stability: Zirconia ceramics have good stability and tolerance in high-temperature environments and are suitable for applications that require measurements under high-temperature conditions.

4. Insulating properties: Zirconia ceramics have good insulating properties and can be used in electrical and electronic fields.

Applications

It is used to test highly corrosive materials in coatings, paint pastes, plastics, inks, papers and other fields.

Packing list：Scraper X1, doctor blade X1, test report X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
