LEEB211 coating Film Thickness Gauge Eletroplating, chemical industry, shipbuilding, light industry, automobile and other fields

SE
Measurement range 0~1250μm, error range +/- 3%, resolution 0.1μm, widely used in chemical industry, light industry, Eletroplating, anti-corrosion, automotive, shipbuilding, aerospace, aviation, commodity inspection and other fields.
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT
Similar products

Leeb leeb211 Coating Thickness GaugeSPEC

Leeb leeb211 Coating Thickness GaugeDetails

Leeb leeb211 Coating Thickness GaugePacking list

SKU
NB004392
Measurement principle
eddy current
Measuring range
0 ~ 1250µm
margin of error
±3%
resolution
0.1µm
Minimum measurement surface
F7mm
Minimum radius of curvature
Convex 1.5mm
thinnest matrix
0.5mm
probe
N1 split probe (non-pluggable)
icon function
without
Power
2 * AAA alkalinity battery
Calibrated Certificate
without
Language
Chinese
Display screen
LCD
supporting software
without
Total Weight
195g
Complete-built unit size
115*70*30mm
Operating Temperature
0~40℃
Relative Humidity
20~90%RH
leeb211
Coating Thickness Gauge
Measurement range 0~1250μm, error range +/- 3%, resolution 0.1μm, widely used in chemical industry, light industry, Eletroplating, anti-corrosion, automotive, shipbuilding, aerospace, aviation, commodity inspection and other fields.

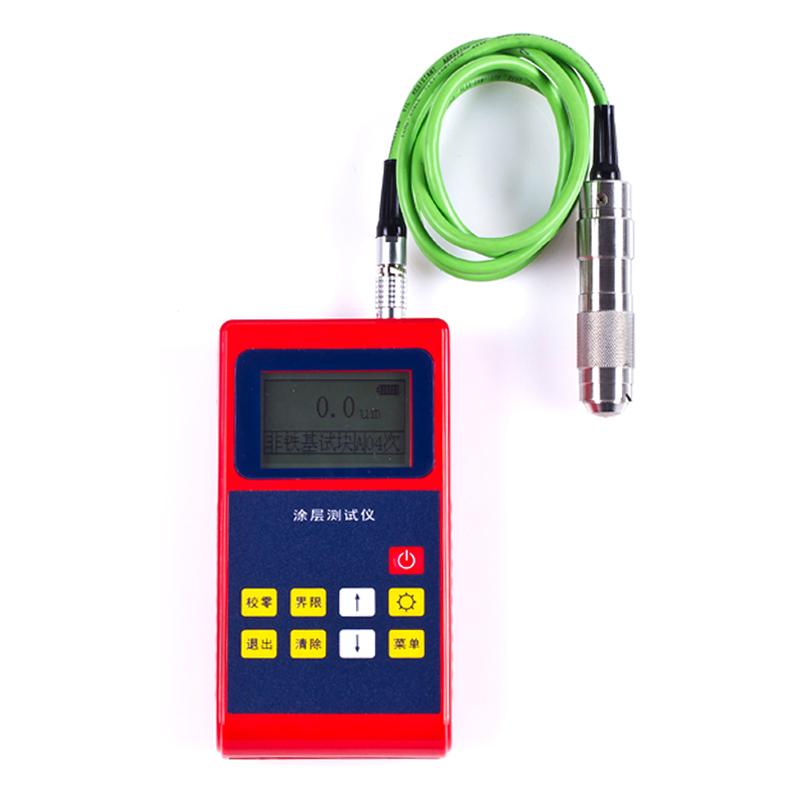

LEEB211 coating Film Thickness Gauge Eletroplating, chemical industry, shipbuilding, light industry, automobile and other fields Picture

Coating Thickness Gauge Selector

Introduction

Leeb leeb211 coating Thickness Gauge is a non-destructive testing instrument for measuring coating thickness. It adopts the principle of eddy current thickness measurement. The measured film thickness ranges from 0 to 1250 microns. a calibration method.

Leeb211 Coating Thickness Gauge can detect the thickness of non-conductive insulating covering layer on non-magnetic metal substrate (such as rubber, plastic, paint, oxide film on aluminum, copper, zinc, tin, etc.).

Features

1) Two Operating Modes: direct mode and group mode conversion.

2) Display the last reading after power on.

3) Leeb211 coating Thickness Gauge has the function of measuring data storage.

4) Two measurement methods: single measurement and continuous measurement (quickly obtain readings in a large area) conversion between metric and imperial.

5) All Chinese operation interface, menu interface.

6) With manual and automatic shutdown functions.

7) Various calibration methods, with measurement data storage function.

8) It has the function of deleting measurement data (delete the current measurement value, delete the measurement data of the current group, delete all the data of the current group).

Applications

Leeb211 coating Thickness Gauge can be widely used in chemical industry, light industry, electroplating, anti-corrosion, automobile, shipbuilding, aerospace, aviation, commodity inspection and other testing fields. It is suitable for laboratories and engineering sites, and is a required instrument for the non-destructive testing industry.

Pictures

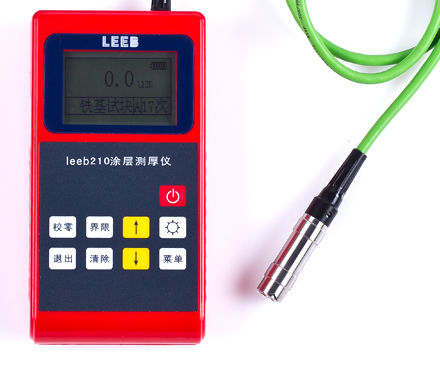

Libo leeb210/leeb211 coating Thickness Gauge photo 1

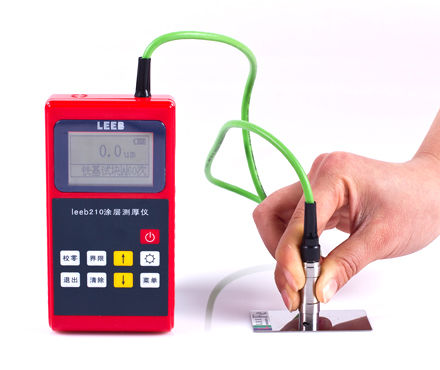

Libo leeb210/leeb211 coating Thickness Gauge photo 2

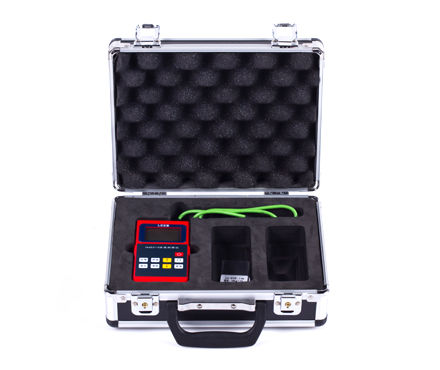

Libo leeb210/leeb211 coating Thickness Gauge photo 3

FAQ
QIs this leeb211 thickness gauge rechargeable or battery?
A Hello, it is a 2 * AAA alkaline battery.
QWhat is the film thickness range of Leeb211 measurement?
A Hello, the film thickness measurement of the leeb211 coated film thickness gauge is 0~ 1250 microns.
QIs this Coating thickness gauge ASTME376 compliant?
A Coating thickness gauge applies to ASTME376, please consult customer service for detailed application definition
QWhat is the difference between leeb211 and leeb210 coated film thickness gauge?
A Hello, the main difference between this one and 210 is that 210 uses the working principle of magnetic induction, while 211 uses the working principle of eddy current. There is still a big difference in essence.
