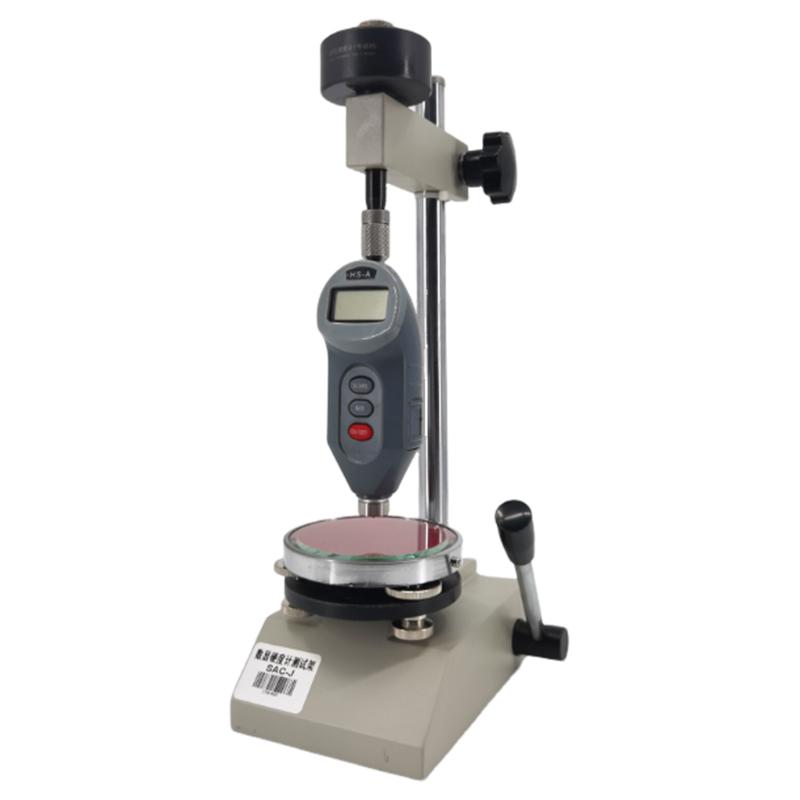

Hypertherm HS-A digital display Shore A type rubber durometer with test bracket

HS-A+SAC-J

Digital Shore A rubber durometer

Measurement range 0-100HA, resolution 0.1HA, measurement error within 20-90HA, with underVoltage alarm indication function, with test bracket.

Introduction

A Shore Hardness Tester, also known as a Shore hardness meter, is a device used to measure the hardness of a material. It is based on the principle of Shore hardness testing, which determines the hardness of a material by applying a certain load to the surface of the material and then measuring the diameter of the indentation. Shore Hardness Testers are commonly used in hardness testing of metal materials and alloys, and can evaluate properties such as hardness, strength and wear resistance of materials.

The basic principle of Shore Hardness Tester is to use a drill or spherical head to press into the surface of the material under a certain load, and then measure the diameter of the indentation. According to the relationship between the diameter of the indentation and the load, the hardness value of the material can be determined by looking up a table or calculating. Shore Hardness Testers usually have different hardness scales, such as A, B, C, etc., which are suitable for different types of materials and hardness ranges.

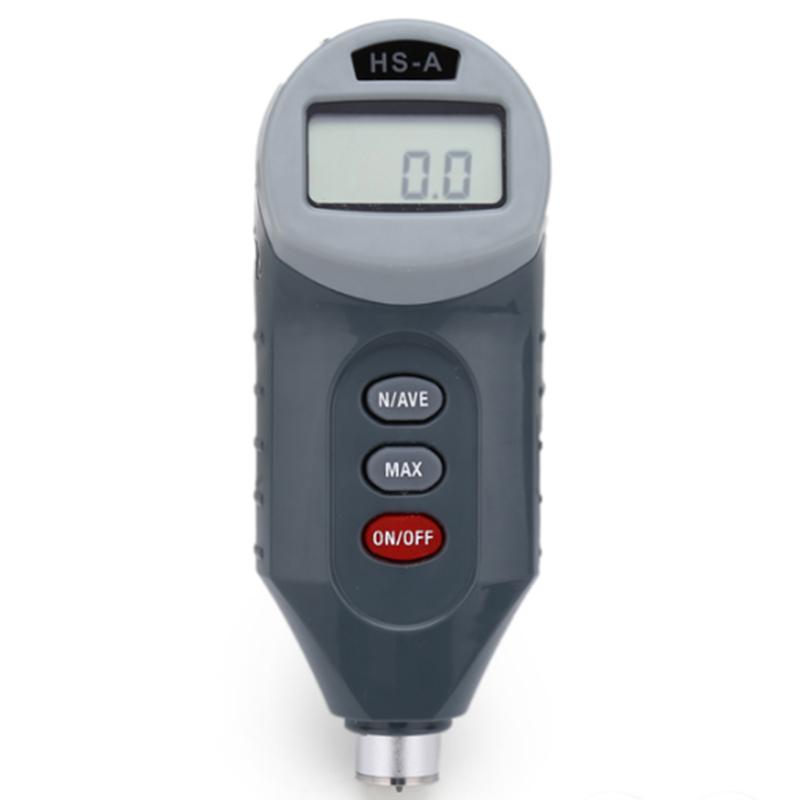

HS-A is a digital Shore A type rubber Hardness Tester. It is suitable for hardness measurement of plastics (such as films, medical equipment, etc.), synthetic rubber (such as seals, tires, rubber rollers, hoses/tapes, wires and cables, shock absorbers, etc.) and other related chemical products.

Product Features

• With peak latch function, the peak lock time can be set for easy reading

• Average calculation function, the number of measurements can be set

• Fast switching between maximum peak and real-time value modes

• The peak reading seconds can be set to meet the verification standards of various materials

• UnderVoltage alarm indication function

• Automatic shutdown and manual shutdown function

• Computer communication function, using RS232 data cable output (optional accessories)

• SAC-J digital Hardness Tester bracket

Product application

The SAC-J Hardness Tester test stand can be equipped with different fixed-load weights, which are specially used to clamp HS-A, HS-C, HS-AO Hardness Testers to measure hardness values. The test stand is equipped with a pressing handle, fixed-load weights, an adjustable glass table, a Hardness Tester clamping cross arm and a lifting column, which can easily and accurately measure the hardness value.

Product Features

The digital Hardness Tester test stand is specially used to clamp the digital Hardness Tester to measure the hardness value.

The test stand is equipped with a tilting handle, a fixed load weight, an adjustable glass platform, a Hardness Tester clamping cross arm and a lifting column, which can easily and accurately measure the hardness value.

Maximum space: ≤ 40mm

Dimensions: 165 * 145 * 380mm

Net weight: 5.2KG

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
