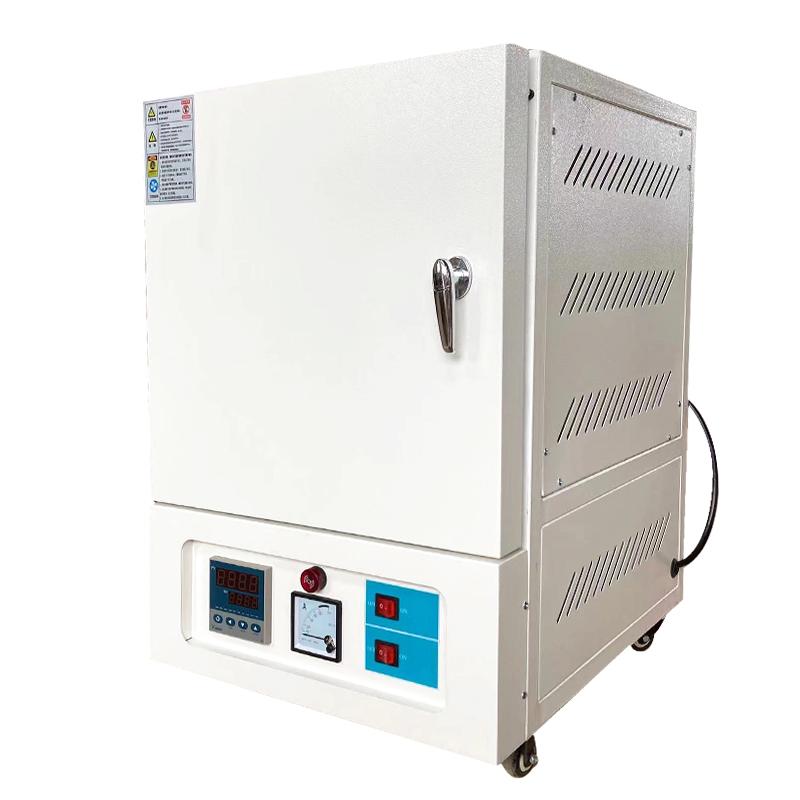

BOZHEN BZ-12-14TC LABOratory muffle furnace 1400 ℃/36L

BZ-12-14TC

High temperature muffle furnace

The furnace adopts high-quality 1600 aluminum oxide polycrystalline fiber, silicon carbide rod heating element, the maximum temperature is 1400 ℃, the furnace size is 400mm * 300mm * 300mm, and the Rated power is 12kw.

Introduction

The box-type experimental electric furnace is made of high-quality silicon carbon rod as the heating element, the intelligent temperature control system, the thyristor control, the phase shift trigger, the furnace is made of high-quality 1600 alumina polycrystalline fiber inorganic material formed by vacuum adsorption of Japanese technology, the furnace body is a double-layer furnace shell, the current popular air insulation technology with thermal induction technology is used to drive the intelligent air cooling system, and the soft start constant current control is adopted to prolong the life of the heating element.

Features

• The furnace is made of high-quality 1600 type alumina polycrystalline fiber inorganic material formed by vacuum adsorption, which has good thermal insulation performance, durability, high tensile strength, no trash balls, high purity, can improve the reflectivity and heating efficiency of the furnace, and prolong the service life of the furnace at the same time, and the energy-saving effect is significantly better than that of domestic (CN) fiber materials;

• The heating element is made of high-quality silicon carbon rod, which has high heating efficiency and long service life;

• The furnace is equipped with a breathing hole, which can reduce the shrinkage of the furnace and prolong the service life of the furnace.

• Side-opening furnace door, with the function of opening the door and power-off;

• The data conversion interface is reserved, which is interconnected with the computer to realize the functions of remote control, real-time tracking, historical record, and output report of a single or multiple electric furnaces;

• It has the function of over-temperature alarm power-off and leakage protection measures, and the operation is safe and reliable.

Applications

Universities, scientific research institutes, and industrial and mining enterprises are used for powder roasting, ceramic sintering, high-temperature experiments, material processing, and quality testing.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
