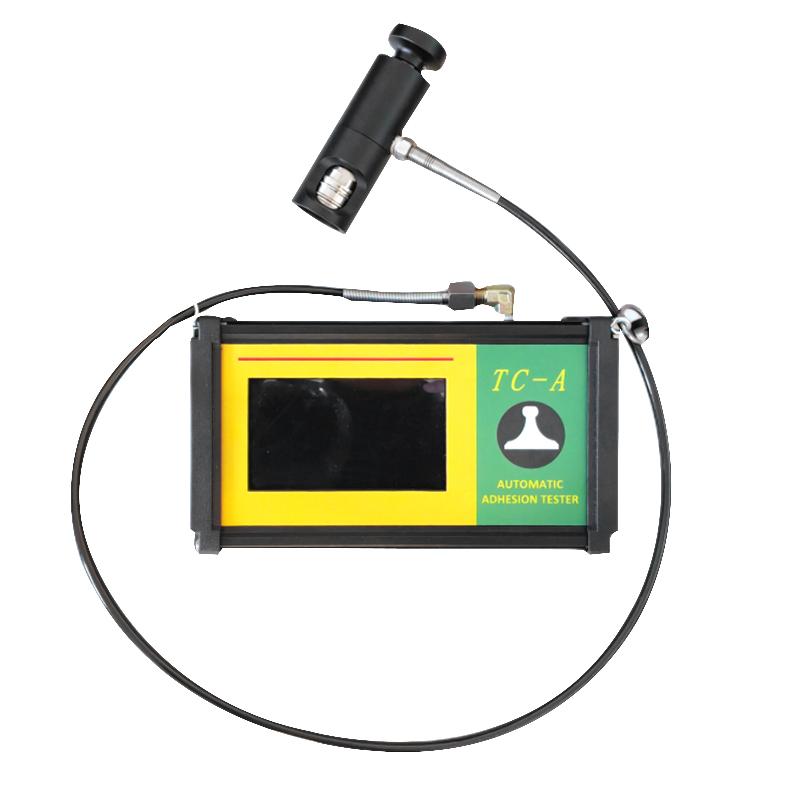

TIANDIXINGHUO TC-A20 Automatic Adhesion Tester with 20mm kit

TC-A20

Automatic Adhesion Tester

Using 1280 * 720 high definition IPS touch display, kit size 20mm, Measurement range 0-22.3MPa, Display resolution 0.001MPa, support kN/Mpa/Psi three display Unit switch.

Introduction

The TC-A automatic pull-out adhesion Tester can measure the adhesion of metal, concrete and other material coatings. The Principle of the instrument is to use the hydraulic system to detach the coating of a certain diameter on the surface of the tested substrate to measure the adhesion of the coating. The multi-functional touch LCD of the Tester displays the adhesion detection process in MPa or kN or Psi. The product is designed and manufactured according to relevant international and Chinese standards, and has stable performance.

Product Features

• 1280 * 720 high definition IPS touch display.

• Automatic conversion result, spindle size 10mm.

• Electric loading, adjustable speed.

• KN/Mpa/Psi three display units.

• The memory card stores data, and the computer can view the data online.

• Bluetooth printer can print test data (optional).

• Pulling force value - time curve display.

• A large-capacity memory card that can store 100,000 pieces of data.

• Load setting, no need to destroy the detection surface after passing the test.

• The data is automatically stored, and the fastest 0.2S stores 1 data.

• The screen brightness is adjustable.

• Automatic shutdown can be set.

• Chinese and English display switching.

• Engineering plastic packing box, rainproof, dustproof and impact-proof.

Meet the standard

ISO 4624 Paints and varnishes-Pull-offtest for adhesion

ASTM D 4541 "StandardTest Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers"

ASTM D7234 "Standard Test Method for Pull-OffAdhesion Strength of Coatings on Concrete Using Portable Pull-Off Adhesion Testers"

GB/T 5210-2006 "Adhesion test of paint and varnish by pulling apart method"

TB-T2965-2011 "Technical Conditions for Waterproof Layer of Railway Concrete Bridge Deck"

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
